Automatic Transmission Controls Schematics
Automatic Transmission Controls Schematics

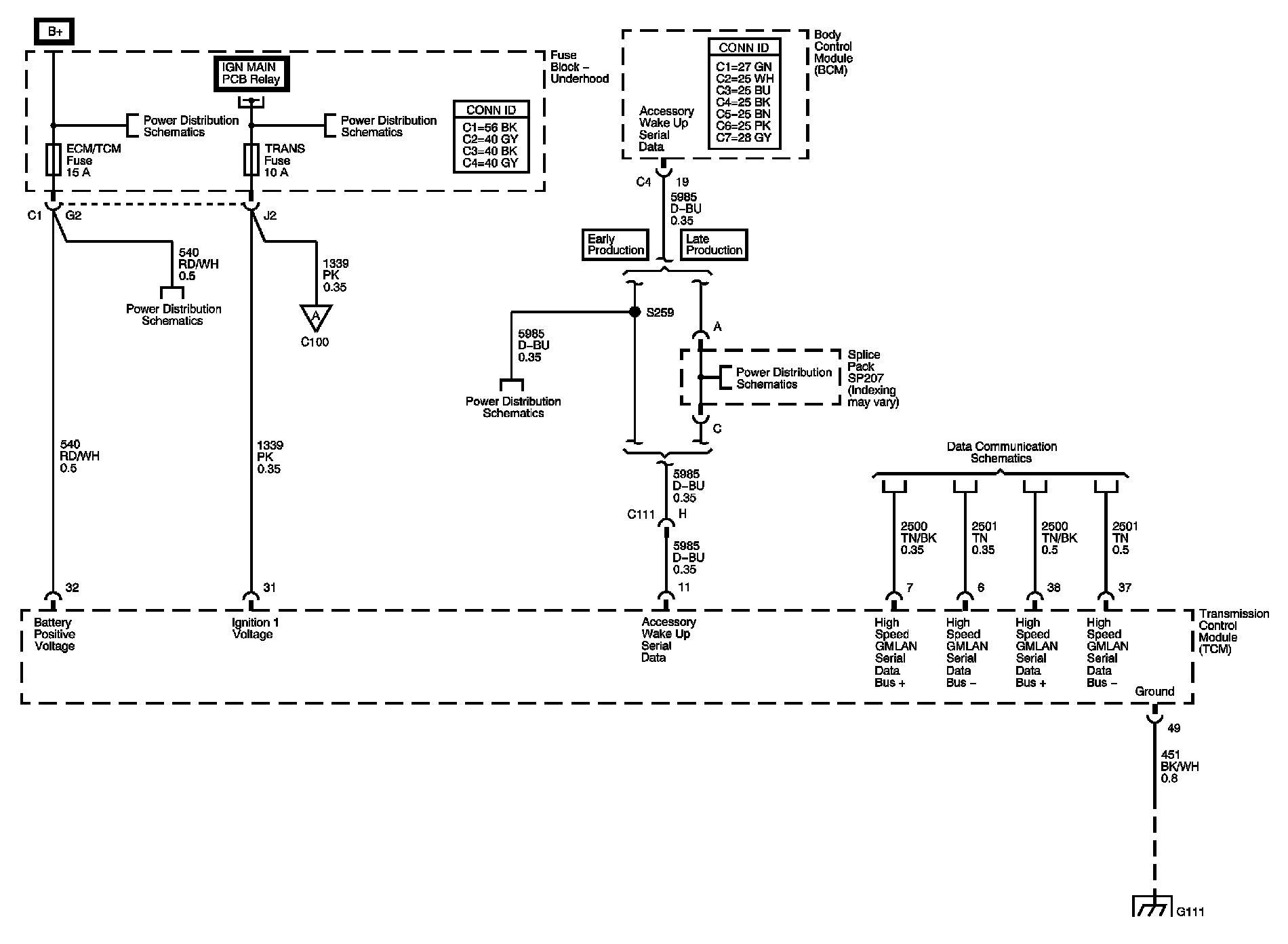

Power, Ground, and Serial Data

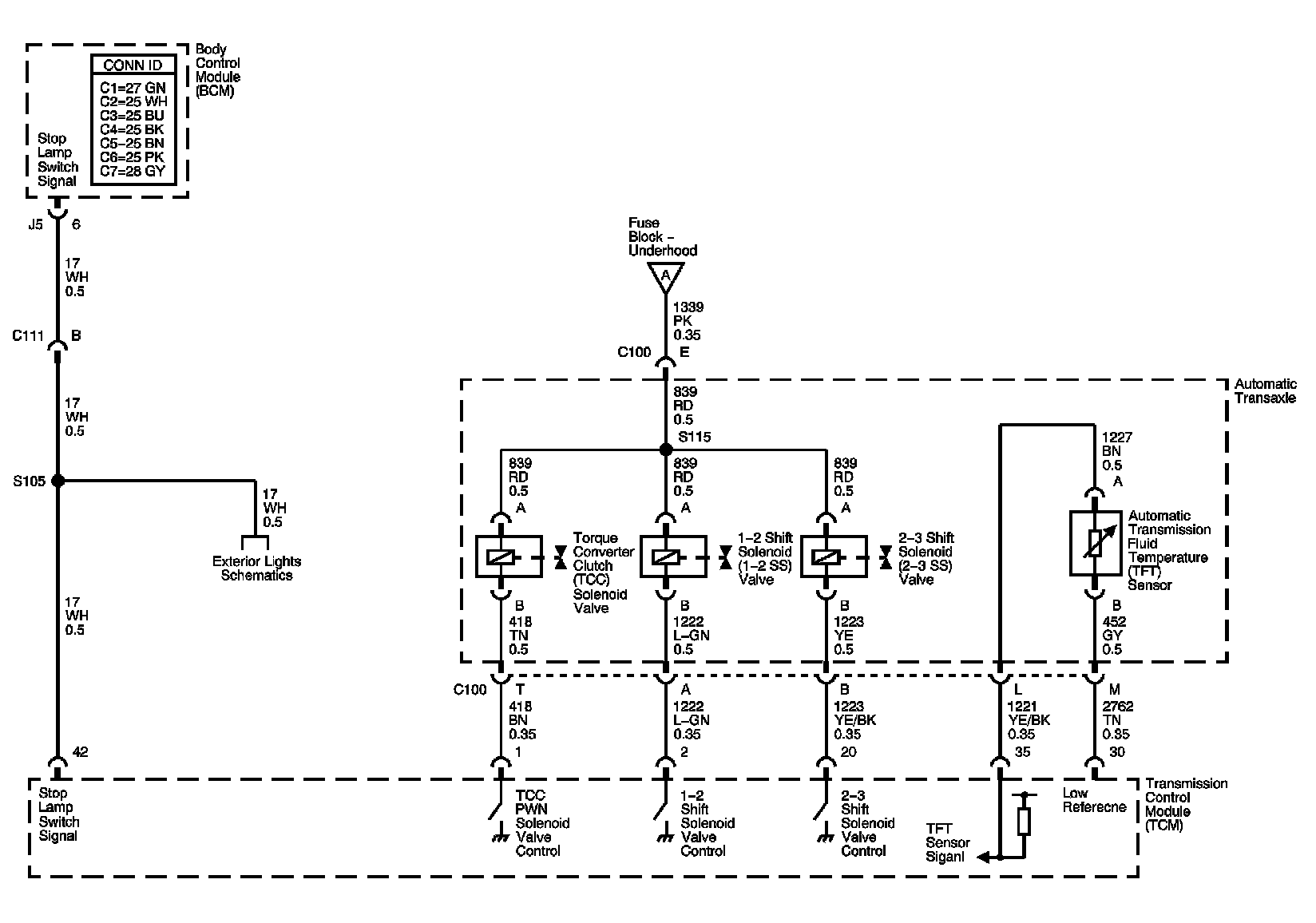

Automatic Transmission Controls Schematics 1:
Stop Lamp Switch Signal, TFT Sensor, TCC, and Shift Solenoids

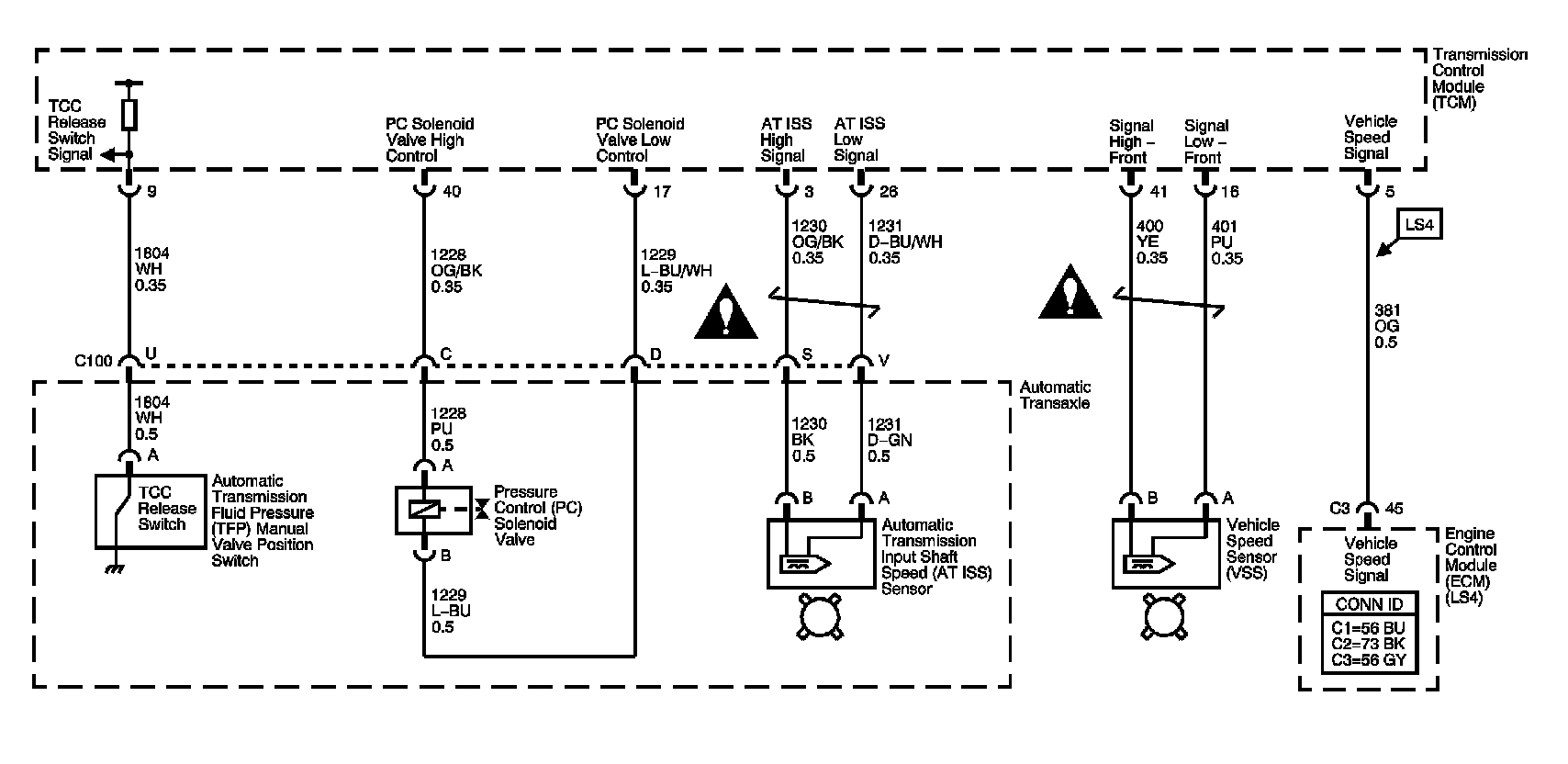

Automatic Transmission Controls Schematics 2:
VSS, AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch

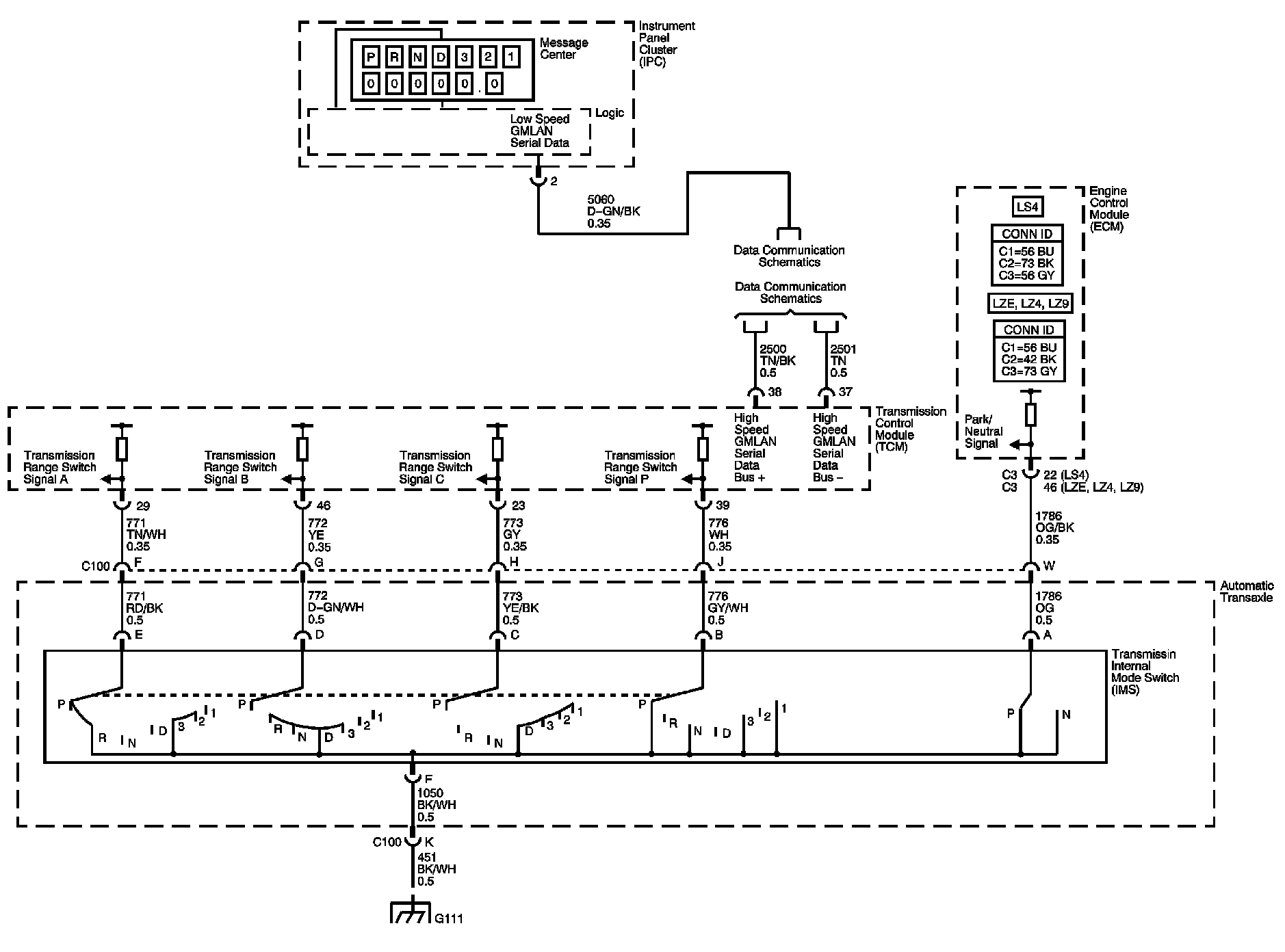

Automatic Transmission Controls Schematics 3:
PRNDL and IMS Switch
Automatic Transmission Controls Schematics 4:
