Seat Temperature Control Module: Locations

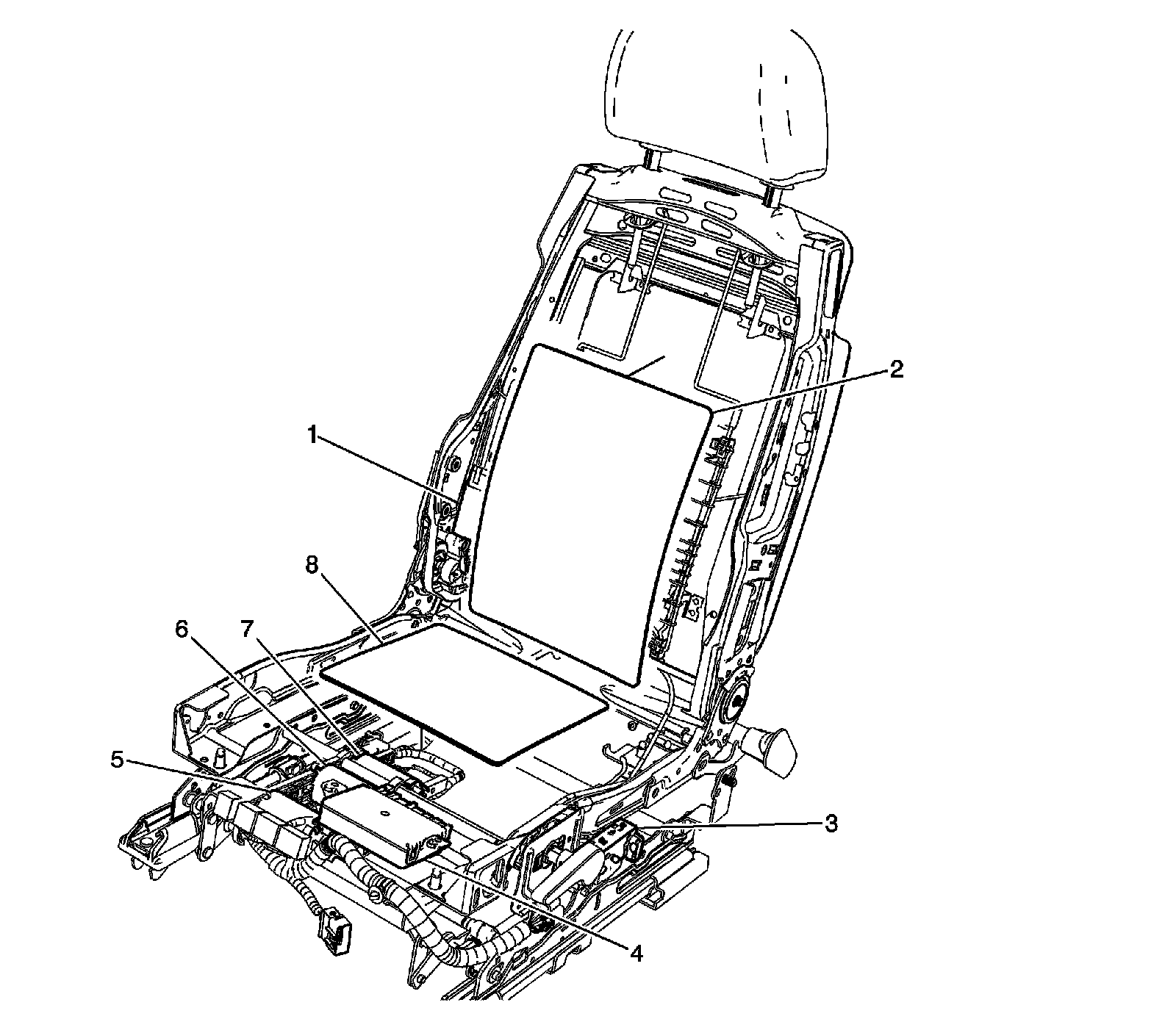

Heated/Cooled Seat Component Views

Driver Seat Components




1 - Seat Recline Motor - Driver (AH5)
2 - Heated Seat Element - Driver - Back (KA1)
3 - Seat Adjuster Switch - Driver
4 - Heated Seat Control Module (KA1)
5 - Horizontal Motor (Part of the Seat Adjuster Motor Assembly - Driver)
6 - Front Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver)
7 - Rear Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver)
8 - Heated Seat Element - Driver - Seat (KA1)
