G404

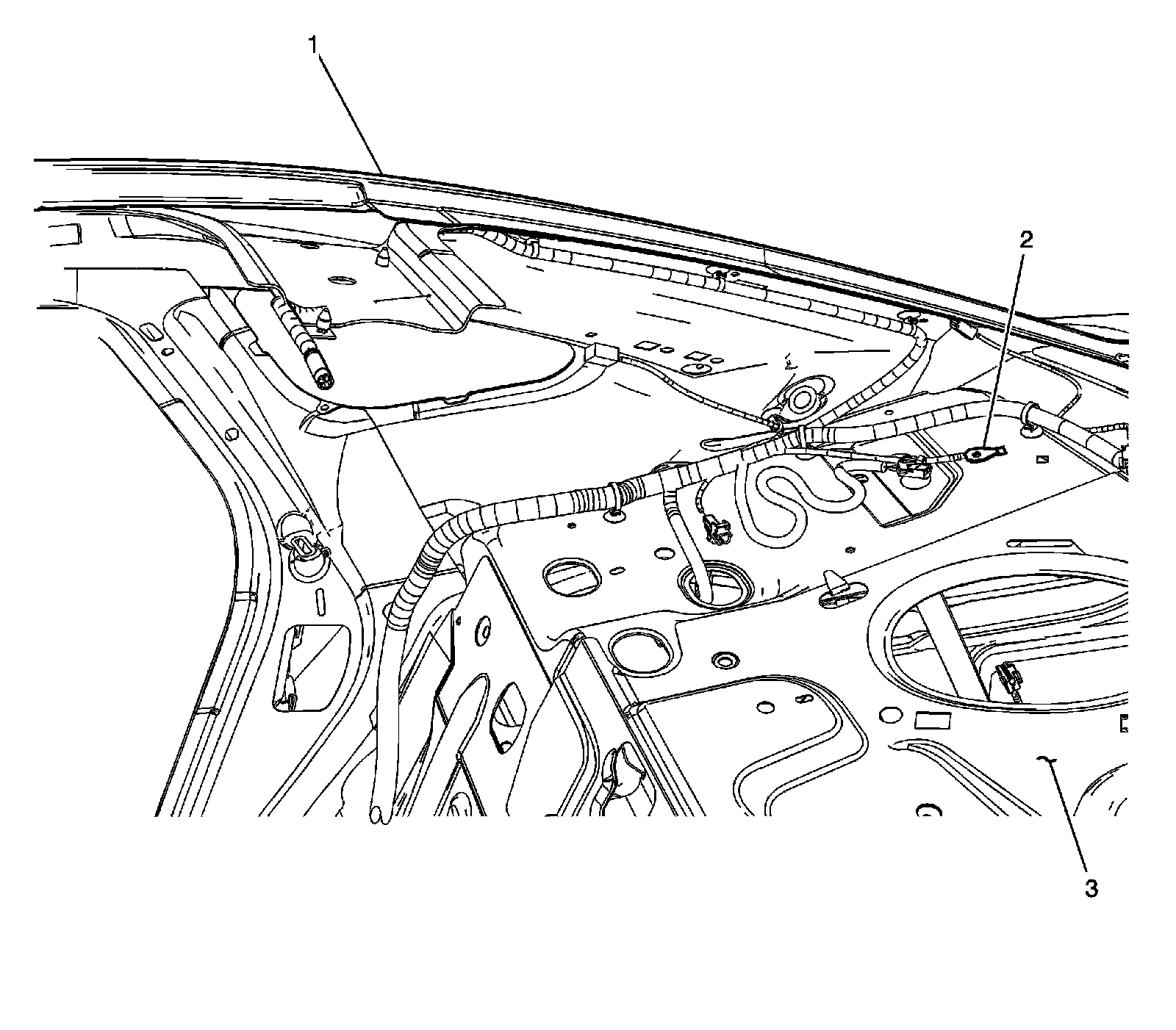

Power and Grounding Component Views

G404

1 - Passenger Side C Pillar
2 - G404
3 - Rear Window Shelf
