Fuel Level Sensor: Locations

Engine Controls Component Views

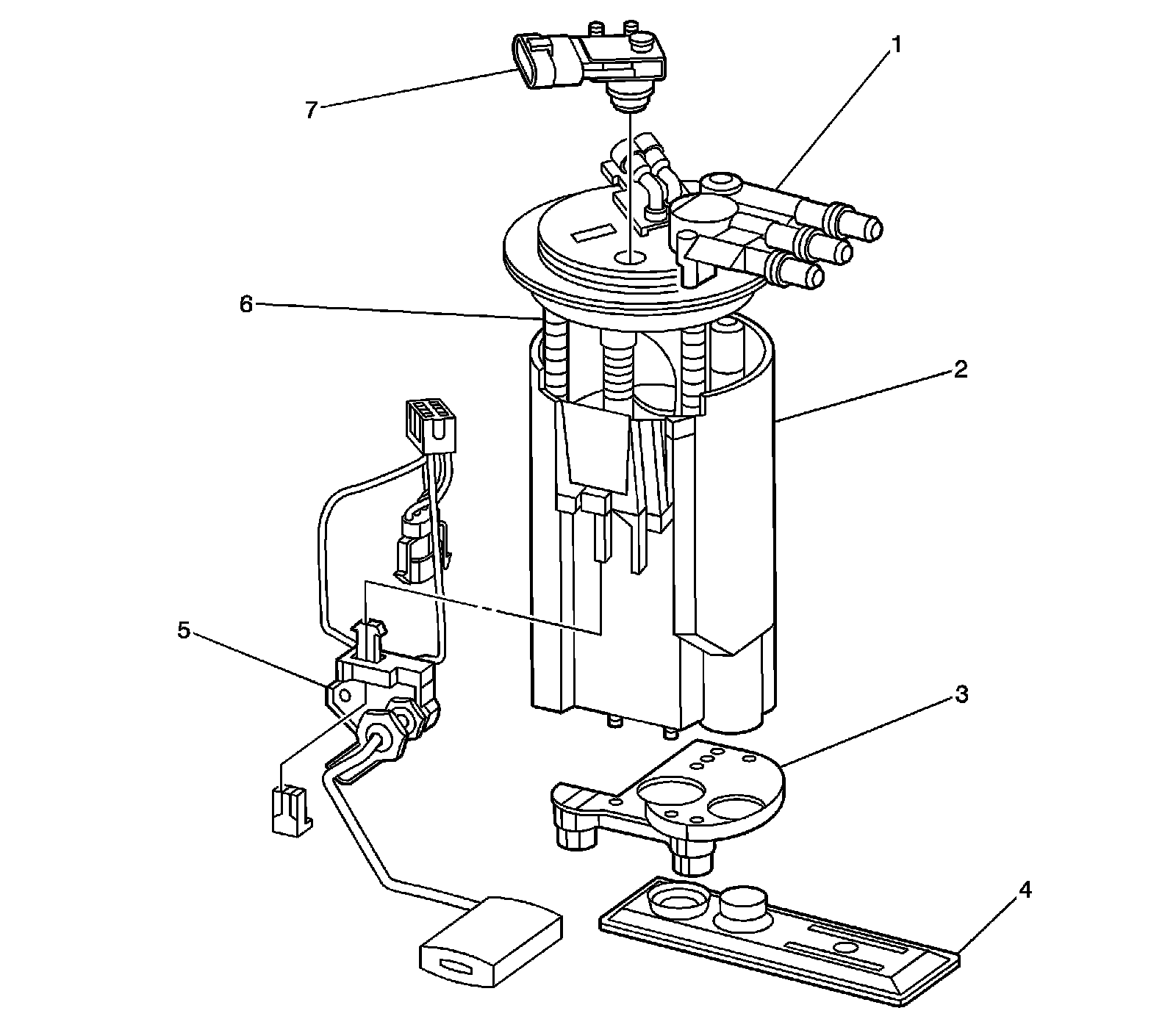

Fuel Pump and Sender Assembly




1 - Fuel Line Quick Connector
2 - Fuel Pump
3 - Base Plate
4 - Fuel Strainer
5 - Fuel Level Sensor
6 - Springs
7 - Fuel Tank Pressure (FTP) Sensor
