Fuel Level Sensor Replacement

Fuel Level Sensor Replacement

Removal Procedure

Important: Always maintain cleanliness when servicing fuel system components.




1. Remove the fuel sender assembly.

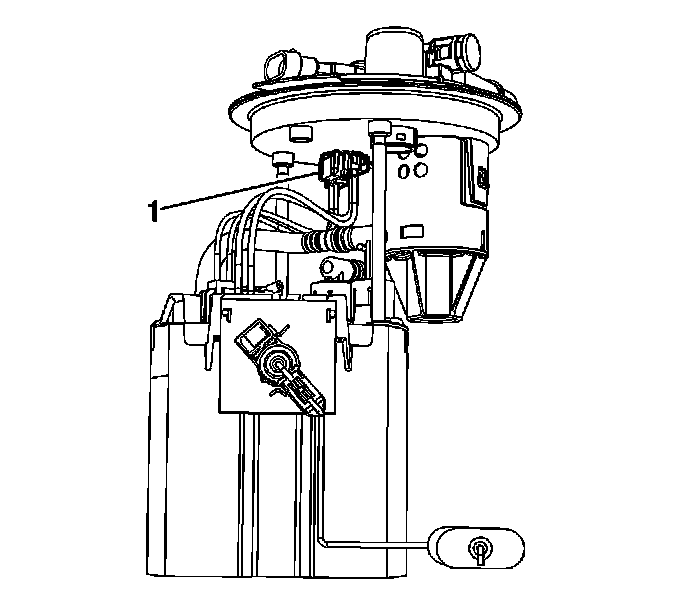

2. Disconnect the fuel level sensor electrical connector (1).

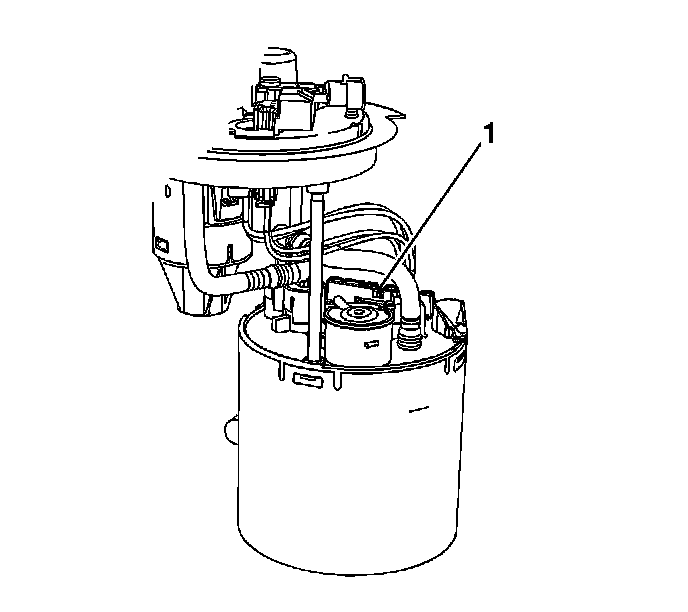

3. Push in the fuel level sensor retainer (1).

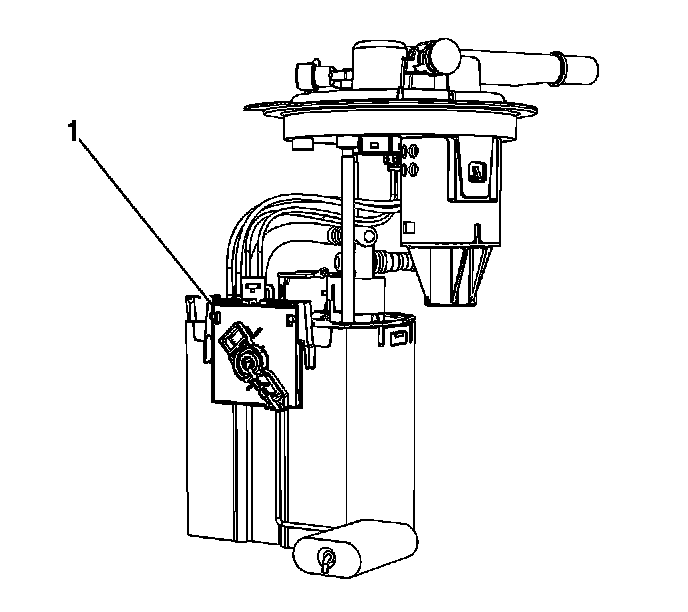

4. Slide the fuel level sensor (1) downward and off of the bucket.

Installation Procedure




1. Slide the fuel level sensor (1) onto the bucket and upward.




2. Slide the fuel level sensor upward until the retainer (1) locks.




3. Connect the fuel level sensor electrical connector (1).
4. Install the fuel sender assembly.
