Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Tools Required

J 41712 Oil Pressure Sensor Socket

Removal Procedure




1. If necessary, remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement.

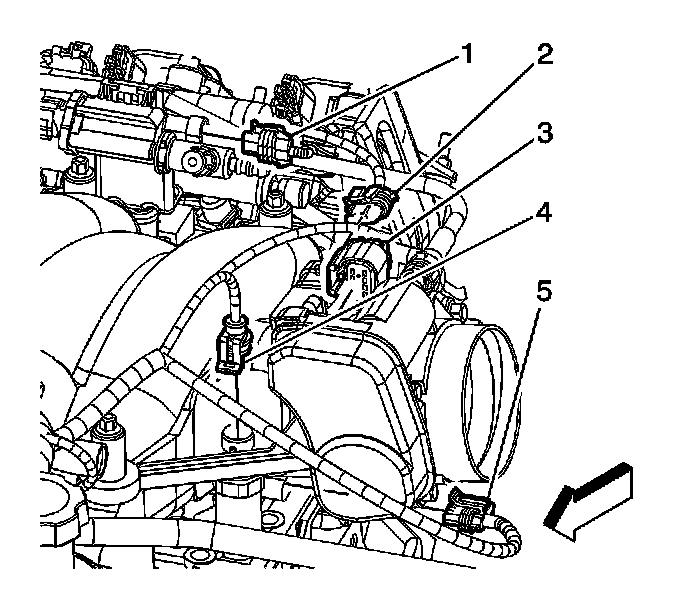

2. Disconnect the oil pressure sensor electrical connector (4).

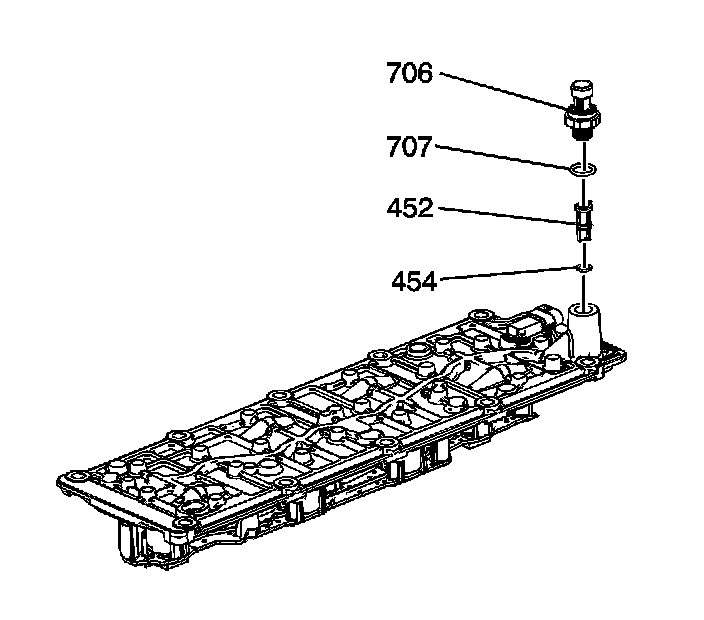

3. Using J 41712, remove the oil pressure sensor (706) and washer (707).

Installation Procedure




1. Apply sealant to the threads of the oil pressure sensor. Refer to Sealers, Adhesives, and Lubricants for the 3.9L engine.

Notice: Refer to Fastener Notice.

2. Using J 41712, install the oil pressure sensor (706) and washer (707).

Tighten the sensor to 35 N.m (26 lb ft).




3. Connect the oil pressure sensor electrical connector (4).
4. If necessary, install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement.
