Intake Manifold

Throttle Body Bolts 10 N.m 89 lb in

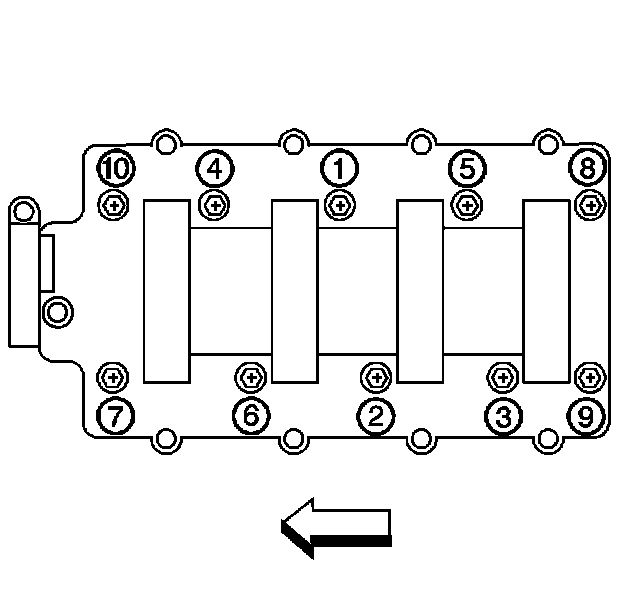

Intake Manifold Bolts - First Pass in Sequence 5 N.m 44 lb in
Intake Manifold Bolts - Final Pass in Sequence 10 N.m 89 lb in
J 41798 M8 Bolt 25 N.m 18 lb ft
J 41798 M10 Bolts 50 N.m 37 lb ft
