Remote Function Component Views

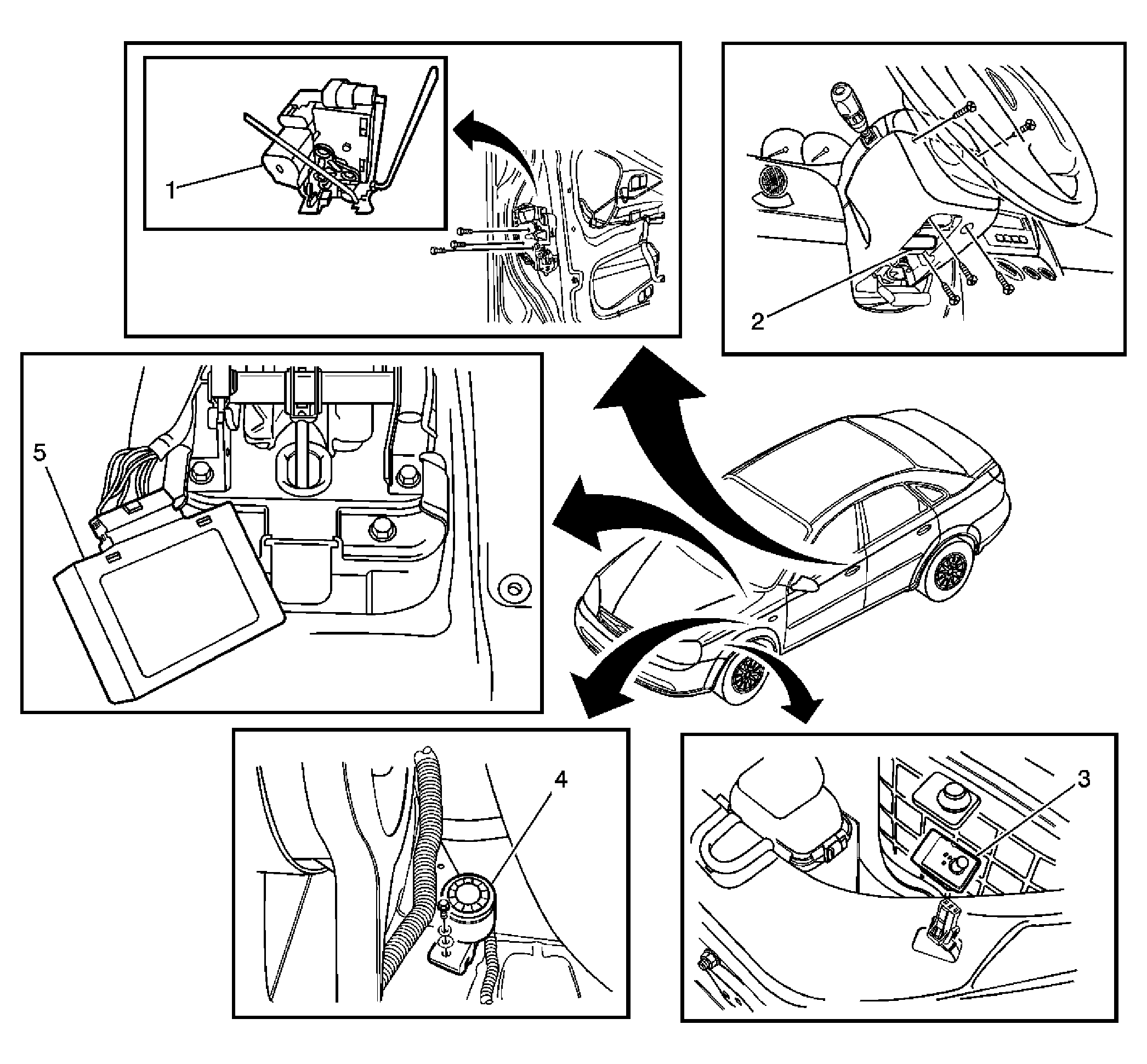

Fig 1: Anti-theft Tamper Switch, Theft Deterrent Control Module, Hood Ajar Switch, Alarm Schematic

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Front (Tamper Switch) (Left Shown, Right Similar)
2	Theft Deterrent Control Module
3	Hood Ajar Switch
4	Theft Deterrent Alarm
5	Remote Door Lock Receiver
