Antilock Brake System Component Views

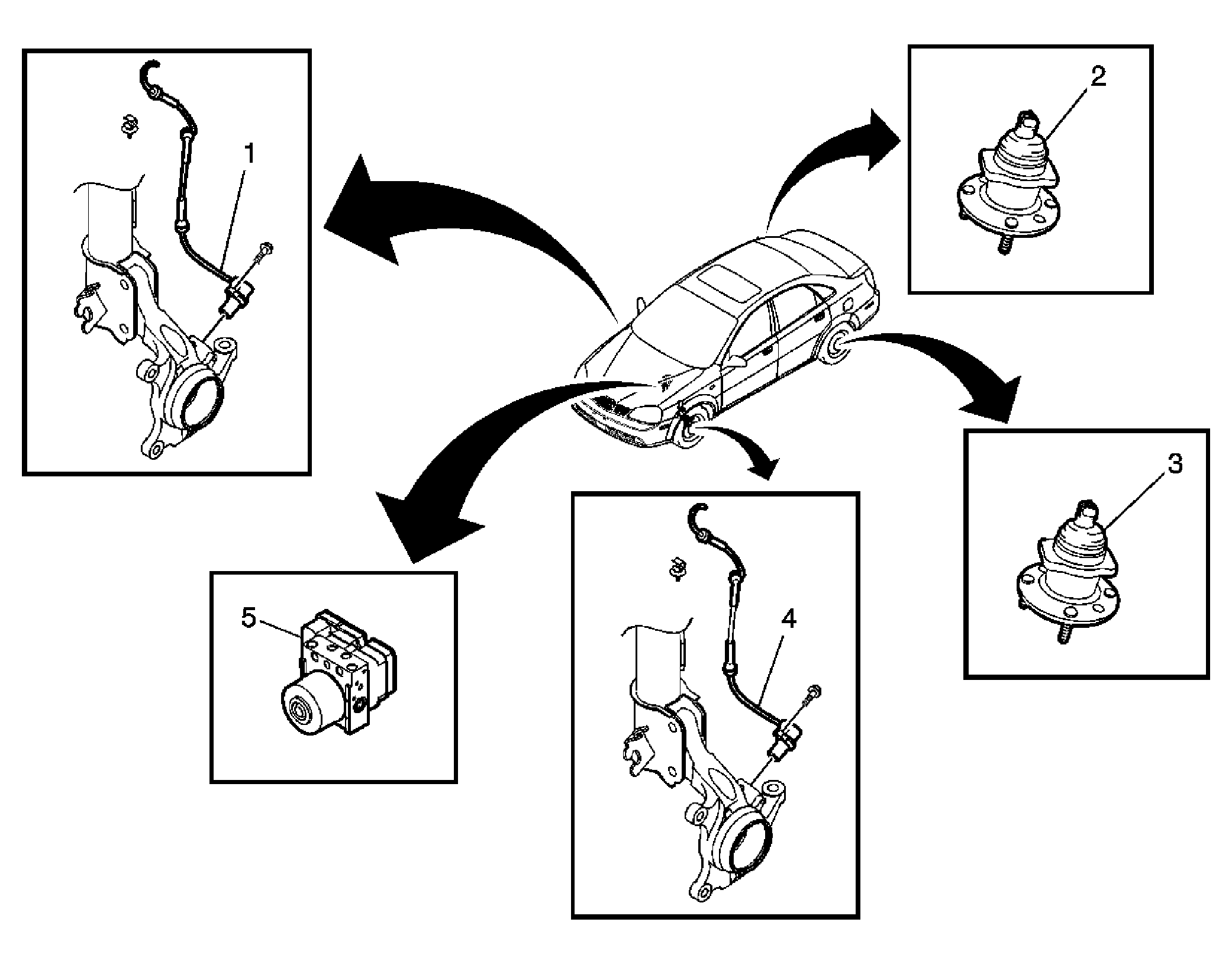

Fig 1: Identifying Antilock Brake System Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Right Front Wheel Speed Sensor
2
Right Rear Wheel Speed Sensor
3
Left Rear Wheel Speed Sensor
4
Left Front Wheel Speed Sensor
5
Brake Pressure Modulator Valve (BPMV)/Electronic Brake Control Module (EBCM)
