Installation Procedure

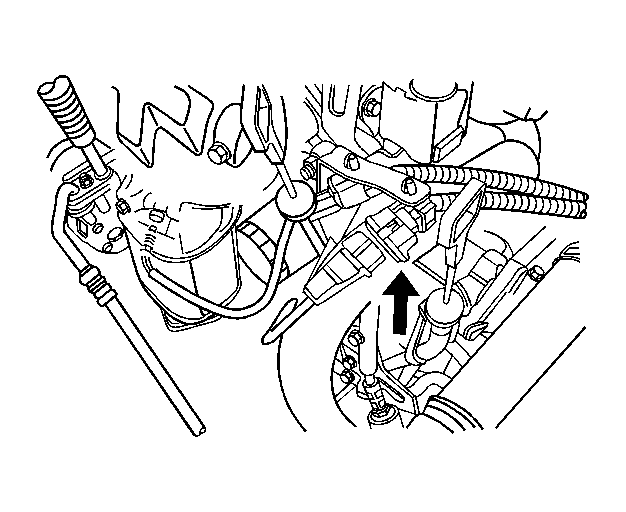

    Fig 1: View Of CKP Sensor Connector
    GM1701072Courtesy of GENERAL MOTORS CORP.
  1. Insert the CKP sensor into the engine block.
    2. NOTE: Refer to Fastener Notice .
  2. Install the CKP sensor retaining bolt.

    Tighten:  Tighten the CKP sensor retaining bolt to 6.5 N.m (57 lb in)  .

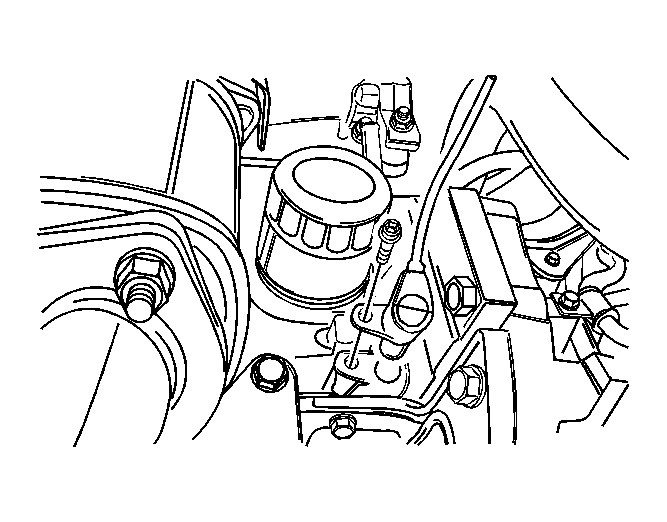

    3. Fig 2: View Of CKP Sensor And Retaining Bolt
    GM1701073Courtesy of GENERAL MOTORS CORP.
  3. Connect the CKP sensor connector.
  4. Connect the negative battery cable.
