Installation Procedure

NOTE: Always re-attach the fuel lines and fuel filter with all original type fasteners and hardware.
Do not repair sections of fuel pipes.

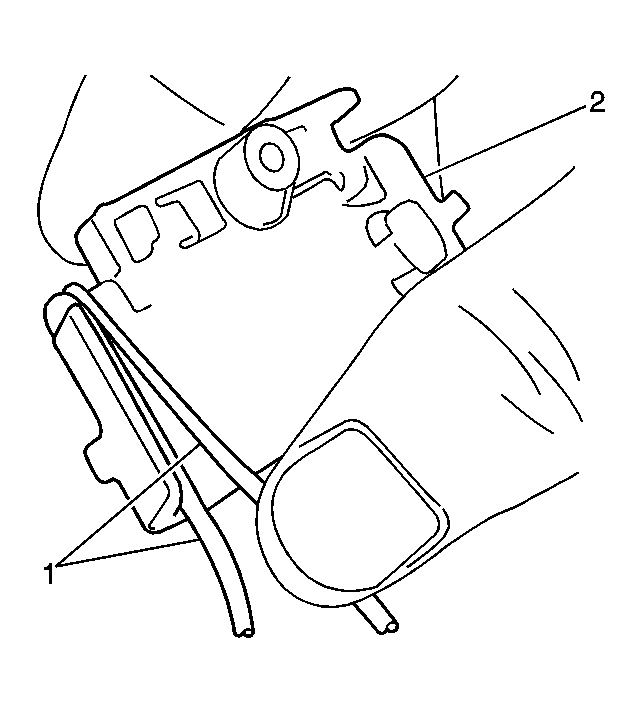

    Fig 1: View Of Fuel Sender Assembly And Electrical Wires
    GM1670520Courtesy of GENERAL MOTORS CORP.
  1. Wind the wires (1) around the sender assembly (2).

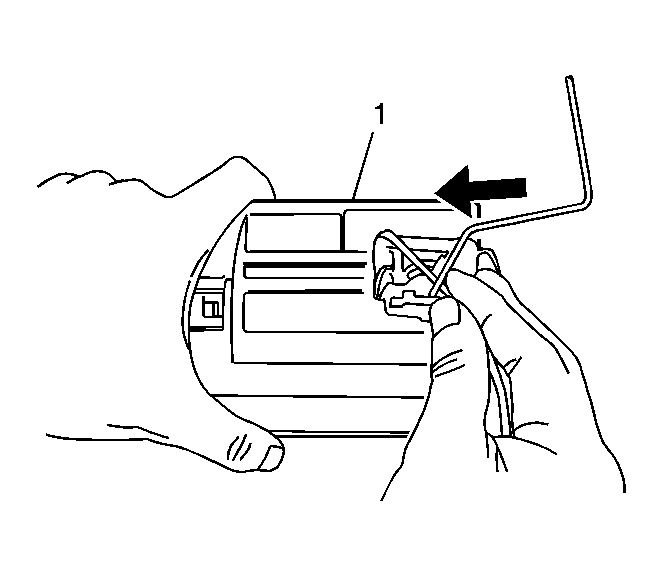

    2. Fig 2: Inserting Fuel Sender Into Fuel Pump Assembly
    GM1670521Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Failure to install the fuel sender assembly correctly will result in fuel gauge inaccurate reading.
  2. Install the sender assembly onto the fuel pump assembly (1).
    3. IMPORTANT: Failure to install the fuel level sensor correctly will result in fuel level warning lamp inaccurate reading.
  3. Install the fuel level sensor onto the fuel sender housing.

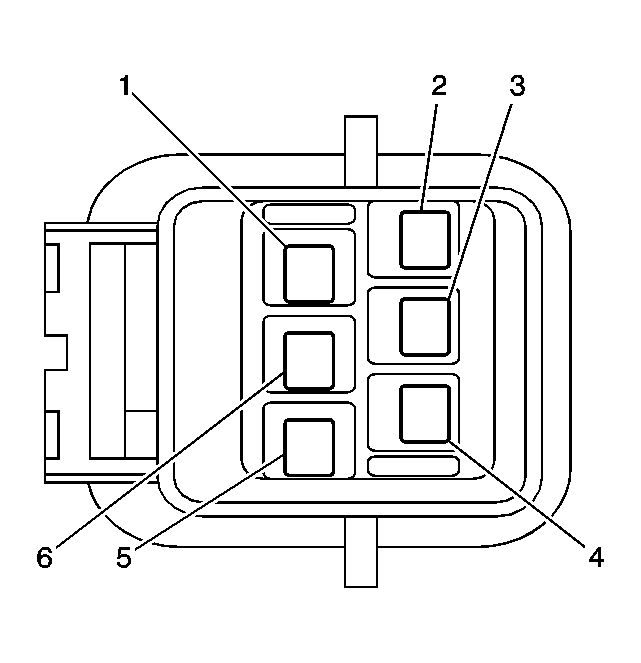

    4. Fig 3: Identifying Wire To Insulator Connections
    GM1670522Courtesy of GENERAL MOTORS CORP.
  4. Connect the wires into the insulator as follows:
    • Red (1)
    • Blue (2)
    • Gray (3)
    • Yellow (4)
    • Blue (5)
    • Black (6)

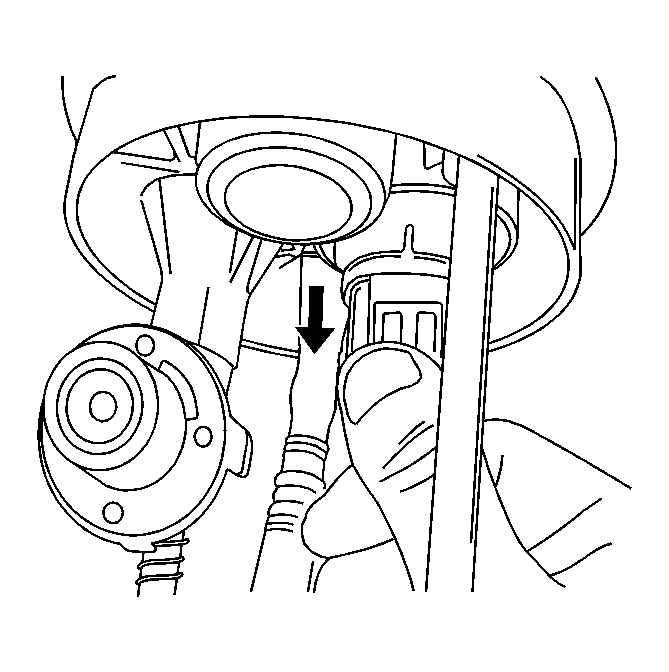

    5. Fig 4: View Of Fuel Sender Insulator Connector
    GM1670511Courtesy of GENERAL MOTORS CORP.
  5. Connect the fuel sender insulator connector.
  6. Install the fuel pump. Refer to Fuel Pump Replacement .
