Installation Procedure

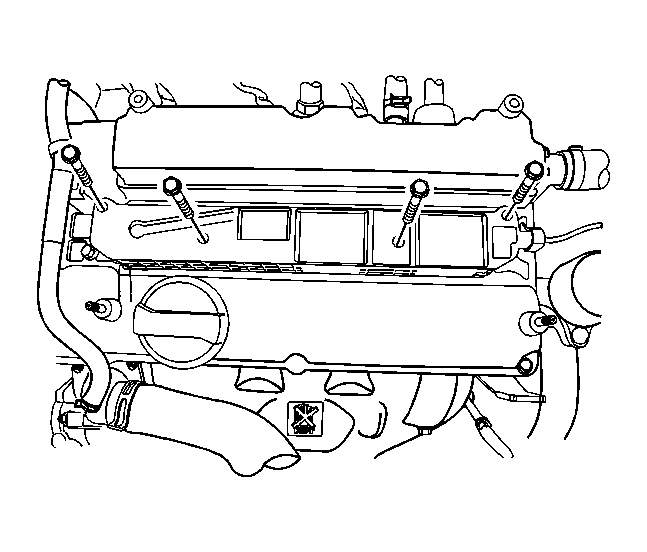

    Fig 1: View Of EI System Ignition Coil Retaining Bolts
    GM1701818Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the DIS system ignition coil into the mounting location and install the retaining bolts.

    Tighten:  Tighten the EI system ignition coil retaining bolts to 10 N.m (89 lb in)  .

  2. Connect the DIS system ignition coil connector.
  3. Install the engine cover.
  4. Connect the negative battery cable.
