Installation Procedure

    Fig 1: View Of CMP Sensor And Bolts
    GM1701065Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the CMP sensor and bolts.

    Tighten:  Tighten the CMP bolts to 6.5 N.m (58 lb in)  .

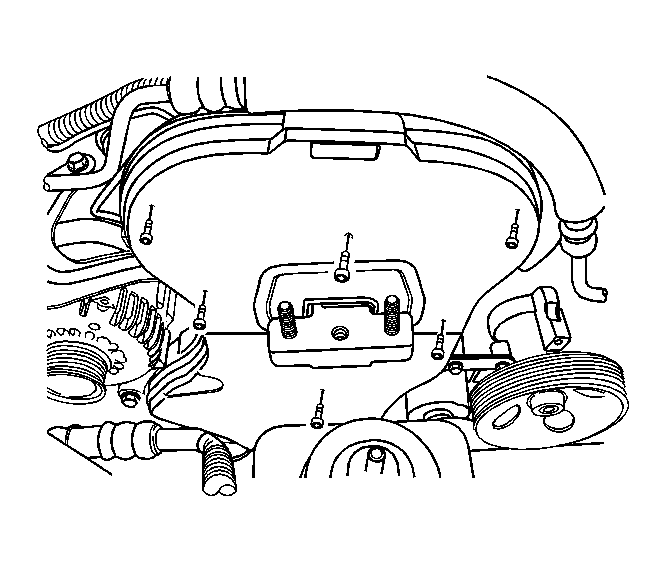

    2. Fig 2: View Of Timing Belt Front Cover And Bolts
    GM1701063Courtesy of GENERAL MOTORS CORP.
  2. Install the timing belt front cover, the crankshaft pulley, the accessory drive belt, and the air filter. Refer to Timing Belt Cover Replacement .
  3. Connect the sensor electrical connector.
  4. Install the engine cover.
  5. Connect the negative battery cable.
