Shift Lock Control Connector End Views

Automatic Transmission Shift Lever (North America)

Courtesy of GENERAL MOTORS CORP.

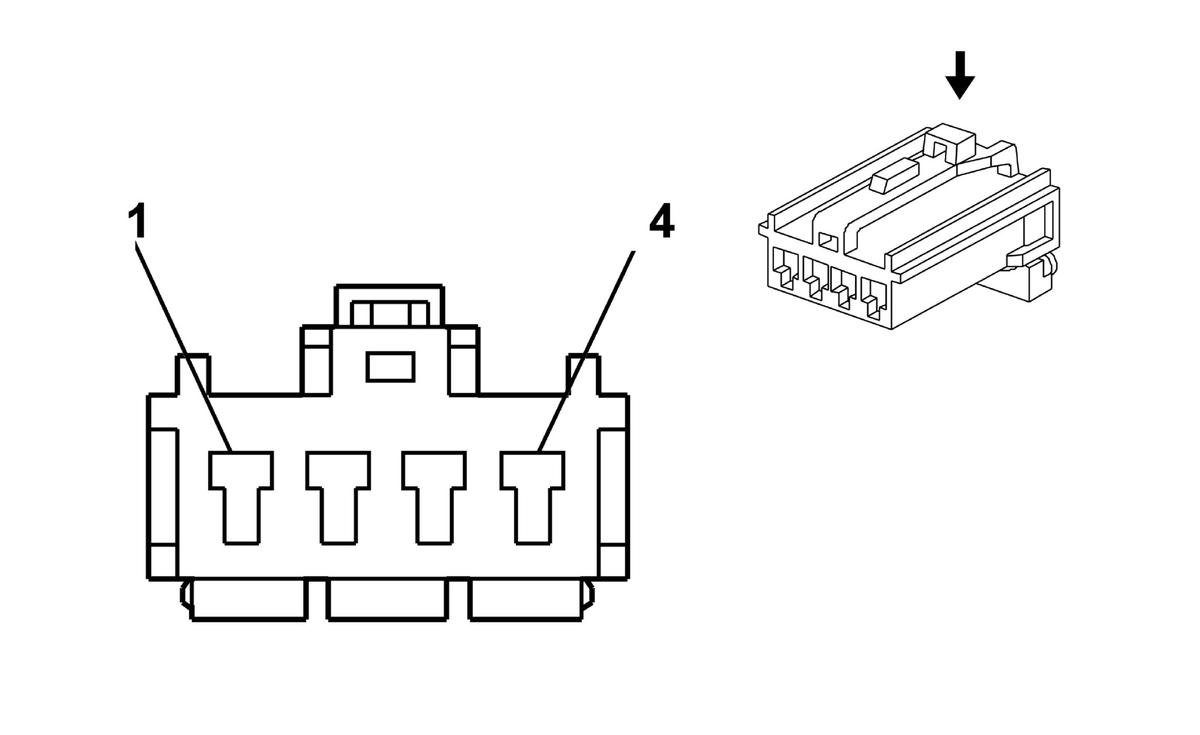

Connector Part Information		KET MG 610396 4-Way F Series Sealed (WH)
Pin	Wire Color	Circuit No.	Function
1	BK	1050	Ground
2	L-GN	275	Park/Neutral Position (PNP) Switch Signal
3	D-GN	286	Shift Lock Control Solenoid
4	PK	239	Ignition 1 Voltage

Automatic Transmission Shift Lever (Except North America)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610396 4-Way F Series Sealed (WH)
Pin	Wire Color	Circuit No.	Function
1	BK	1050	Ground
2	L-GN	275	Park/Neutral Position (PNP) Switch Signal
3	L-GN	275	Park/Neutral Position (PNP) Switch Signal
4	D-GN	286	Automatic Transmission Shift Lock Solenoid Supply Voltage

Key Interlock Module (North America)

Courtesy of GENERAL MOTORS CORP.

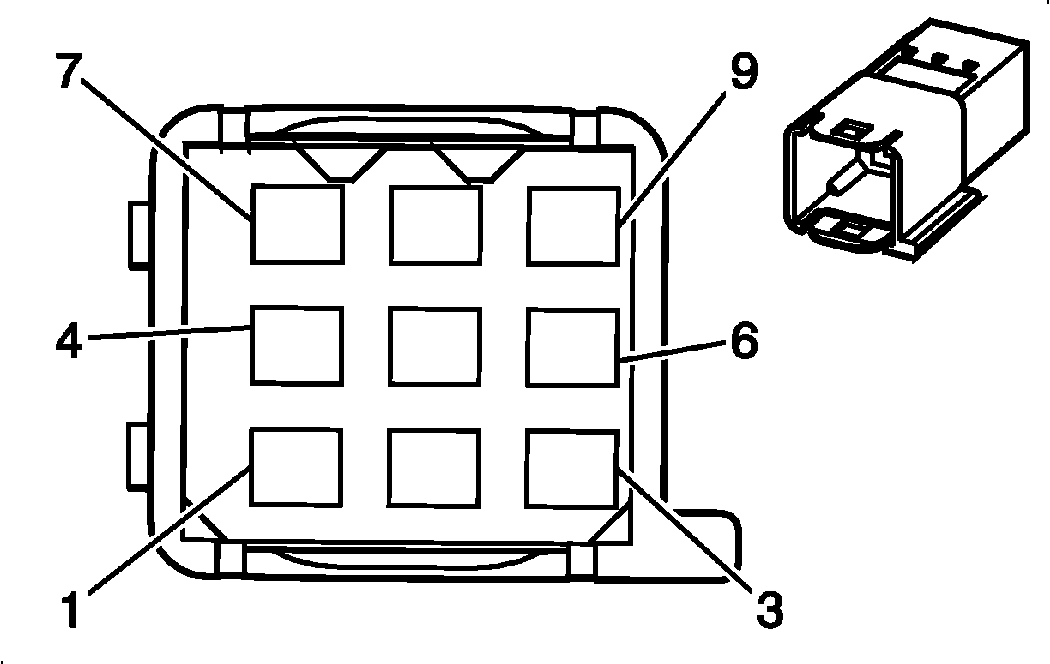

Connector Part Information		AK 36915 9-Way F Relay (BK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	YE	43	Accessory Voltage
3	-	-	Not Used
4	D-GN	286	Shift Lock Control Solenoid Control
5	YE	1075	Park Neutral Position (PNP) Switch Signal
6	BK	250	Ground
7	L-BU	20	Stop Lamp Switch Signal
8	L-GN	275	Park Neutral Position (PNP) Switch Signal
9	-	-	Not Used

Key Interlock Module (Except North America)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 36905 9-Way F Relay (BK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	YE	1075	Park Neutral Position (PNP) Switch Signal
3	-	-	Not Used
4	BK	250	Ground
5	D-GN	286	Shift Lock Control Solenoid Control
6	L-GN	275	Park Neutral Position (PNP) Switch Signal
7	OG/BK	434	Park Neutral Position (PNP) Switch Signal
8	L-BU	20	Stop Lamp Switch Signal
9	YE	434	Park Neutral Position (PNP) Switch Signal
