Memory Positioning Switch: Diagrams

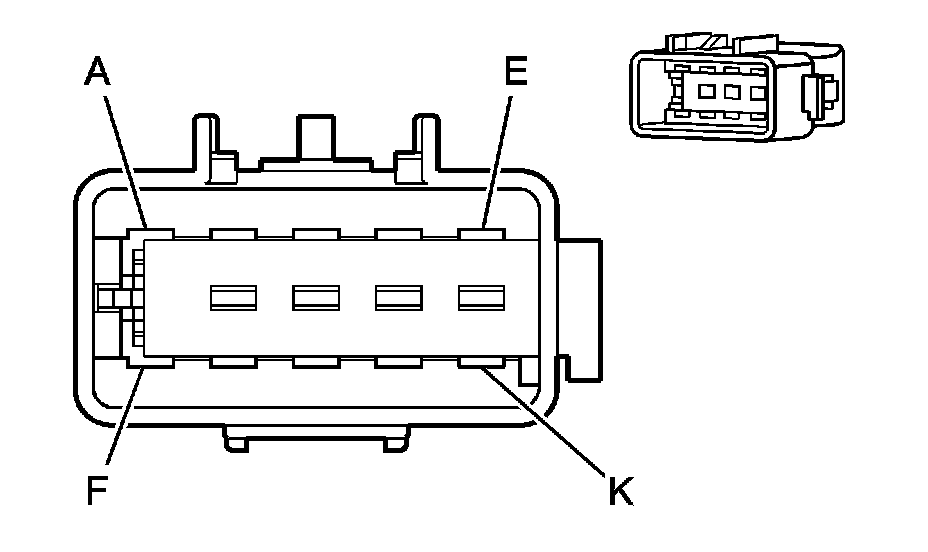

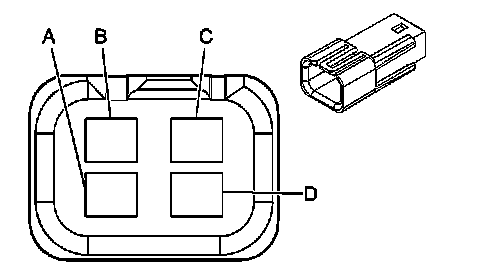

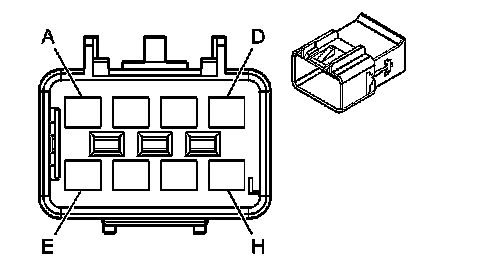

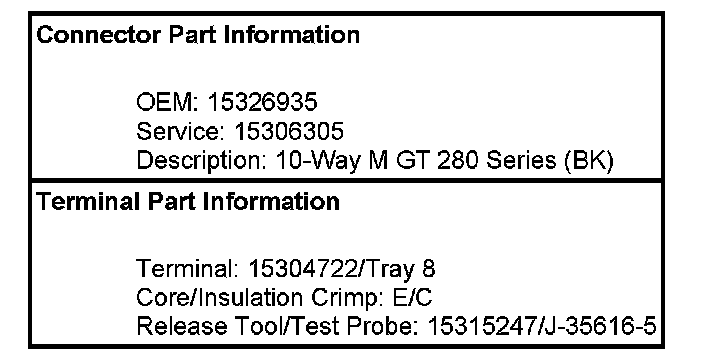

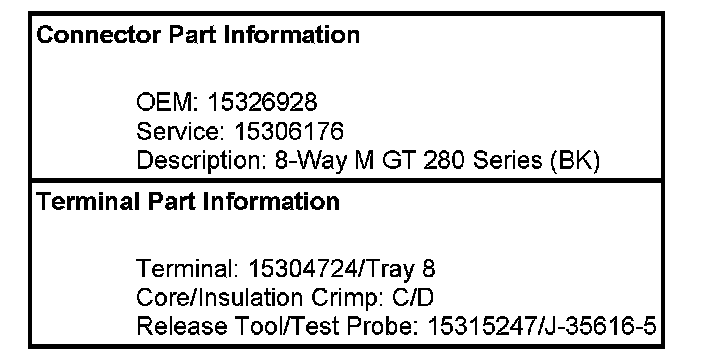

Power Seat Connector End Views

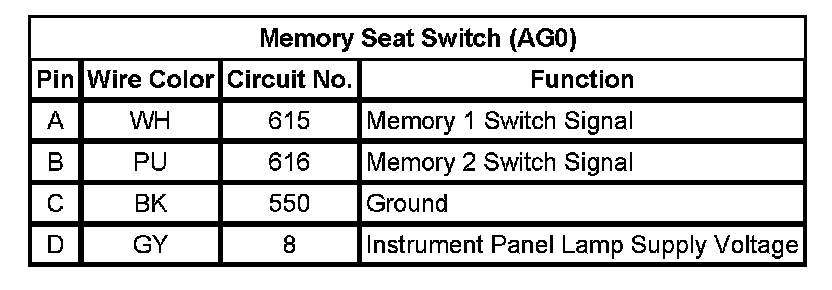

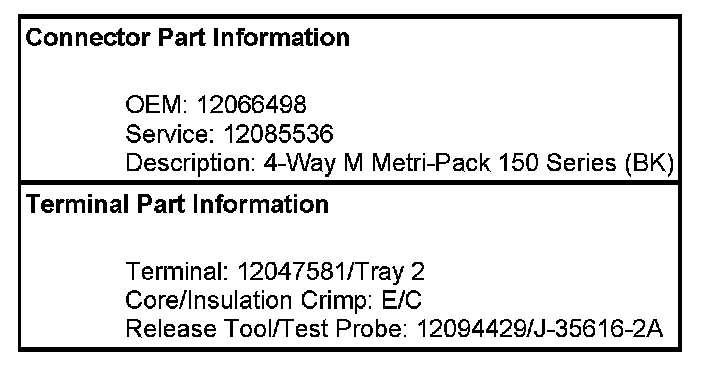

Memory Seat Switch (AG0)

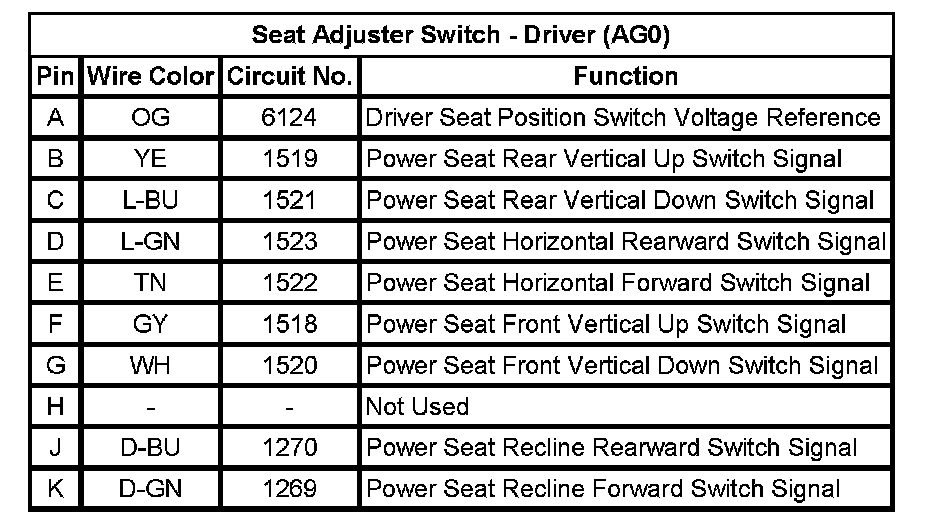

Seat Adjuster Switch - Driver (AG0)

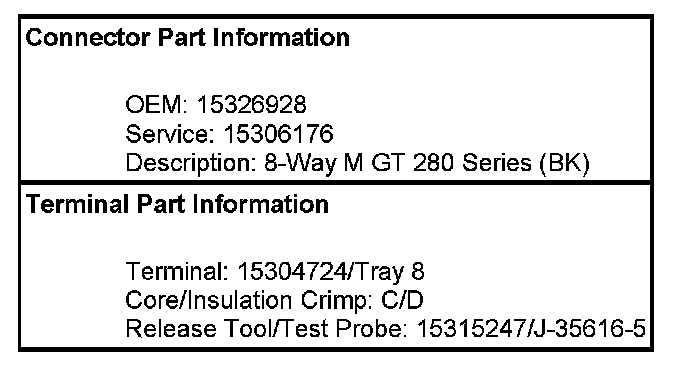

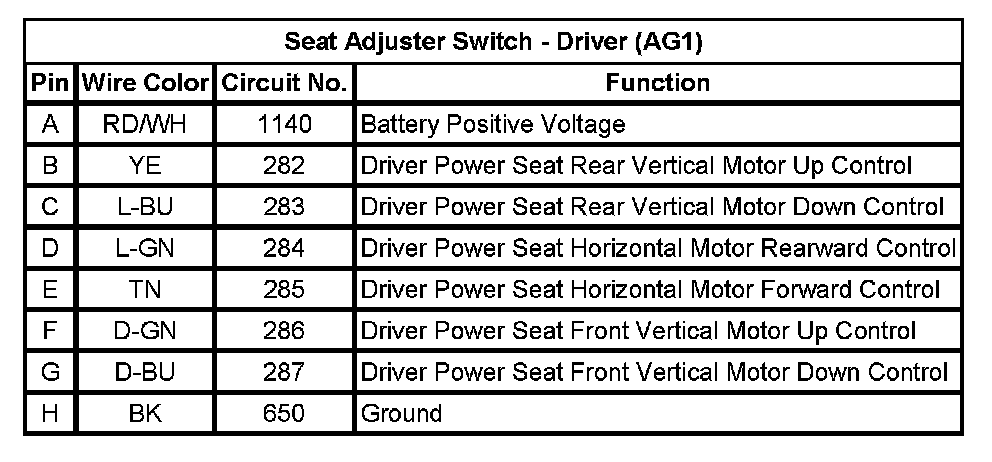

Seat Adjuster Switch - Driver (AG1)

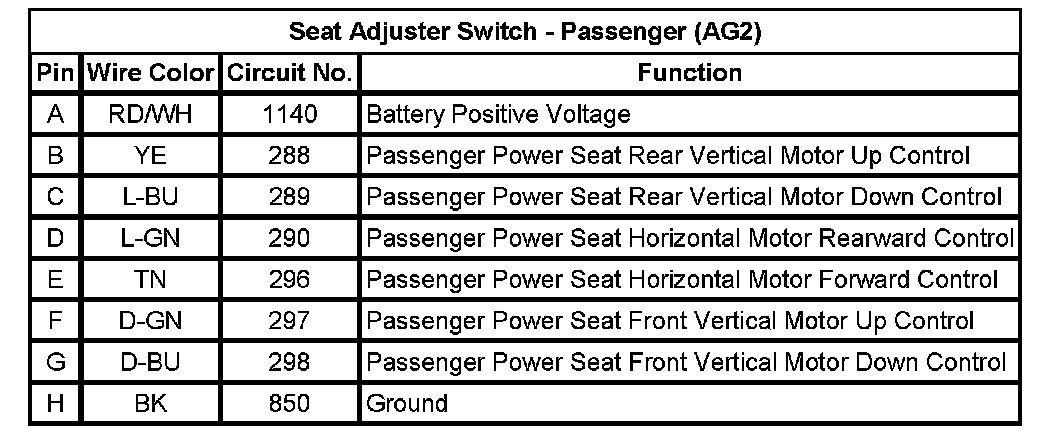

Seat Adjuster Switch - Passenger (AG2)

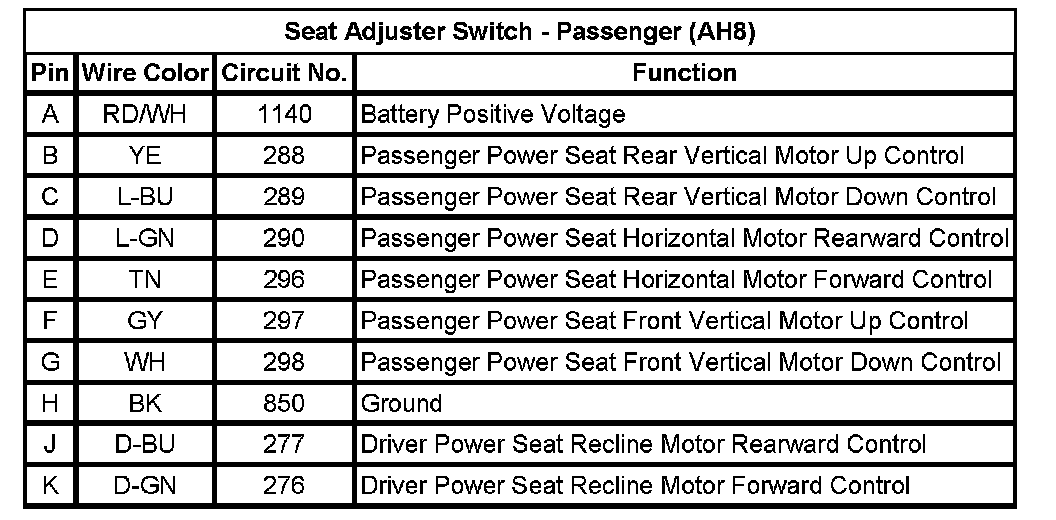

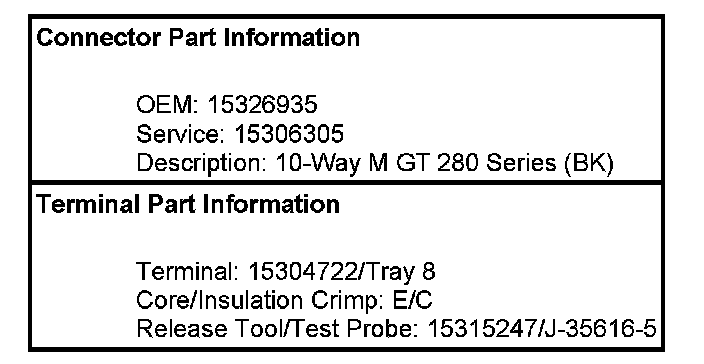

Seat Adjuster Switch - Passenger (AH8)
