Memory Positioning Module: Diagrams

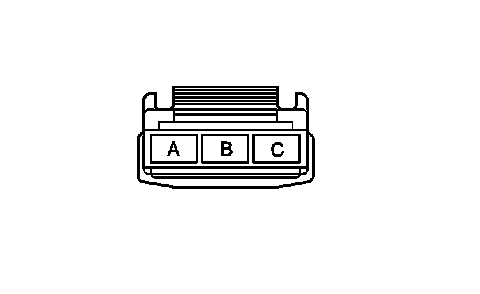

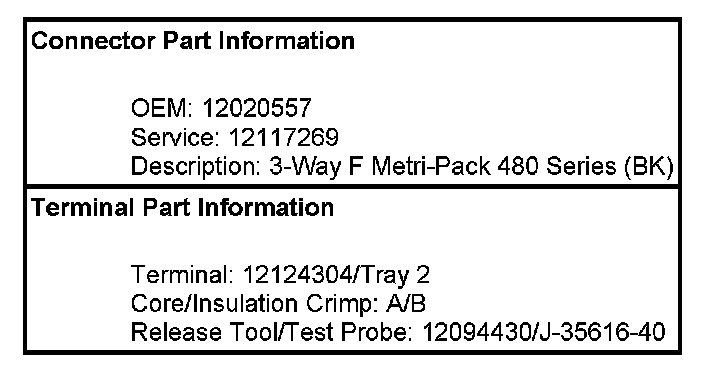

Power Seat Connector End Views

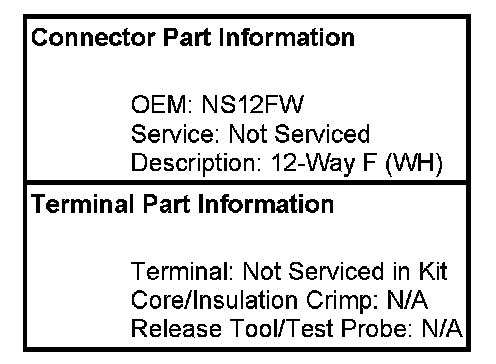

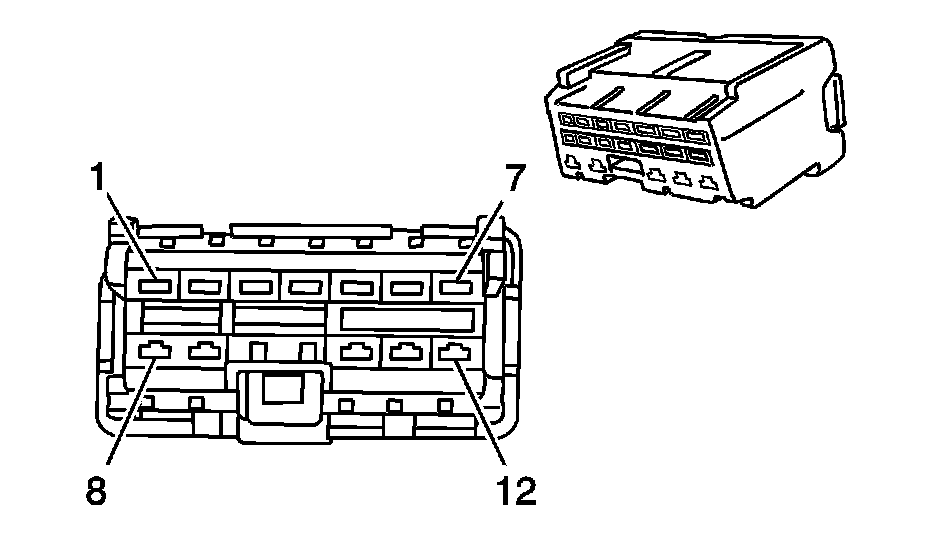

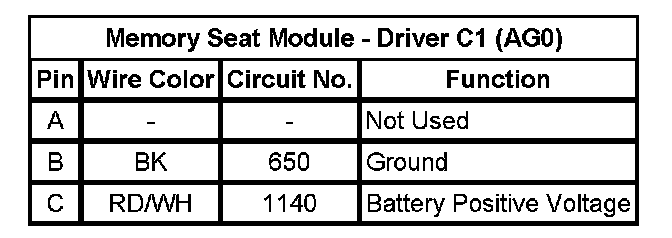

Memory Seat Module - Driver C1 (AG0)

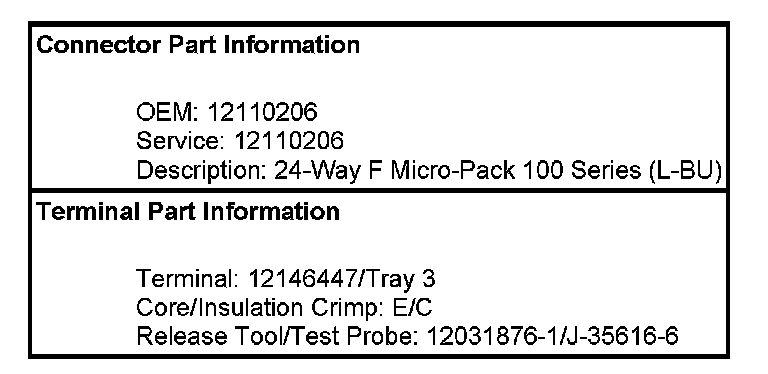

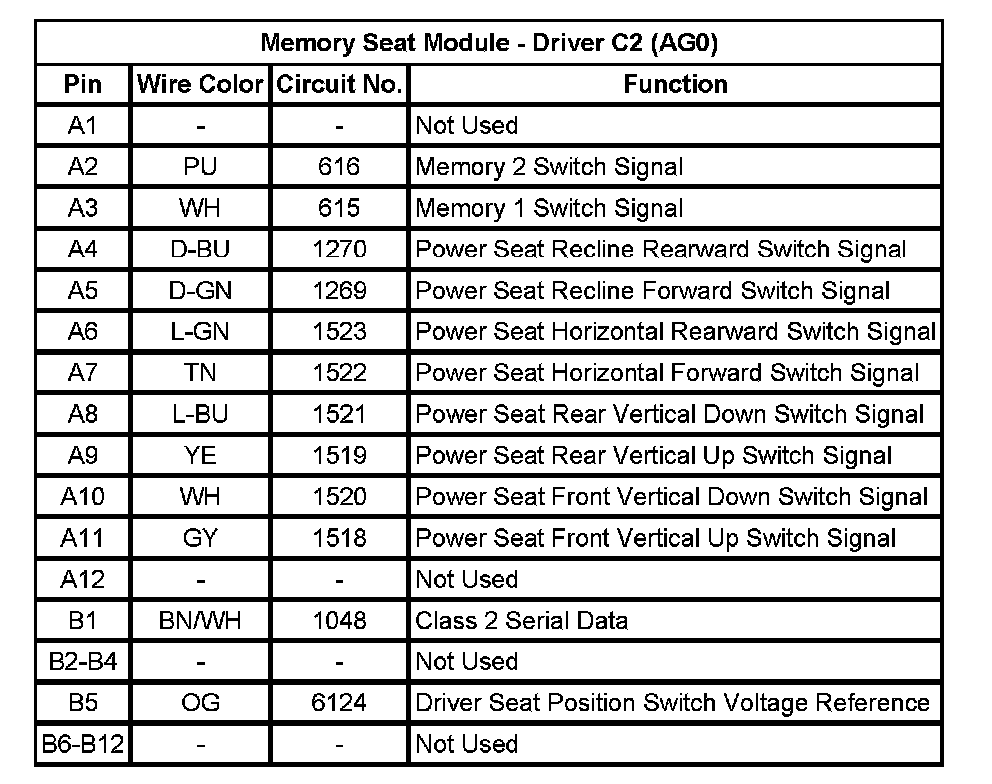

Memory Seat Module - Driver C2 (AG0)

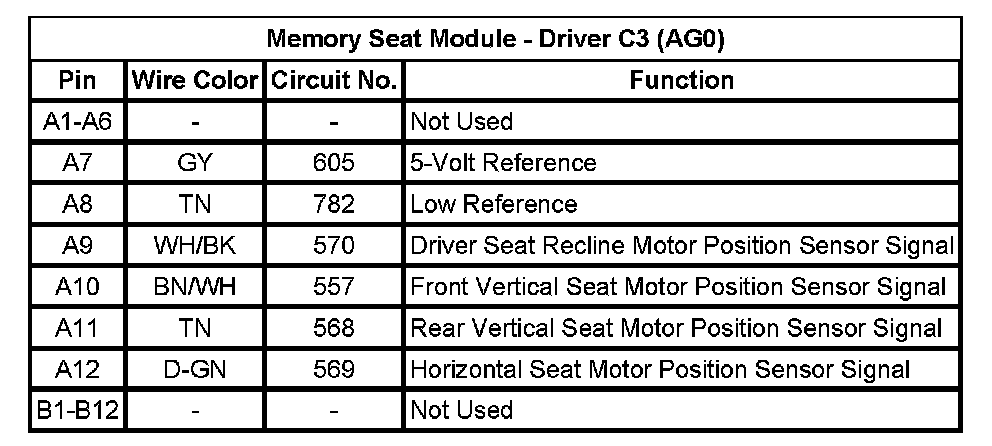

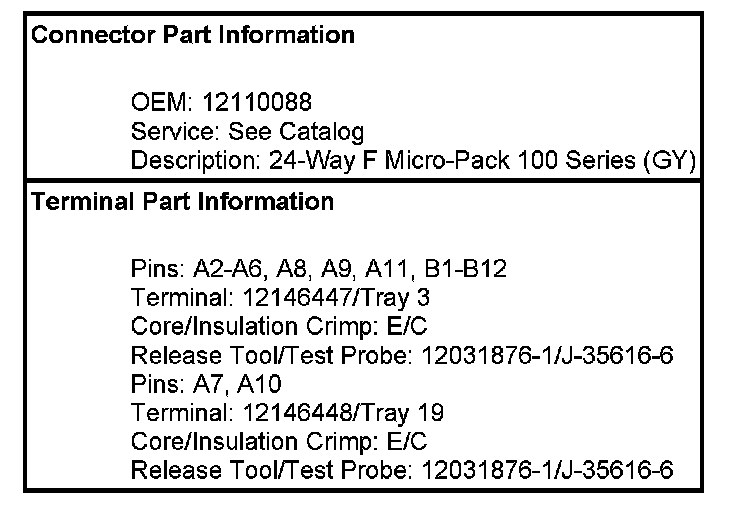

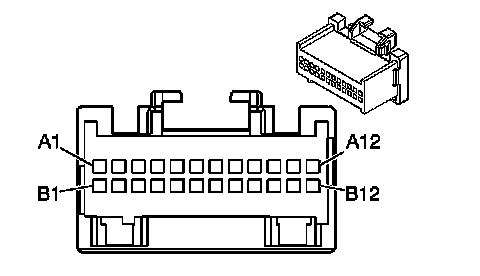

Memory Seat Module - Driver C3 (AG0)

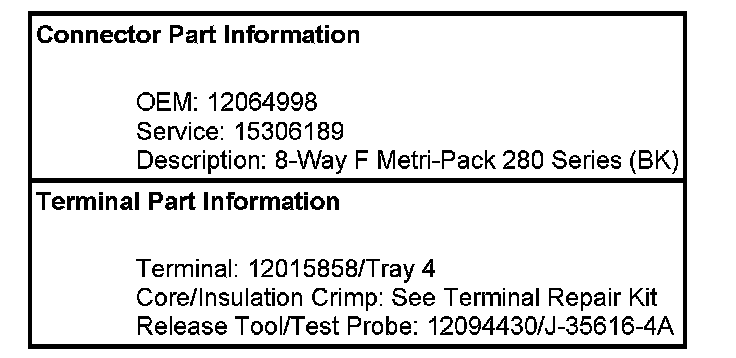

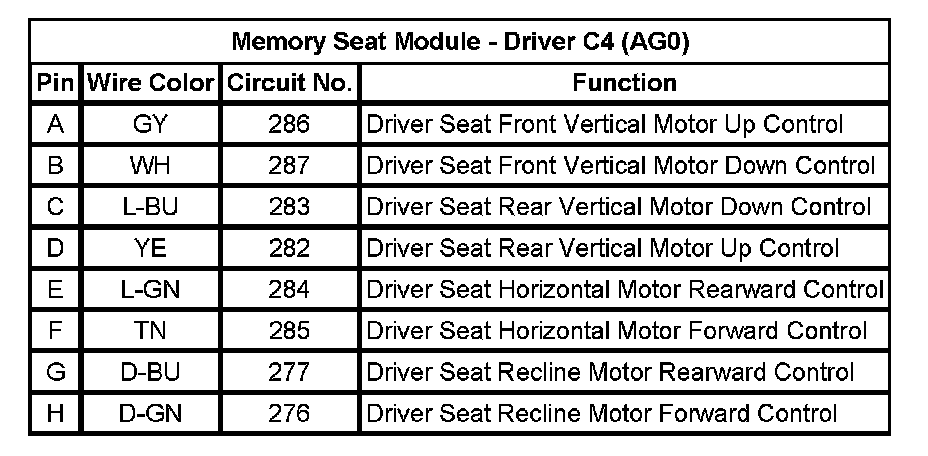

Memory Seat Module - Driver C4 (AG0)

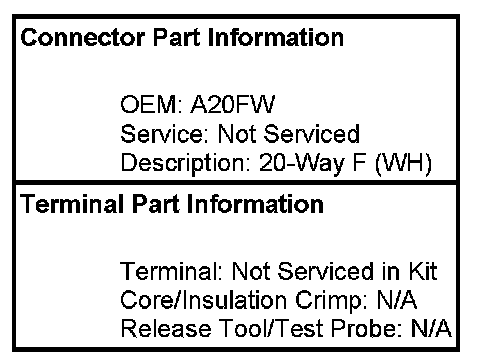

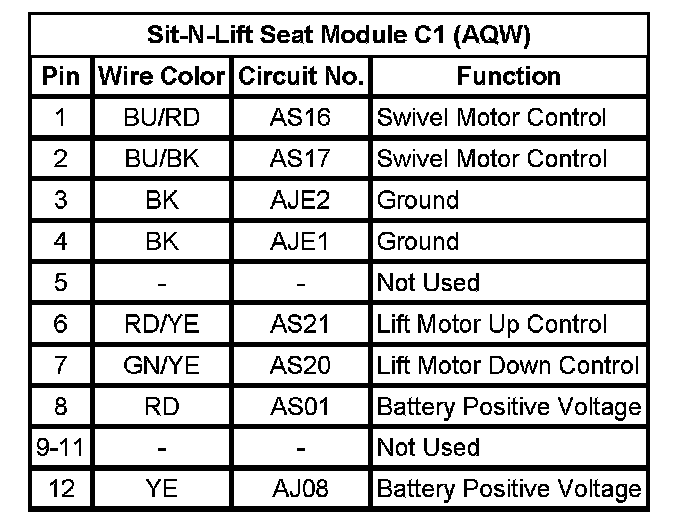

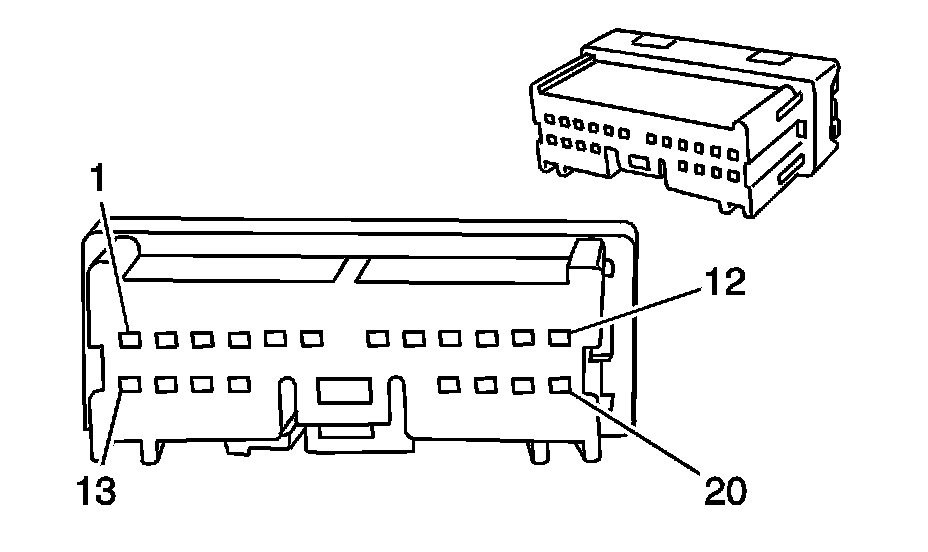

Sit-N-Lift Seat Module C1 (AQW)

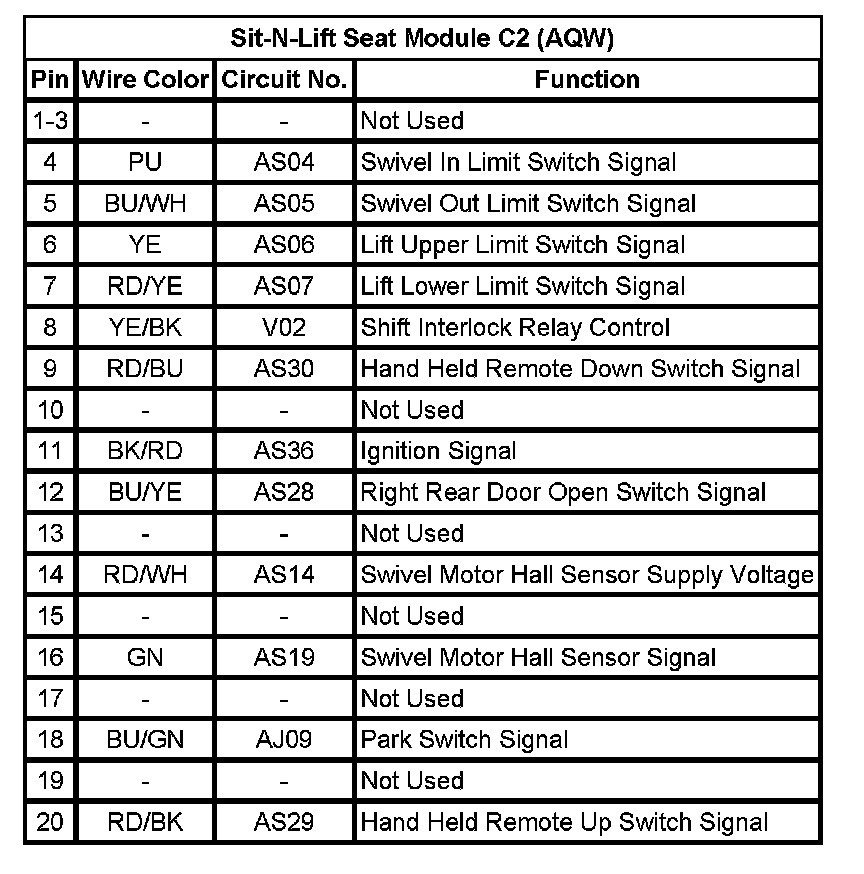

Sit-N-Lift Seat Module C2 (AQW)
