Acceleration/Deceleration Sensor

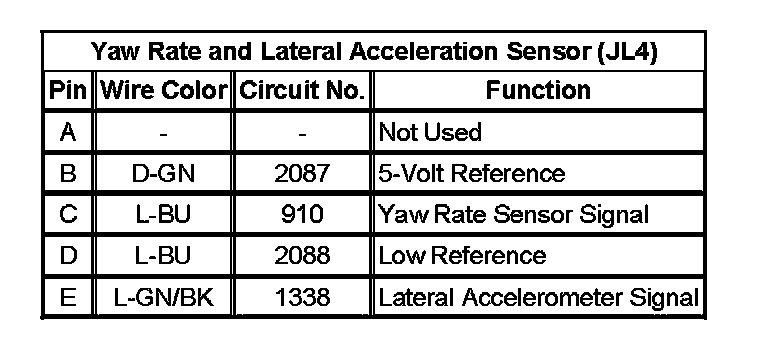

Yaw Rate and Lateral Acceleration Sensor (JL4)
Yaw Rate And Lateral Acceleration Sensor (JL4):
