Compressor/Pump, Suspension Control

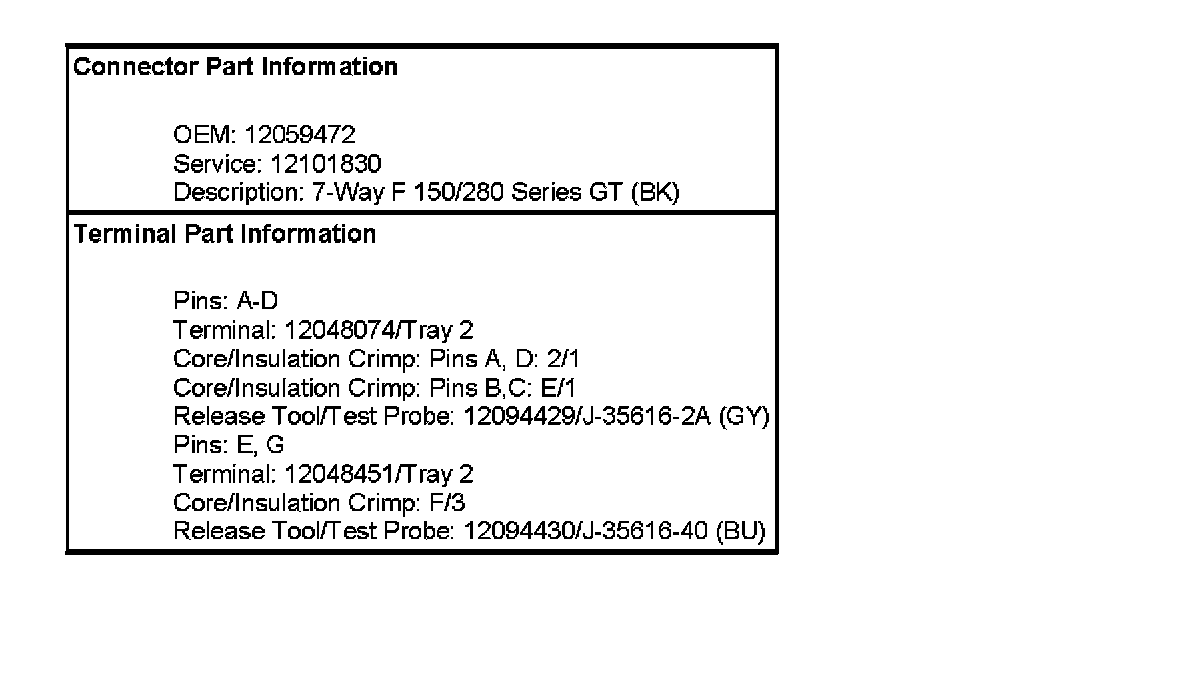

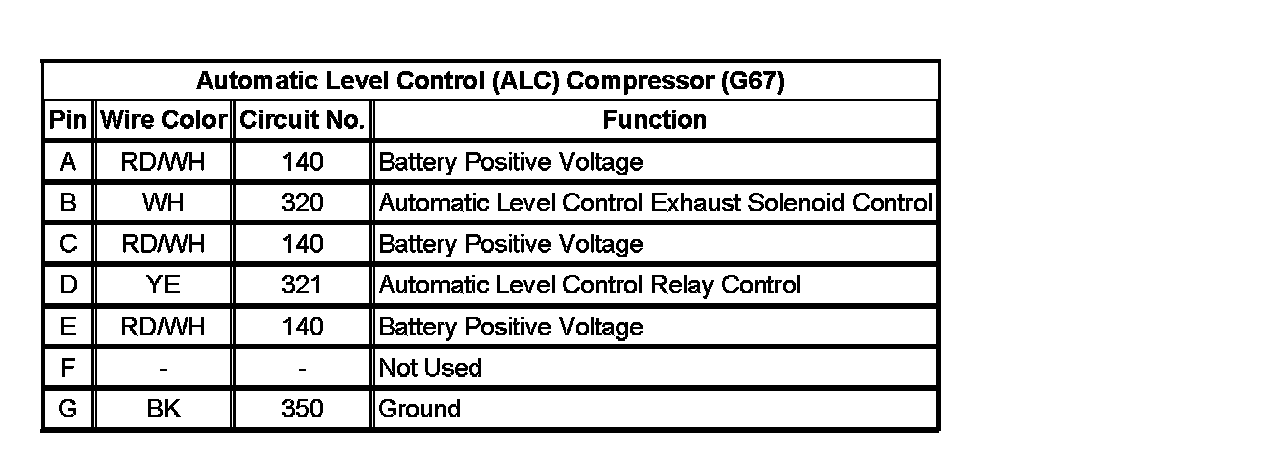

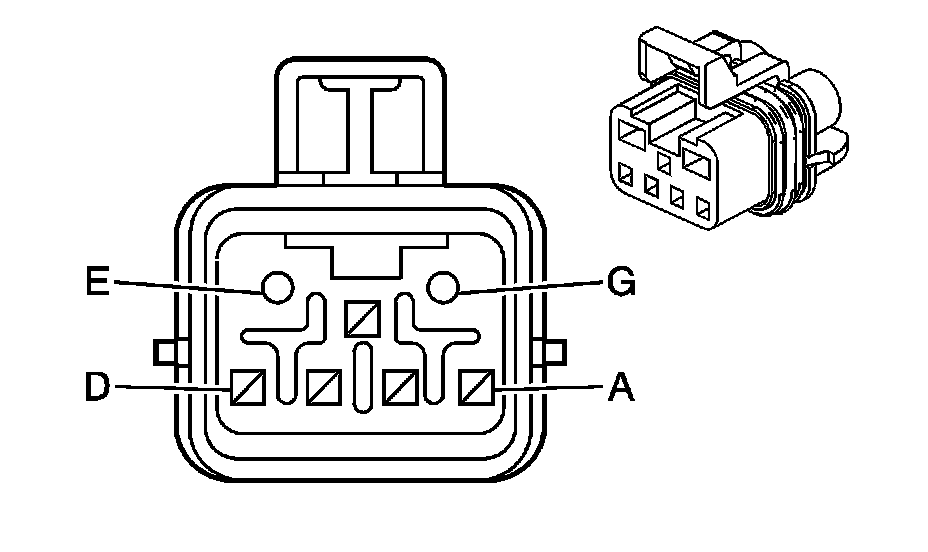

Automatic Level Control (ALC) Compressor (G67)







Automatic Level Control (ALC) Compressor (G67):
