Keyless Entry Module



Remote Function Connector End Views

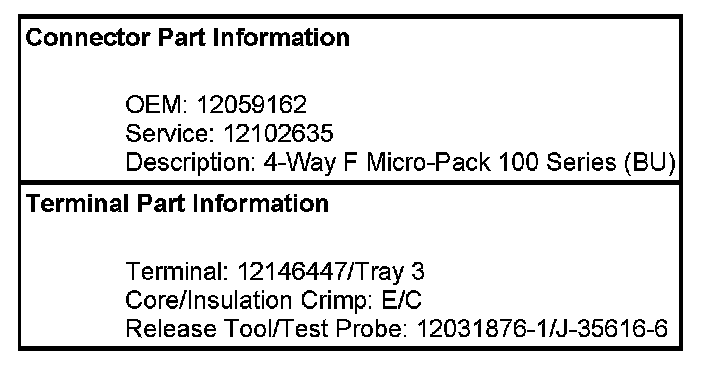

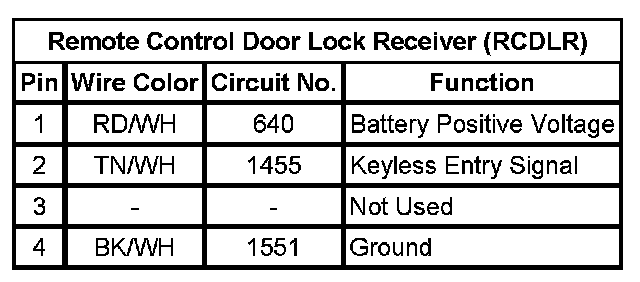

Remote Control Door Lock Receiver (RCDLR)

Tire Pressure Monitor (TPM) Module:
