Steering Mounted Controls Assembly



Entertainment/Communication Connector End Views

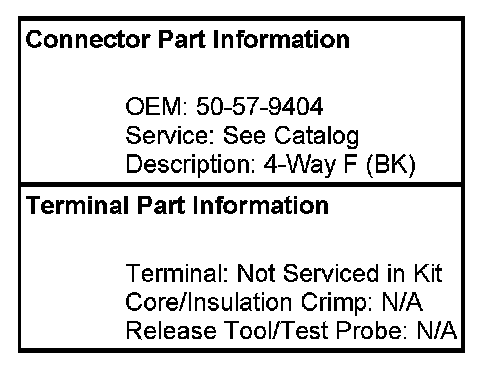

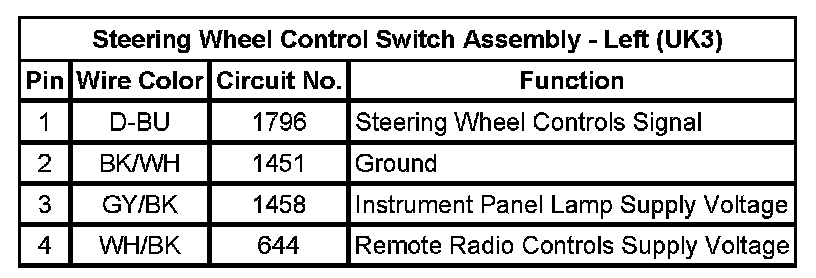

Steering Wheel Control Switch Assembly - Left (UK3)

Steering Wheel Controls - Right (UK3):

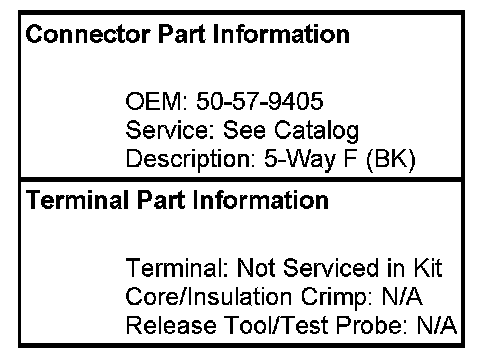

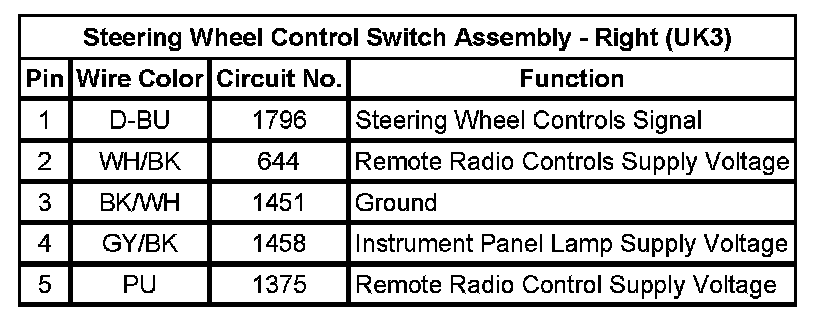

Steering Wheel Control Switch Assembly - Right (UK3)
