Bearings

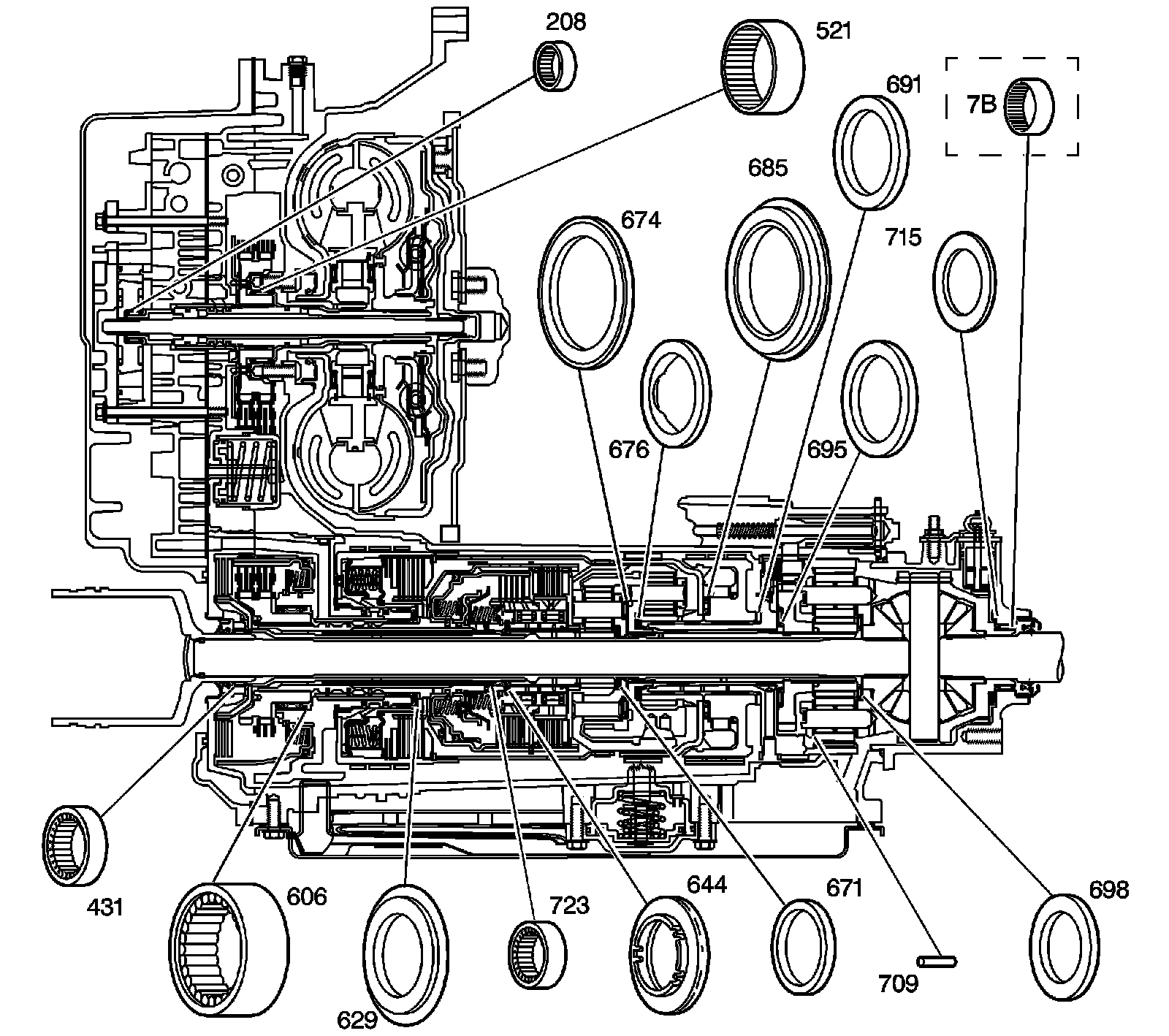

Component Location

Bearings

Bearings:

7b - Output Shaft Bearing Assembly MN7 Models Only
208 - Oil Pump Drive Shaft Bearing
431 - Front Wheel Drive Shaft Bearing
521 - Drive Sprocket Bearing Assembly
606 - Driven Sprocket Bearing Assembly
629 - Input Clutch Housing Thrust Bearing Assembly
644 - Input Shaft Thrust Bearing Assembly
671 - Input Sun Gear Thrust Bearing Assembly
674 - Reaction Carrier Thrust Bearing Assembly
676 - Reaction Sun Gear Thrust Bearing Assembly
685 - 1-2 Drum Support Thrust Bearing
691 - Final Drive Gear Internal Thrust Bearing
695 - Front Differential Carrier Internal Gear Thrust Bearing
698 - Front Differential Carrier Sun Gear Thrust Bearing
709 - Front Differential Carrier Planetary Pinion Bearing
715 - Front Differential Carrier Thrust Bearing
723 - Input Clutch Housing Thrust Bearing
