Case Side Cover Bolts



Component Location

Case Side Cover Bolts

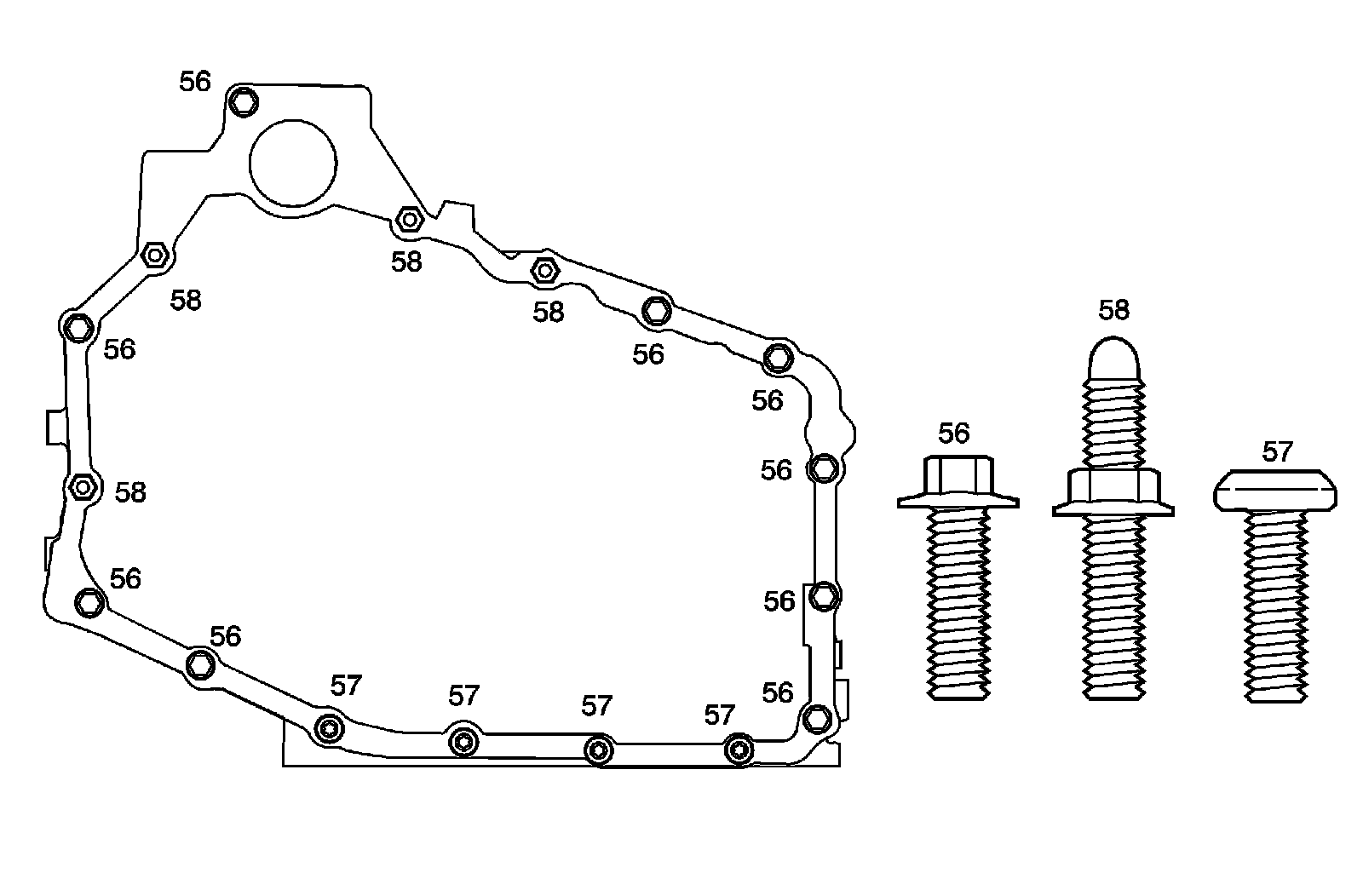

Case Side Cover Bolts:




56 - Side Cover Bolt/Screw M8 X 1.25 X 25.0 (9)
57 - Side Cover Bolt/Screw M8 X 1.25 X 21.0 (4)
58 - Side Cover Bolt/Screw M8 X 1.25 X 24.0 (4)
