Thrust Washers

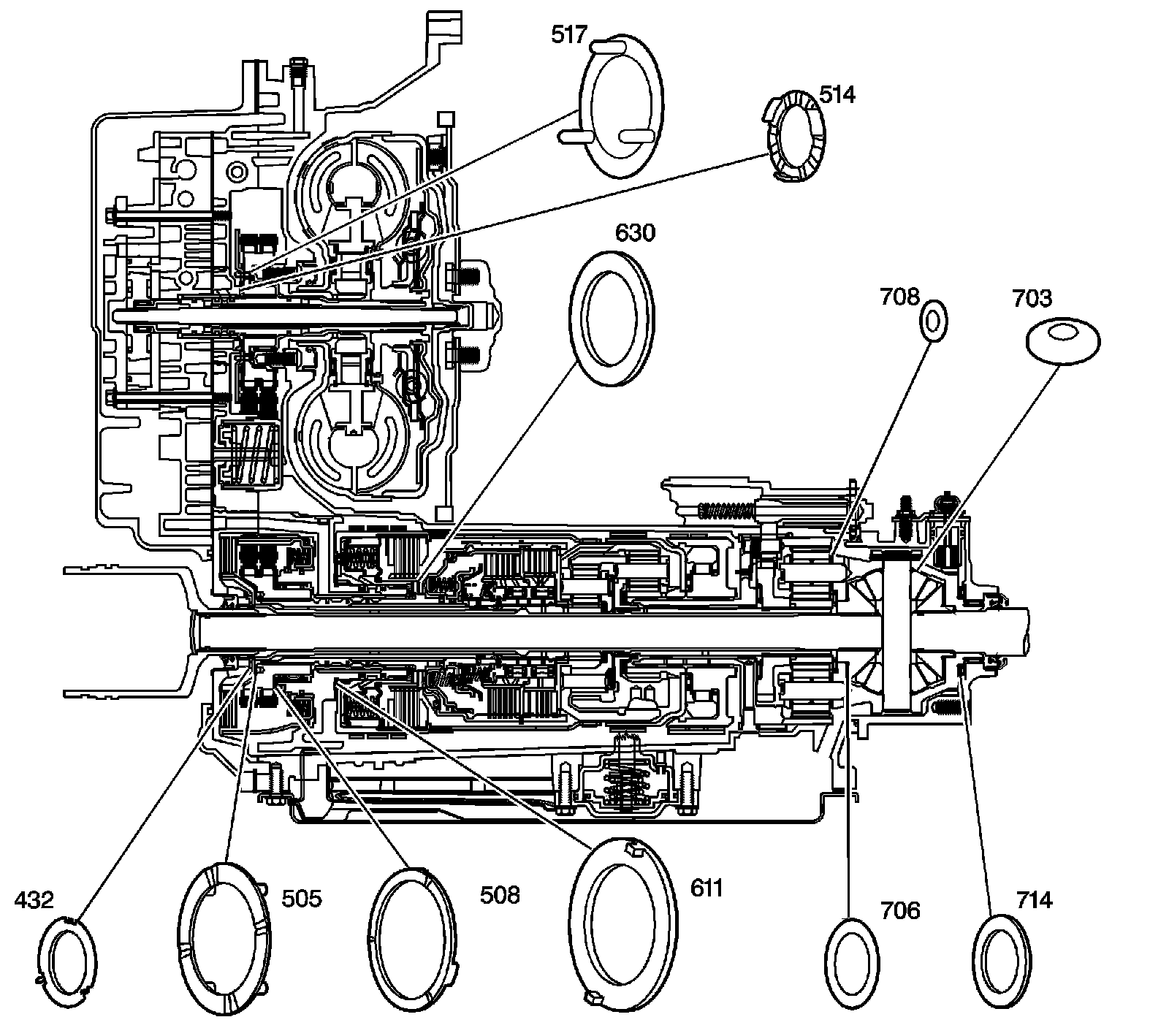

Component Location

Thrust Washers

Thrust Washers:

432 - Fourth Clutch Shaft Thrust Washer
505 - Fourth Clutch Shaft Thrust Washer
508 - Driven Sprocket Thrust Washer
514 - Drive Sprocket Thrust Washer
517 - Drive Sprocket Thrust Washer
611 - Second Clutch Housing Thrust Washer
630 - Input Clutch Housing Thrust Washer Selective
703 - Differential Pinion Thrust Washer
706 - Differential Side Gear Thrust Washer Bronze
708 - Planetary Pinion Gear Thrust Washer Steel
714 - Differential Carrier/Case Thrust Washer
