Blower Motor: Service and Repair

Blower Motor Replacement

Removal Procedure




1. Remove the right side instrument panel (I/P) insulator.

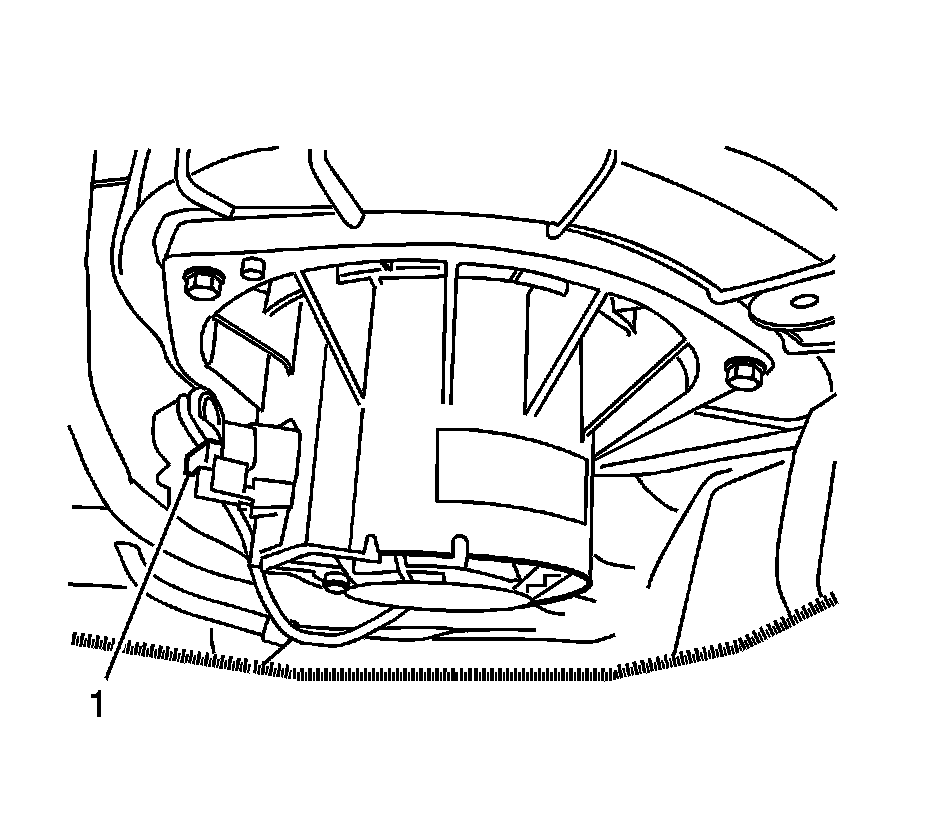

2. Disconnect the blower motor electrical connector (1).

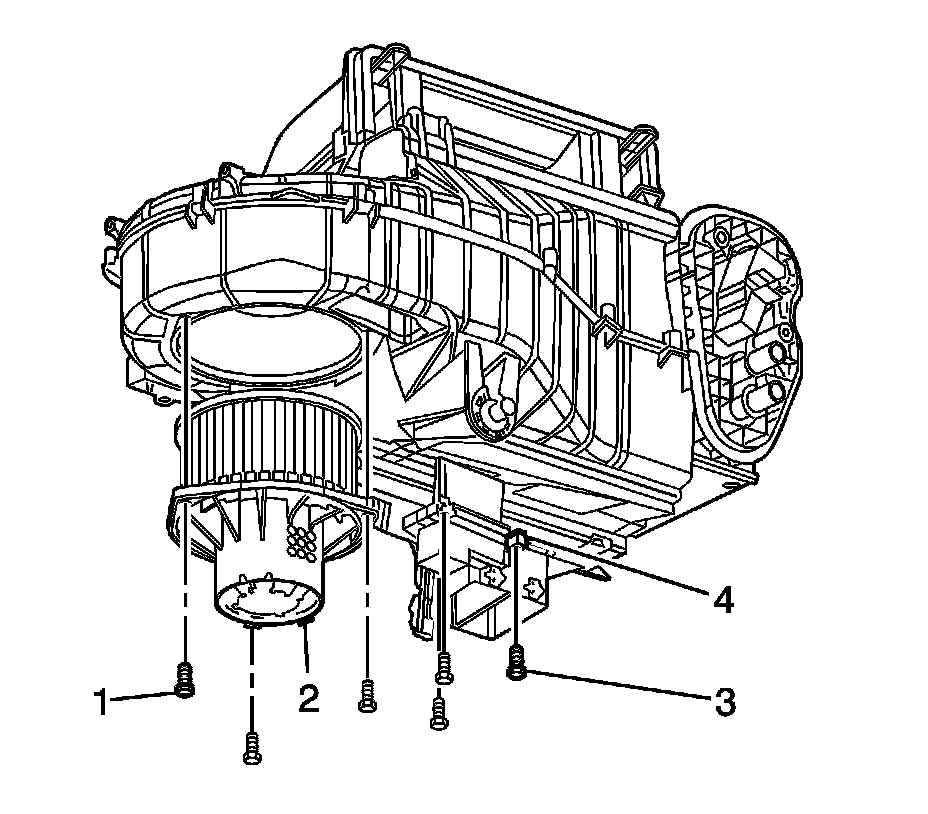

3. Remove the blower motor screws (1).
4. Remove the blower motor (2).

Installation Procedure




1. Install the blower motor (2).

Notice: Refer to Fastener Notice.

2. Install the blower motor screws (1).

Tighten the screws to 1.2 N.m (11 lb in).




3. Connect the blower motor electrical connector (1).
4. Install the right side I/P insulator.
