Control Module HVAC: Diagrams



HVAC Connector End Views

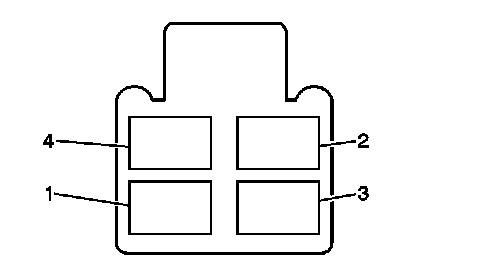

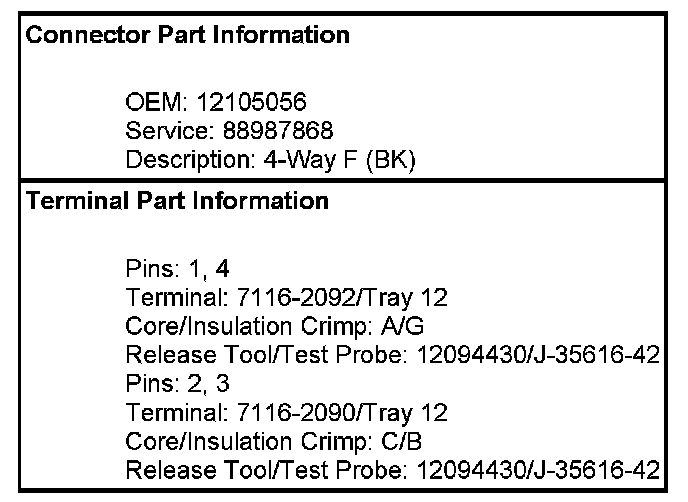

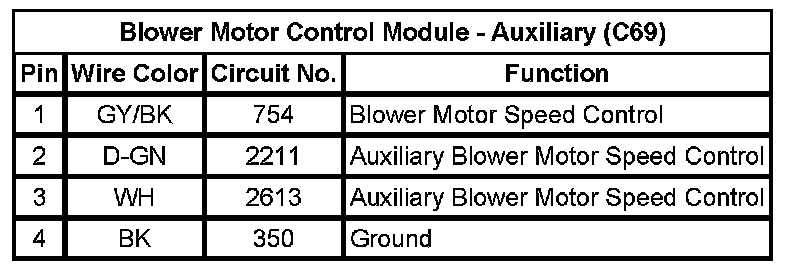

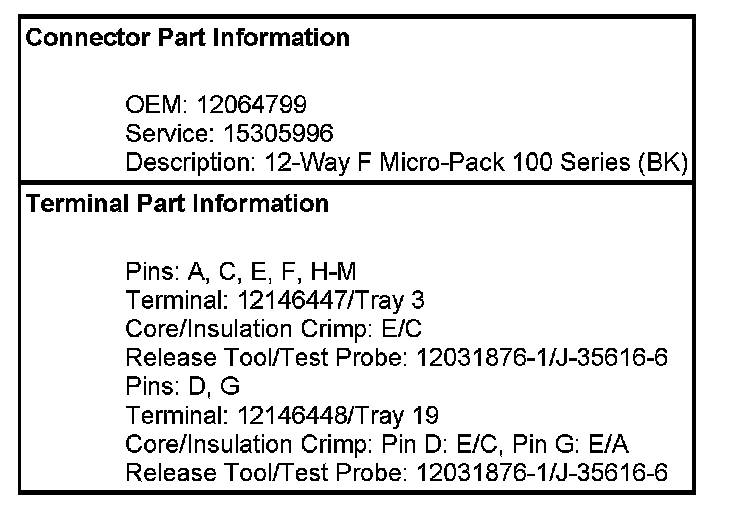

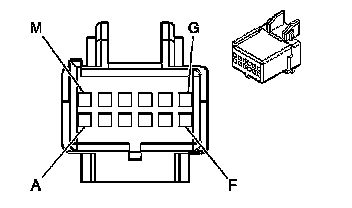

Blower Motor Control Module - Auxiliary (C69)

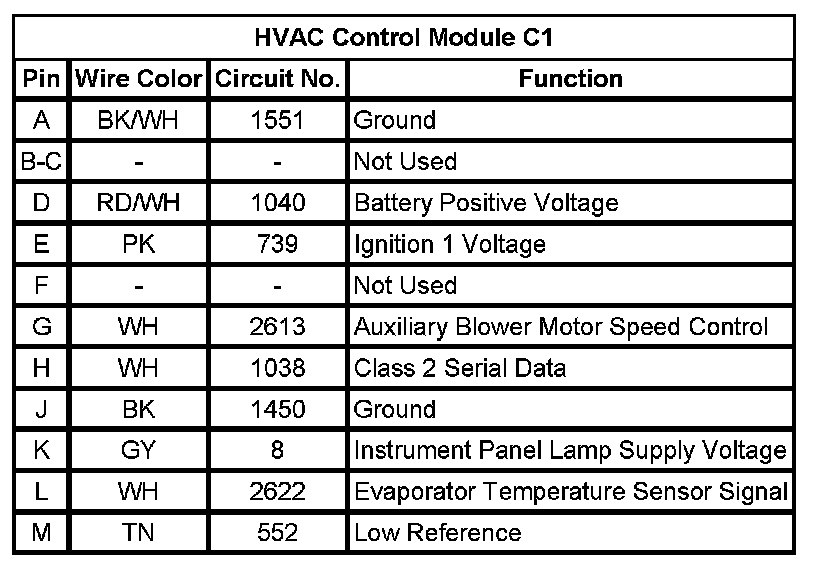

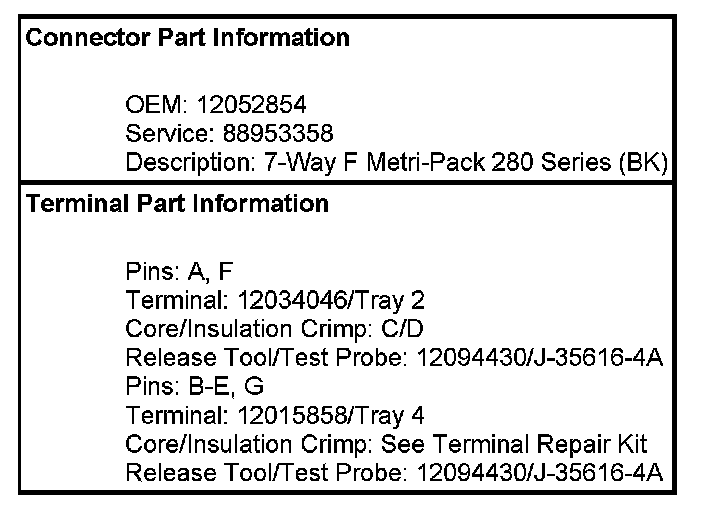

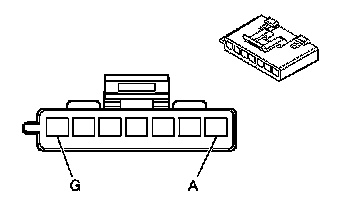

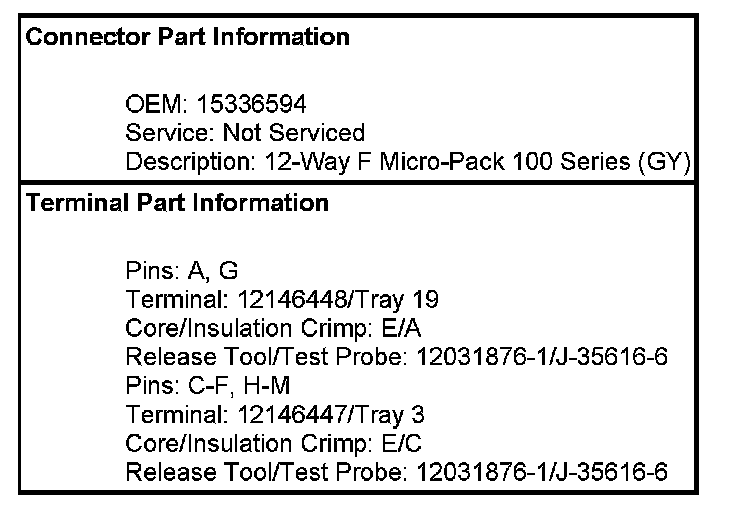

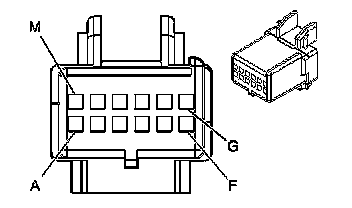

HVAC Control Module C1

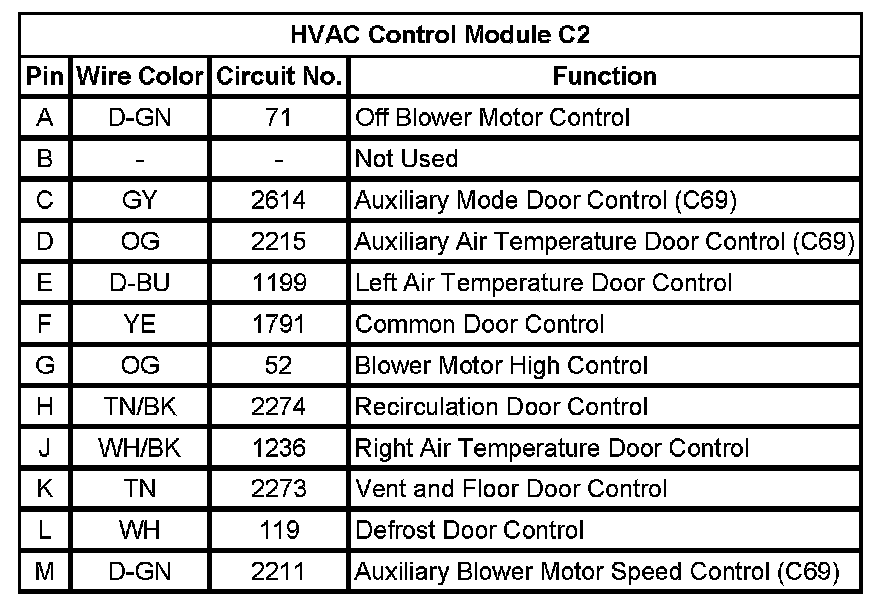

HVAC Control Module C2

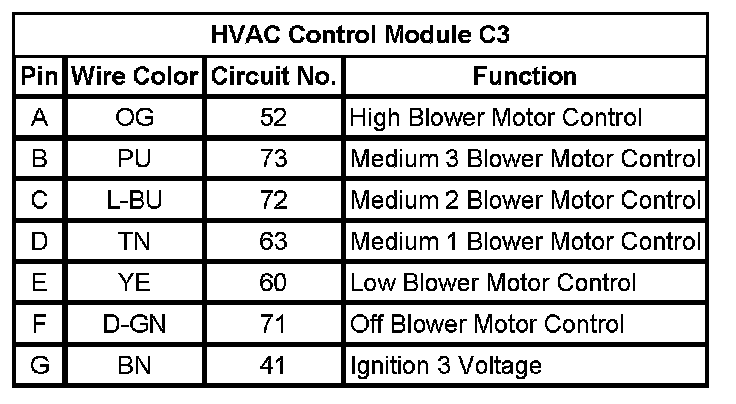

HVAC Control Module C3
