Control Module HVAC: Locations

HVAC Component Views

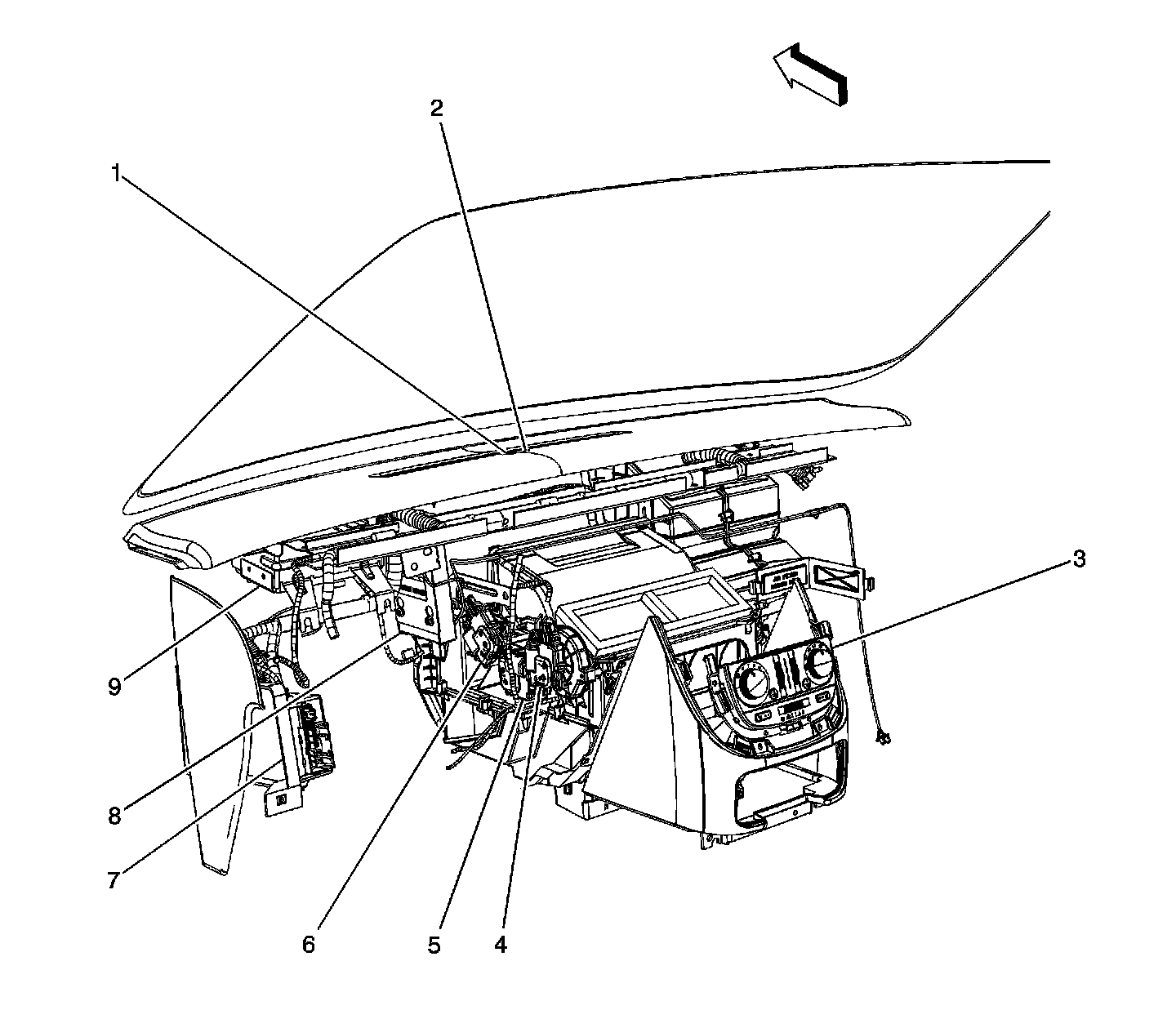

Middle Left Side of I/P Components




1 - Theft Light Emitted Diode (LED) (UA6)
2 - Ambient Light Sensor
3 - HVAC Control Module
4 - Vent and Floor Actuator
5 - Air Temperature Actuator (C60) or Air Temperature Actuator - Left (CJ3)
6 - Defrost Actuator
7 - Body Control Module (BCM)
8 - Digital Radio Receiver (U2K)
9 - Vehicle Communication Unit (VCU) (UE1)

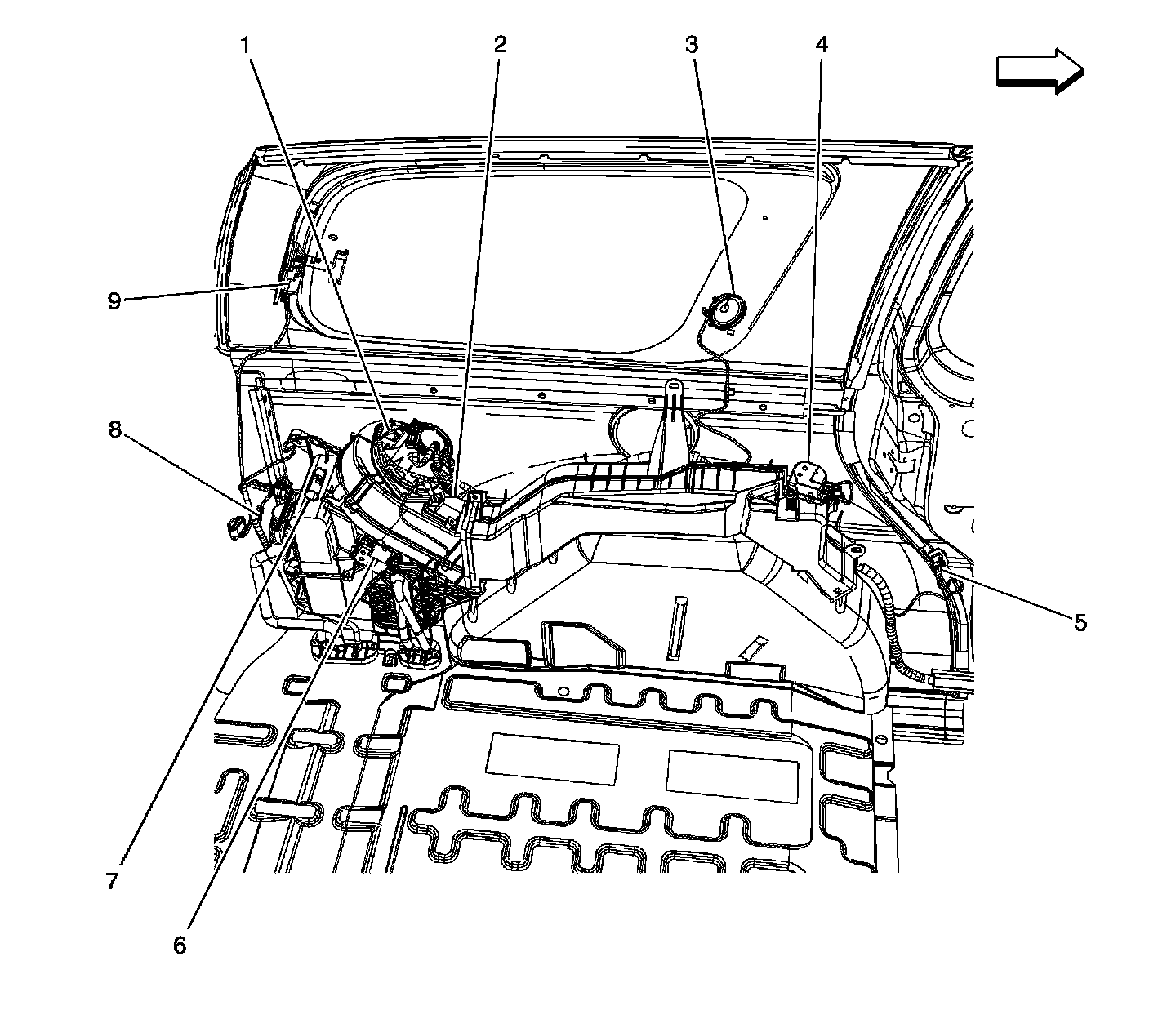

Left Rear Cargo - Body Harness




1 - Blower Motor - Auxiliary (C69)
2 - Blower Motor Control Module - Auxiliary (C69)
3 - Speaker - Rear Tweeter - Left
4 - Mode Actuator - Auxiliary (C69)
5 - Sliding Door Jamb Switch - Left (E59)
6 - Air Temperature Actuator - Auxiliary (C69)
7 - Auxiliary Power Outlet - Rear
8 - G401
9 - Rear Quarter Window Actuator - Left (A20)
