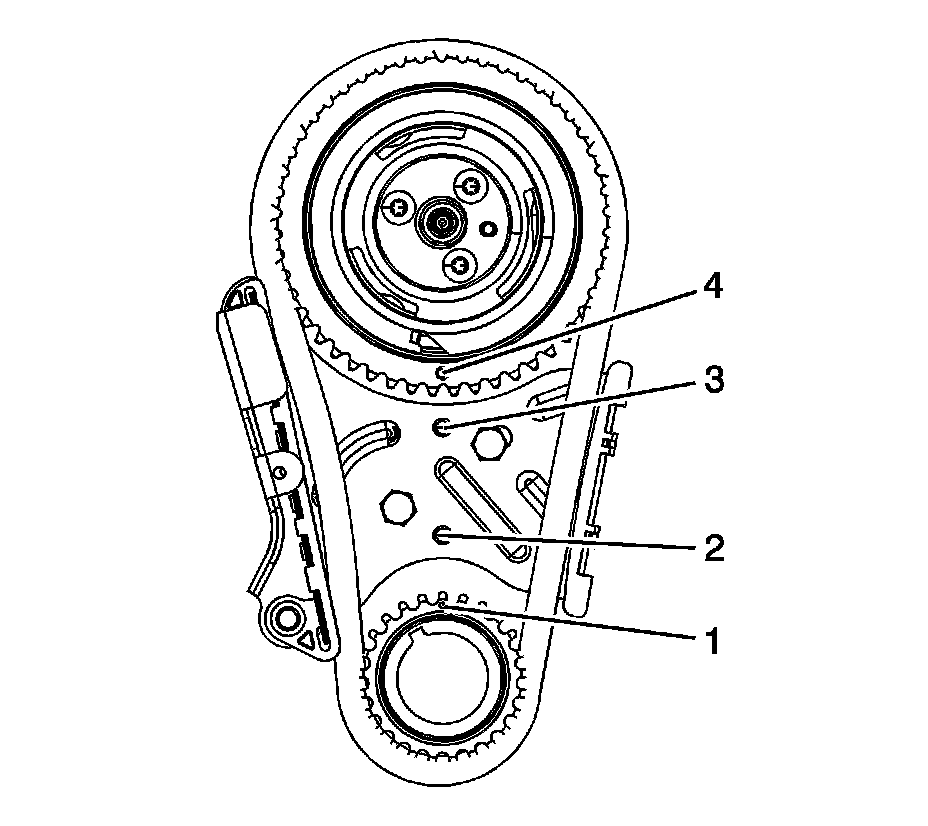

Timing Component Alignment Marks: Locations

Important: Always install a NEW camshaft position actuator filter anytime the camshaft position actuator is removed or installed.

^ Align the crankshaft timing mark (1) to the timing mark on the bottom of the timing chain tensioner (2).
^ Hold the camshaft sprocket with the timing chain hanging down and install the timing chain to the crankshaft gear.
^ Align the timing mark on the camshaft gear (4) with the timing mark on top of the timing chain tensioner (3).
