Engine Views

Power and Grounding Component Views

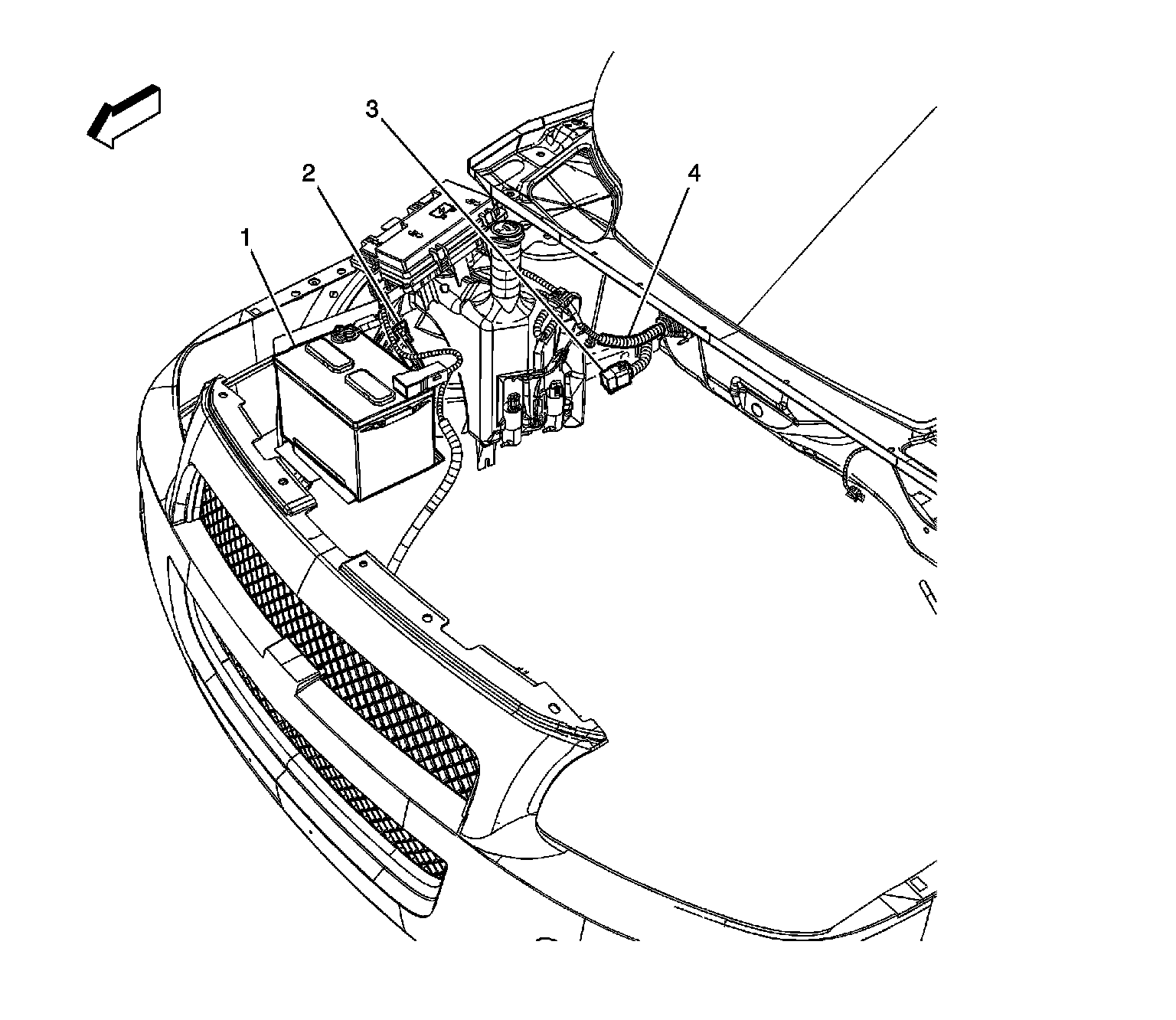

Right Side of Engine Compartment




1 - Battery
2 - C108 I/P Harness to Battery Cable Harness
3 - Rear Window Washer Fluid Pump Relay
4 - I/P Harness

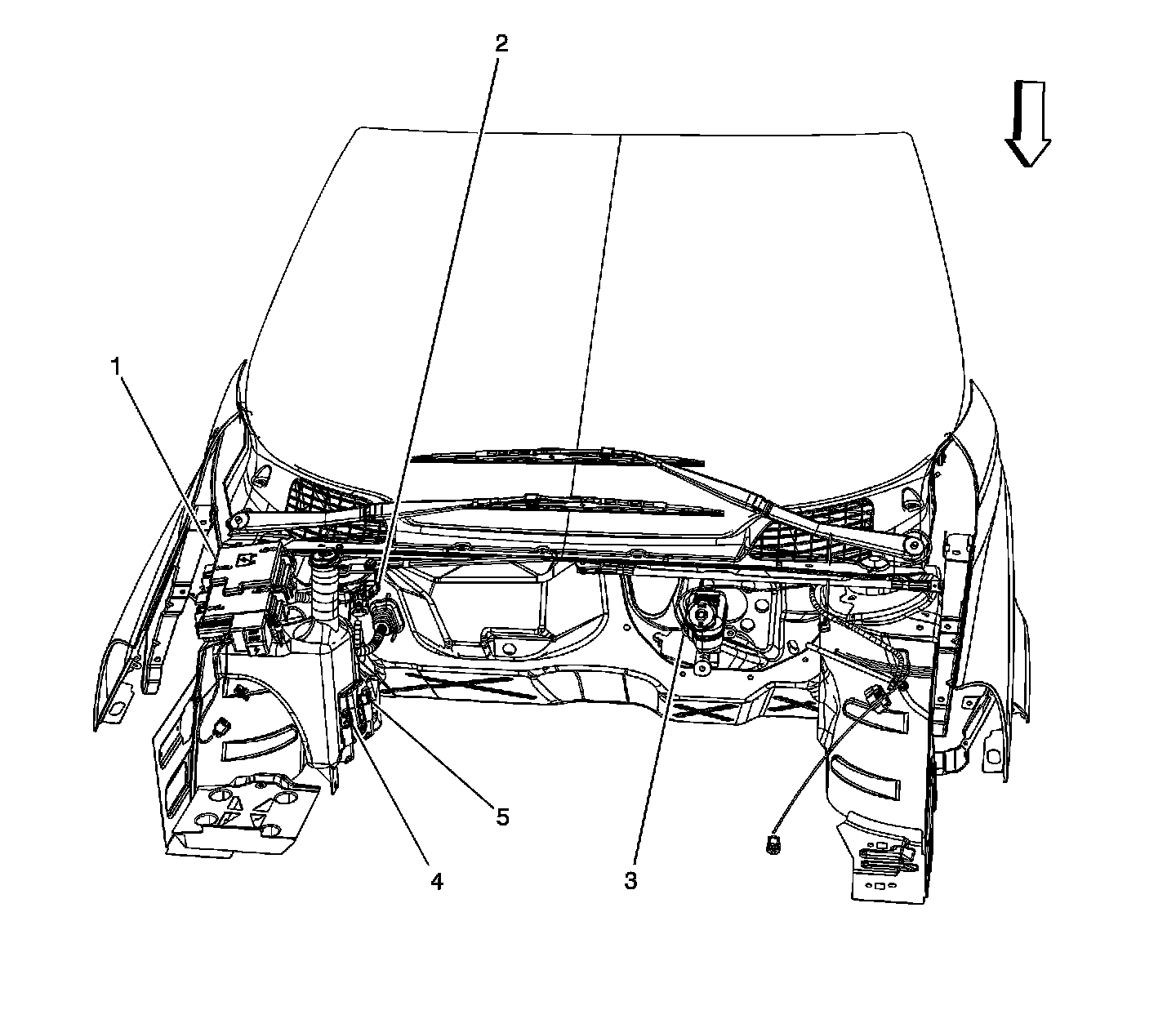

Engine Compartment Components - I/P Harness

Engine Compartment Components - I/P Harness:

1 - Fuse Block - Underhood
2 - Windshield Wiper Motor
3 - Brake Fluid Level Switch
4 - Windshield Washer Fluid Pump
5 - Rear Window Washer Fluid Pump

Engine Electrical Components




1 - Fuse Block - Underhood (Battery Stud)
2 - G102
3 - Battery Current Sensor
4 - Generator
5 - Automatic Transmission
6 - G113
7 - G115 (Battery Cable)
8 - G115
9 - Starter Motor
10 - Battery
