Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure




1. Remove the insulator panel.
2. Remove the connector position assurance (CPA) retainer.

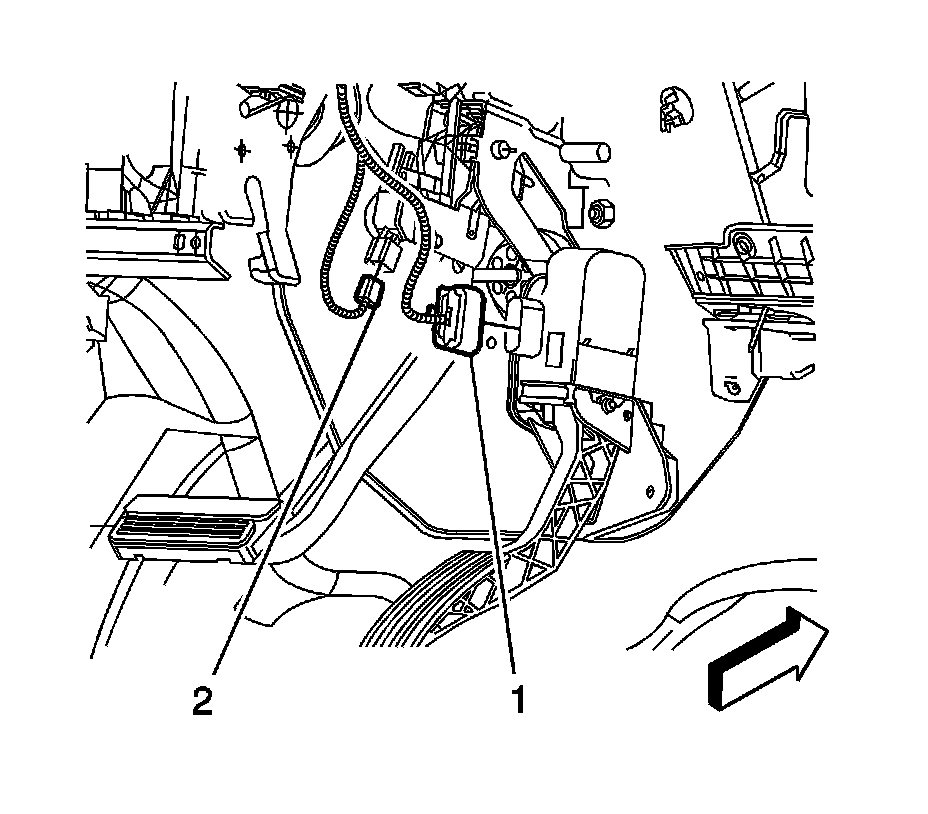

3. Disconnect the instrument panel (I/P) harness electrical connector (1) from the accelerator pedal.




4. Remove the accelerator pedal bolts.
5. Remove the accelerator pedal (2).

Installation Procedure

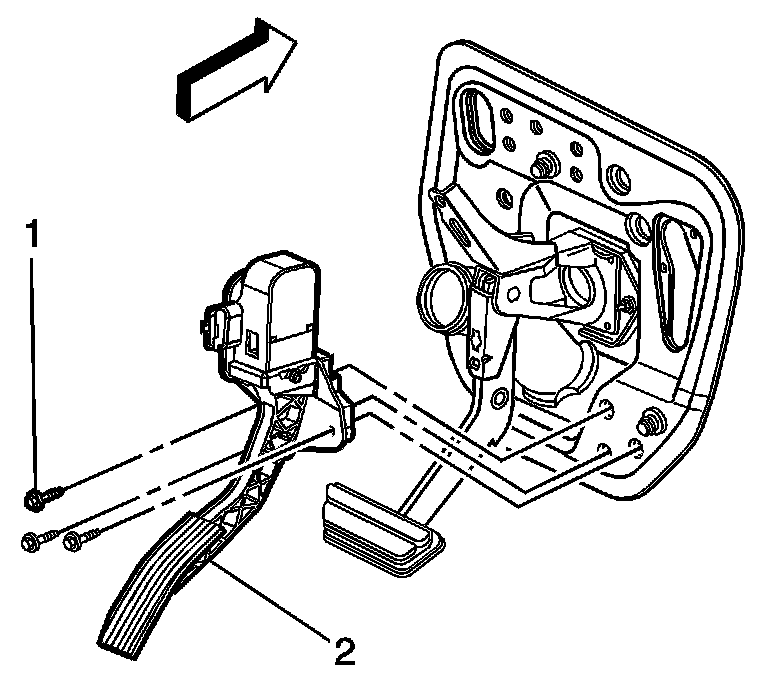

1. Install the accelerator pedal (2).

Notice: Refer to Fastener Notice.

2. Install the accelerator pedal bolts (1).

Tighten the bolts to 10 N.m (89 lb in).




3. Connect the I/P harness electrical connector (1) to the accelerator pedal.
4. Install the CPA retainer.
5. Install the insulator panel.
6. Verify the operation of the accelerator pedal.
