Data Link Connector: Service and Repair

Data Link Connector Replacement

Removal Procedure

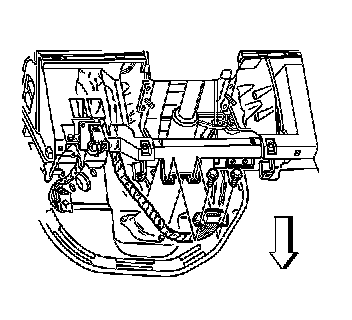

1. Remove the bolts/screws from the data link connector (DLC).
2. Remove the lower DLC.

Installation Procedure




1. Place the DLC into position.

Notice: refer to Fastener Notice.

2. Install the bolts/screws to the DLC.

Tighten the bolts/screws to 2 N.m (18 lb in).
