Electronic Throttle Control Module: Locations

Engine Controls Component Views

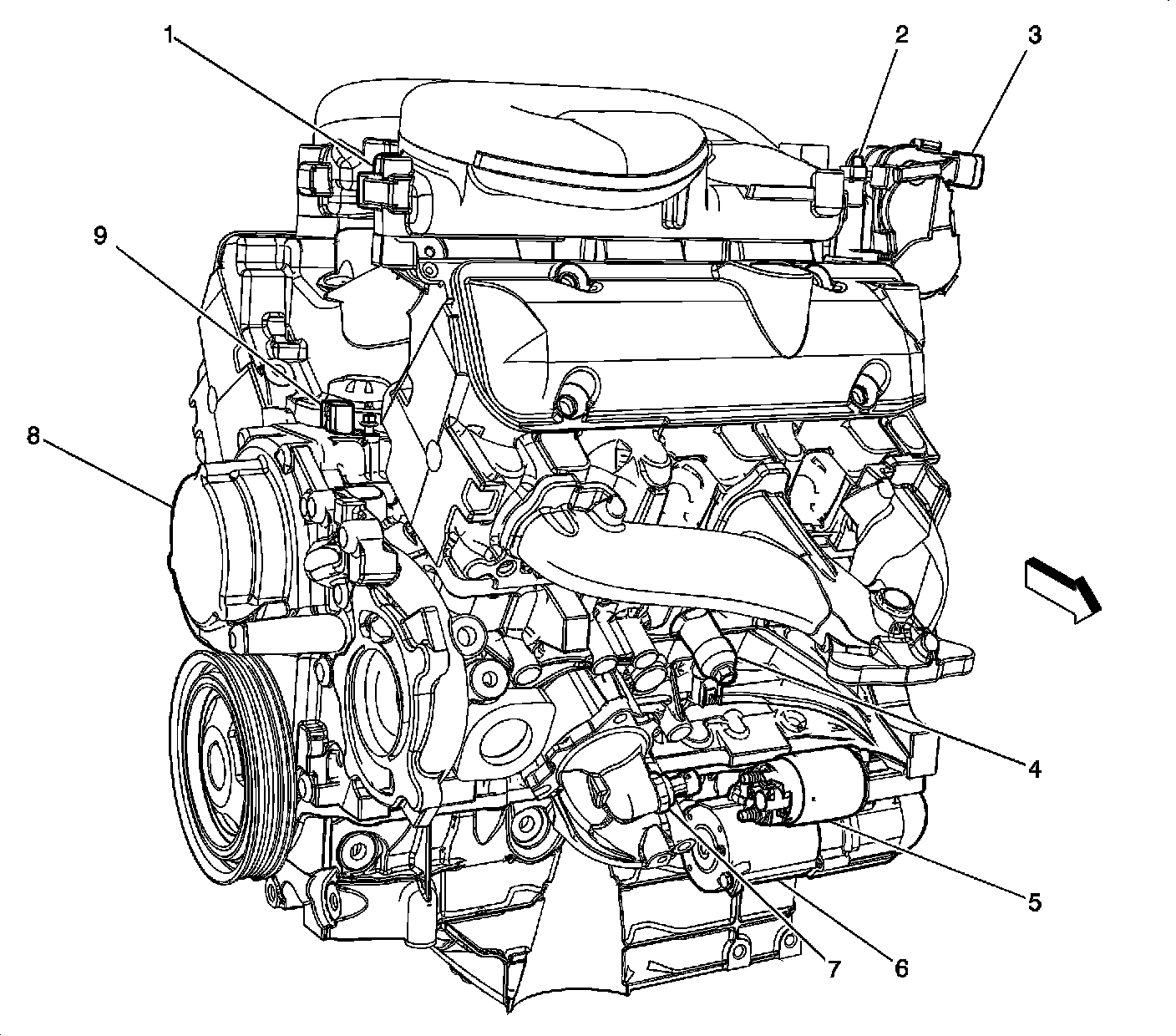

Front of the Engine (LGD/LZ9)




1 - Intake Manifold Tuning (IMT) Solenoid Valve
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Throttle Actuator Control (TAC) Module
4 - Knock Sensor (KS) 2
5 - Starter Solenoid
6 - Starter Motor
7 - Engine Oil Pressure (EOP) Sensor
8 - Camshaft Position (CMP) Actuator Solenoid
9 - Camshaft Position (CMP) Sensor

Rear of the Engine (LGD/LZ9)




1 - Throttle Actuator Control (TAC) Module
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Ignition Control Module (ICM)
4 - Heated Oxygen Sensor (HO2S) 1
5 - Knock Sensor (KS) 1
6 - Block Heater
7 - Crankshaft Position (CKP) Sensor
8 - Engine Oil Level Switch
9 - Engine Coolant Temperature (ECT) Sensor
