Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Removal Procedure




1. Disconnect the negative battery cable.
2. Raise and support the vehicle.
3. Remove the radiator air baffle.

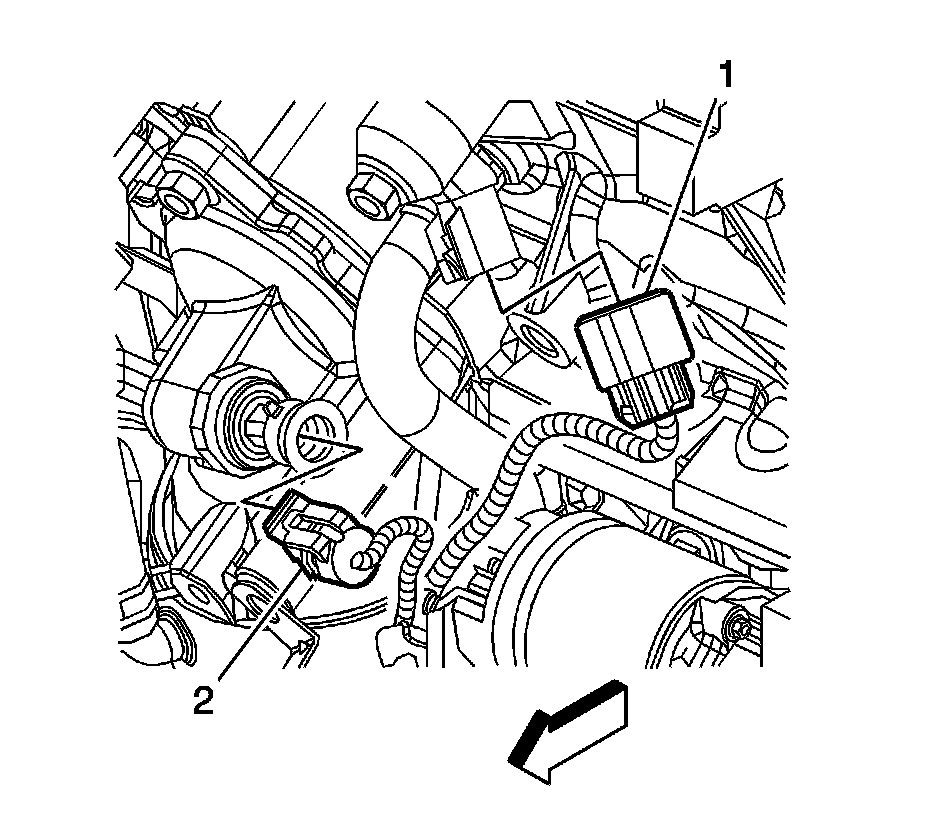

4. Disconnect the engine harness electrical connector (2) from the engine oil pressure sensor.

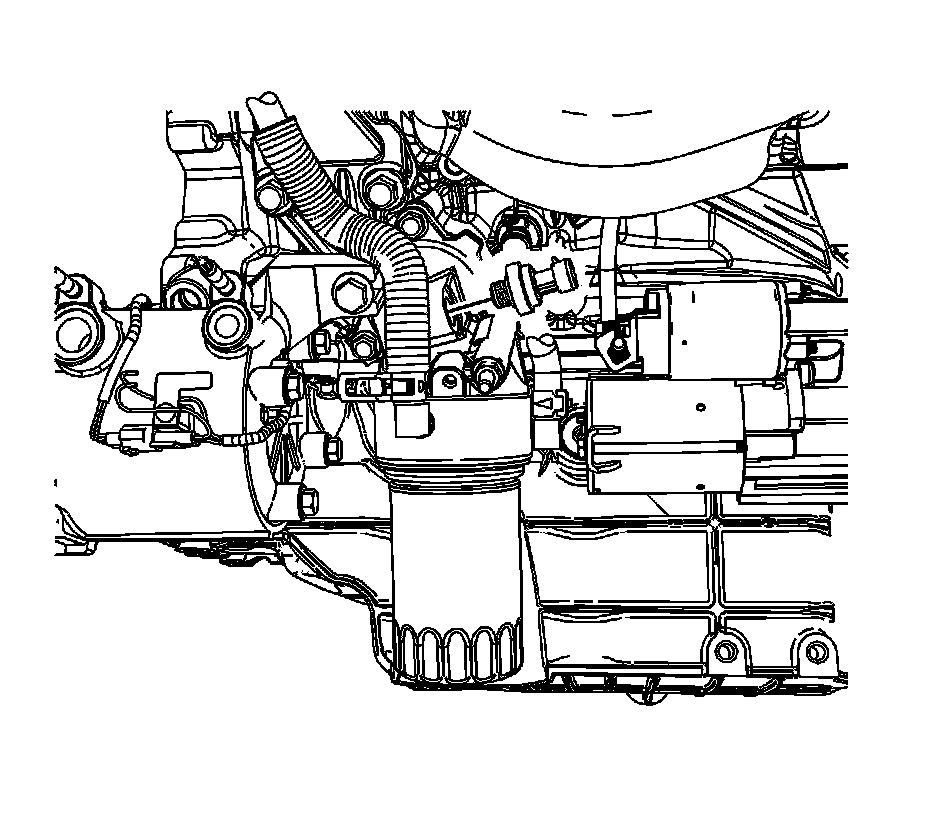

5. Remove the engine oil pressure sensor.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the engine oil pressure sensor.

Tighten the sensor to 16 N.m (12 lb ft).




2. Connect the engine harness electrical connector (2) to the engine oil pressure sensor.
3. Install the radiator air baffle.
4. Lower the vehicle.
5. Connect the negative cable.
