Engine Control Module: Locations

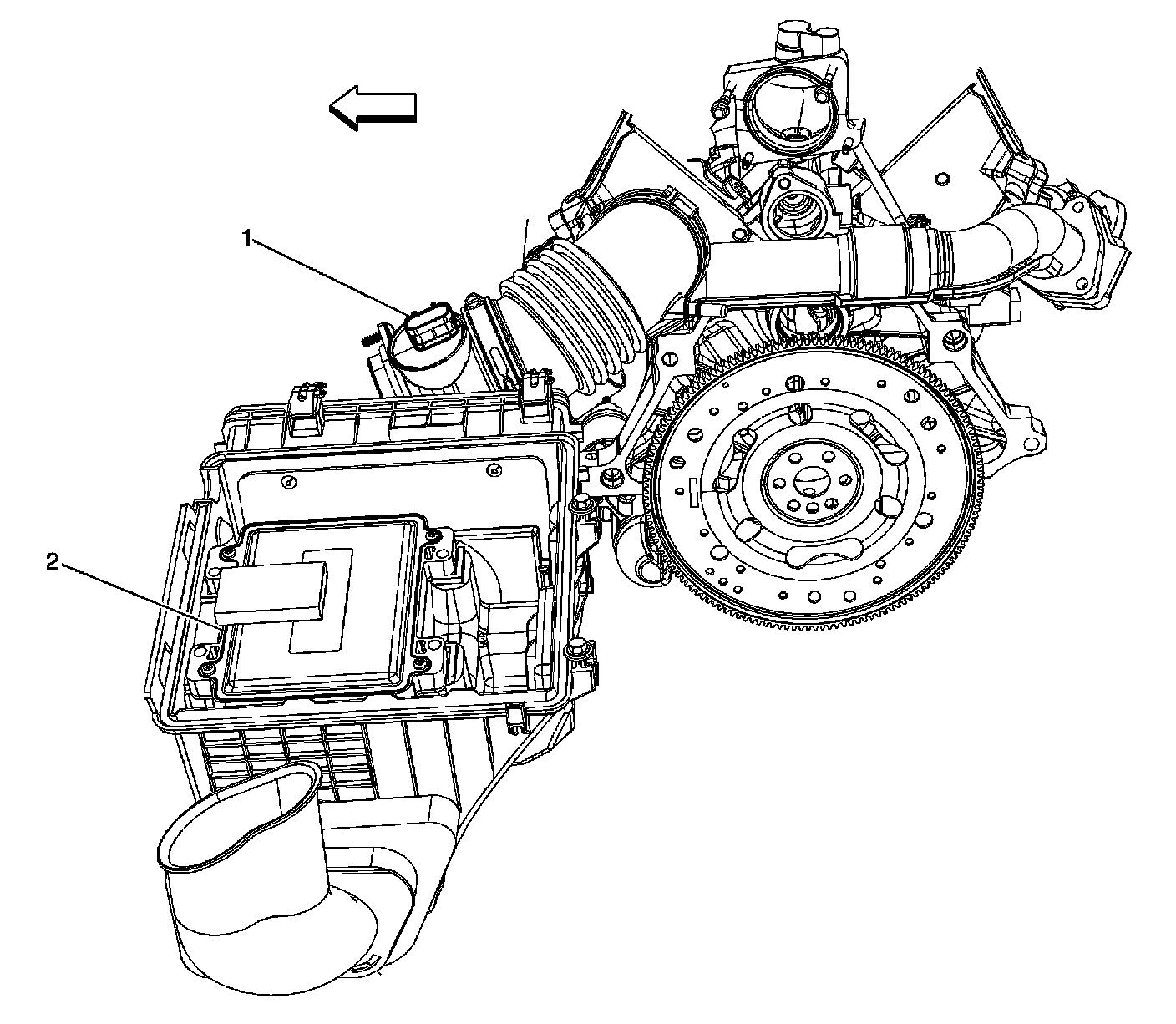

Engine Controls Component Views

Air Intake System (LGD/LZ9)




1 - Mass Air Flow (MAF)/ Intake Air Temperature (IAT) Sensor
2 - Engine Control Module (ECM)
