Intake Manifold

Throttle Body Bolt/Nut 10 N.m (89 lb in)
Throttle Body Stud 6 N.m (53 lb in)

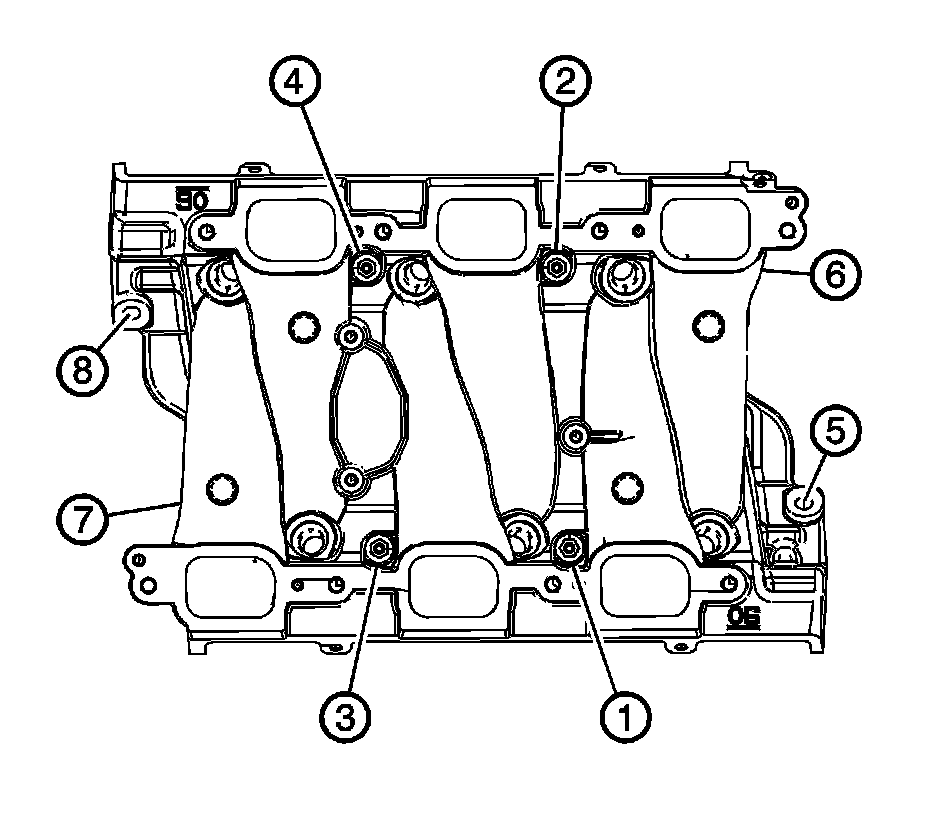

Lower Intake Manifold Bolt - Center
First Pass 13 N.m (10 lb ft)
Final Pass 20 N.m (15 lb ft)





Lower Intake Manifold Bolt - Corner
First Pass 13 N.m (10 lb ft)
Final Pass 25 N.m (18 lb ft)

Upper Intake Manifold Bolt/Stud 25 N.m (18 lb ft)
