Connector Views
Engine Electrical Connector End Views
Battery Current Sensor

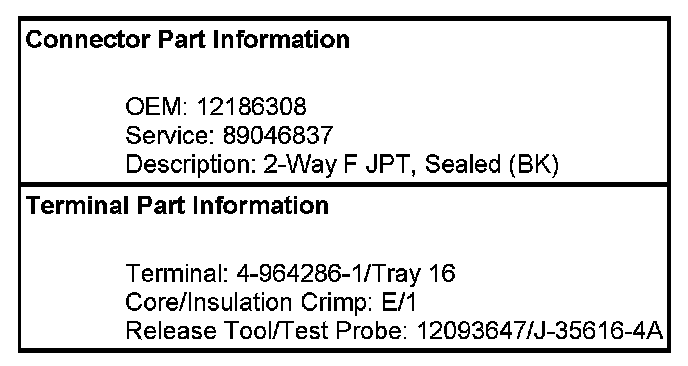

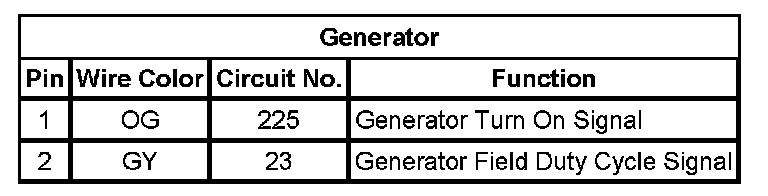

Generator

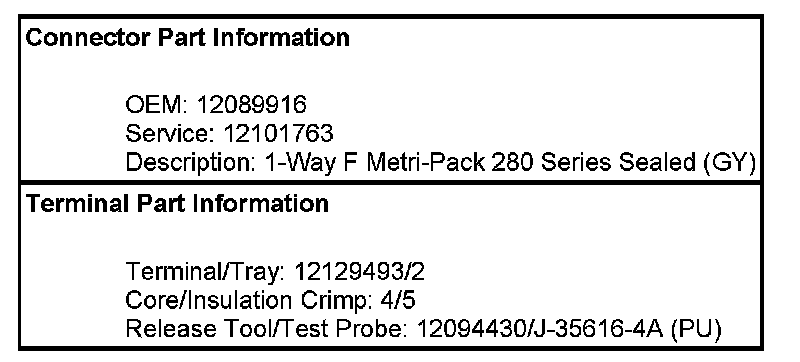

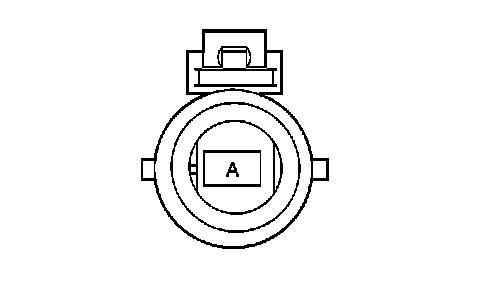

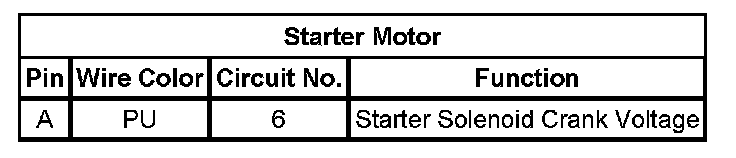

Starter Motor
