Front Side Door Window Weatherstrip Replacement

Front Side Door Window Weatherstrip Replacement

Removal Procedure

1. Remove the front door trim panel.
2. Remove the front door water deflector.
3. Remove the front door window.

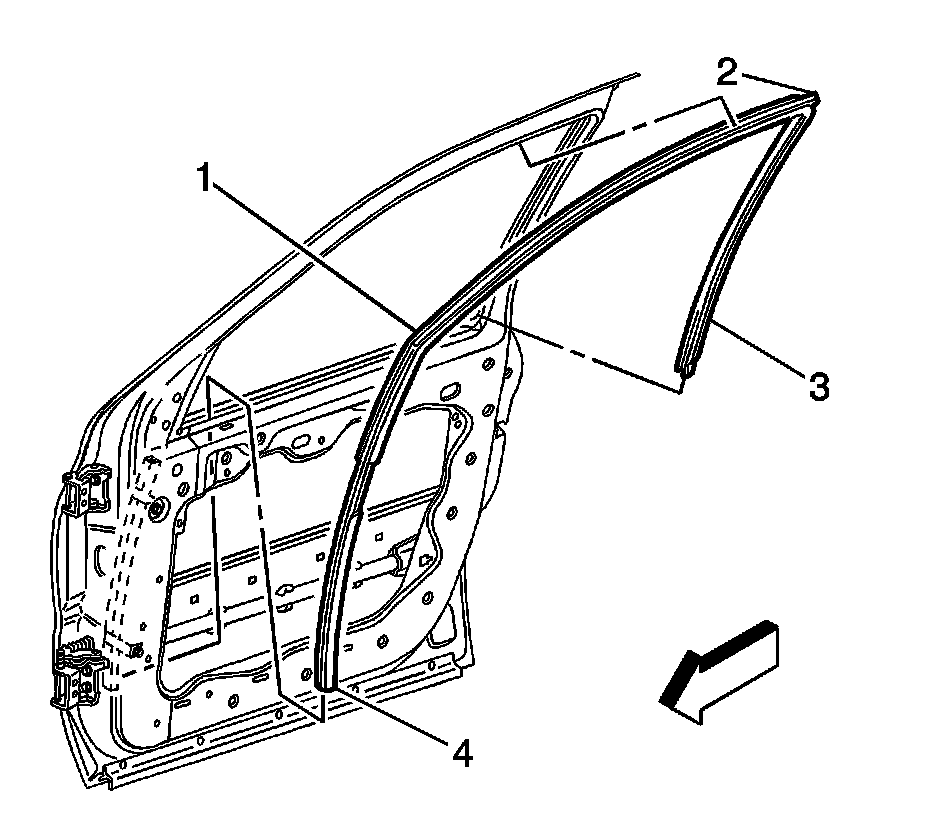

4. Remove the weatherstrip (2) from the door frame.

Installation Procedure




1. Position the front weatherstrip edge (4) to the door frame channel.
2. Secure the weatherstrip beginning at (4) and working around the inside of the window frame back to (3).
3. Ensure the weatherstrip at (1, 2) is secured to the corners of the upper window frame.
4. Install the front door window.
5. Install the front door water deflector.
6. Install the front door trim panel.
