Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| ECM/ABS Harness Ground | On rear of engine. |
| G101 | Under ECM. |
| G102 | Behind left headlight, left of battery. |
| G103 | On starter mounting bolt. |
| G104 | Behind right headlight, under air cleaner. |
| G105 | On engine block, near starter motor. |
| G201 | Behind left side of ashtray. |
| G202 (10) | Behind right side of ashtray. See Figure. |
| G203 (21) | Under left side of center console. See Figure. |
| G301 | Behind right kick panel. |
| G401 | On left side of rear compartment panel. |
| G402 (Hatchback) | On right side of rear compartment panel. |

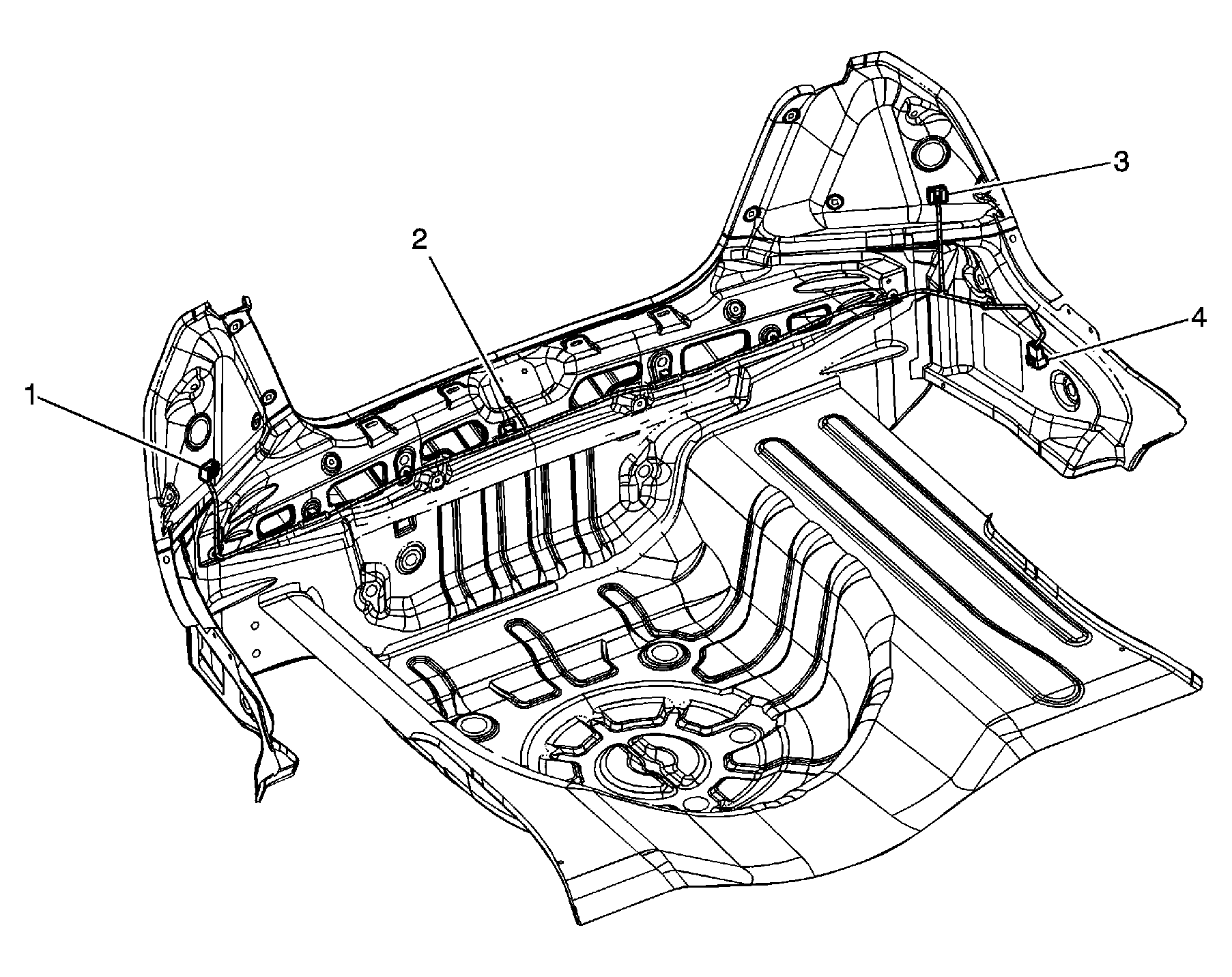

| G402 (Notchback) (2) | In rear compartment, near deck lid striker. See Figure. |
