Fluid Pressure Sensor/Switch, A/T

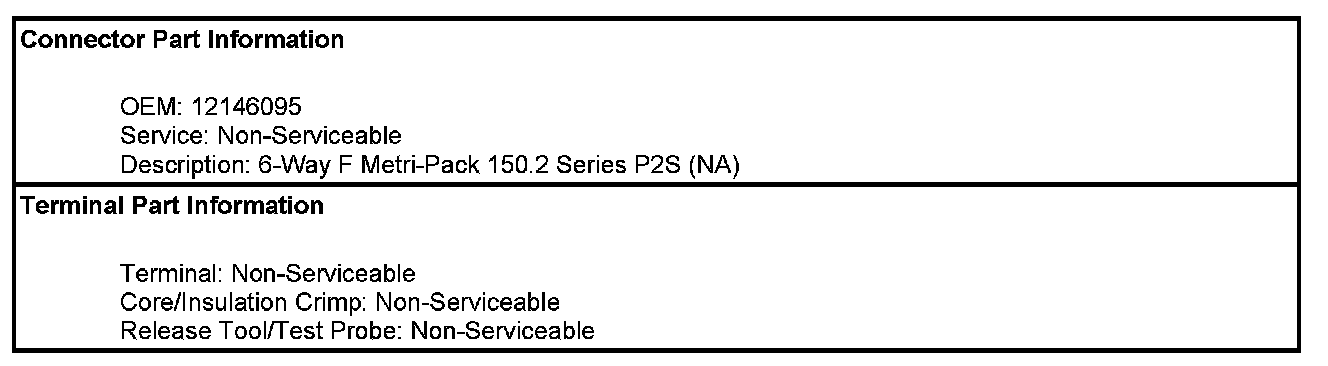

Component Connector End Views

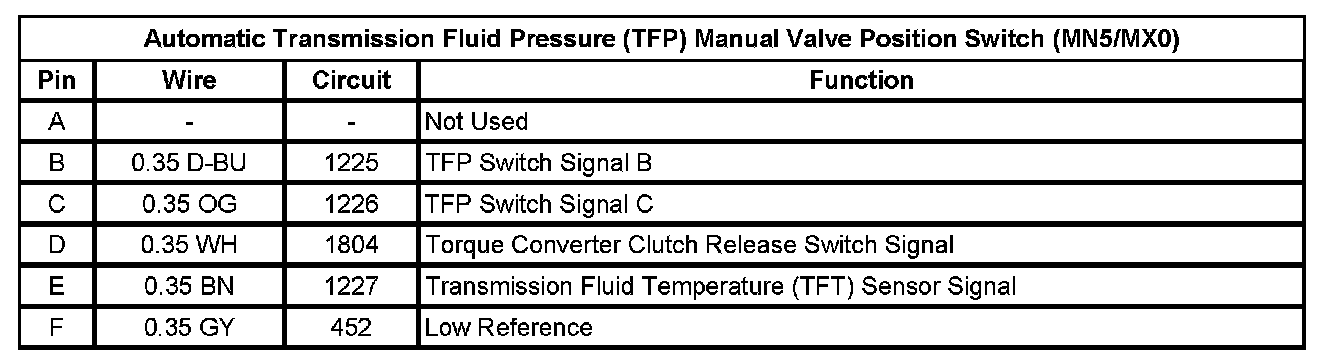

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (MN5/MX0)
