Fuse Block - Underhood
Electrical Center Identification Views

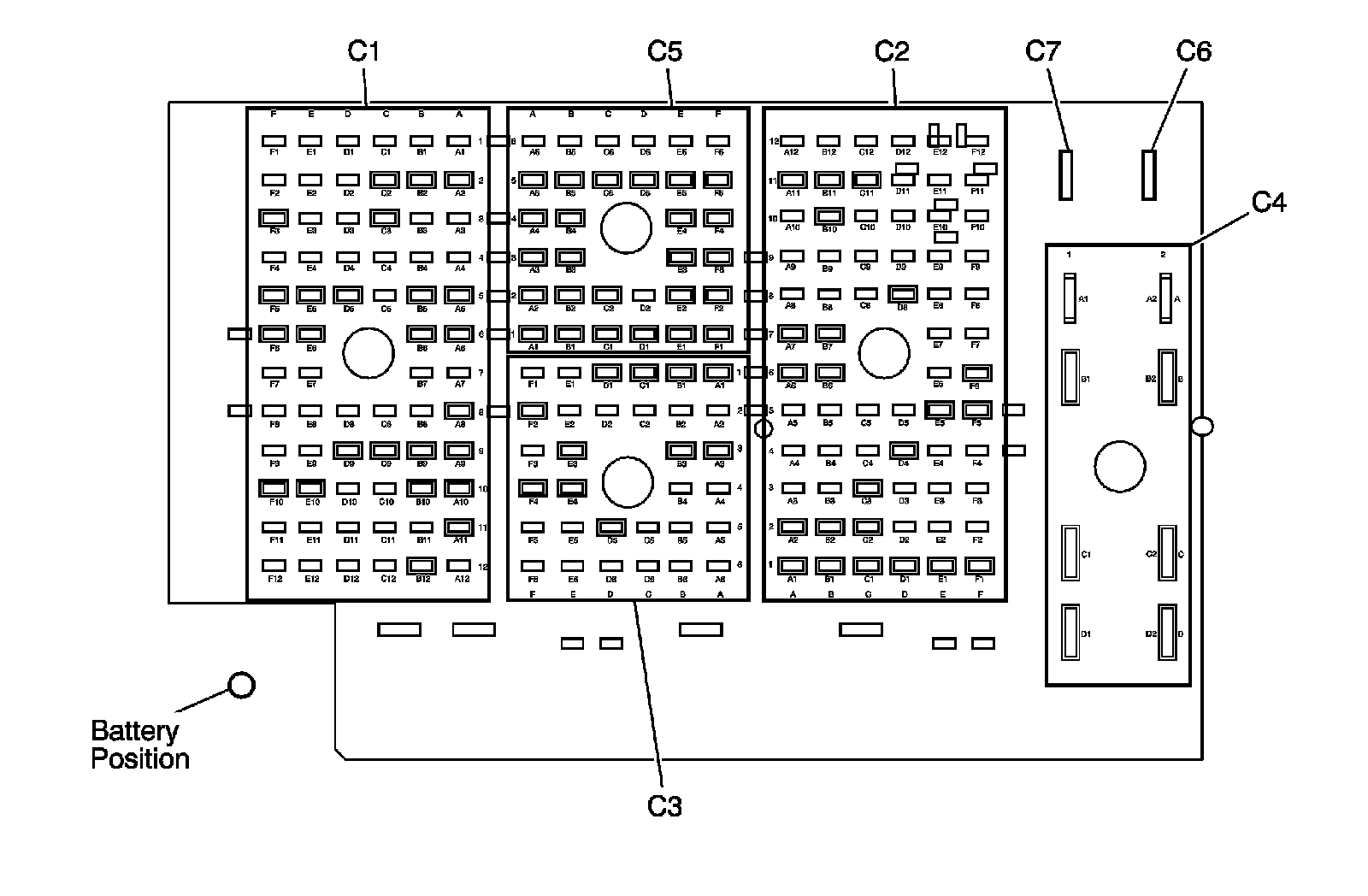

Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

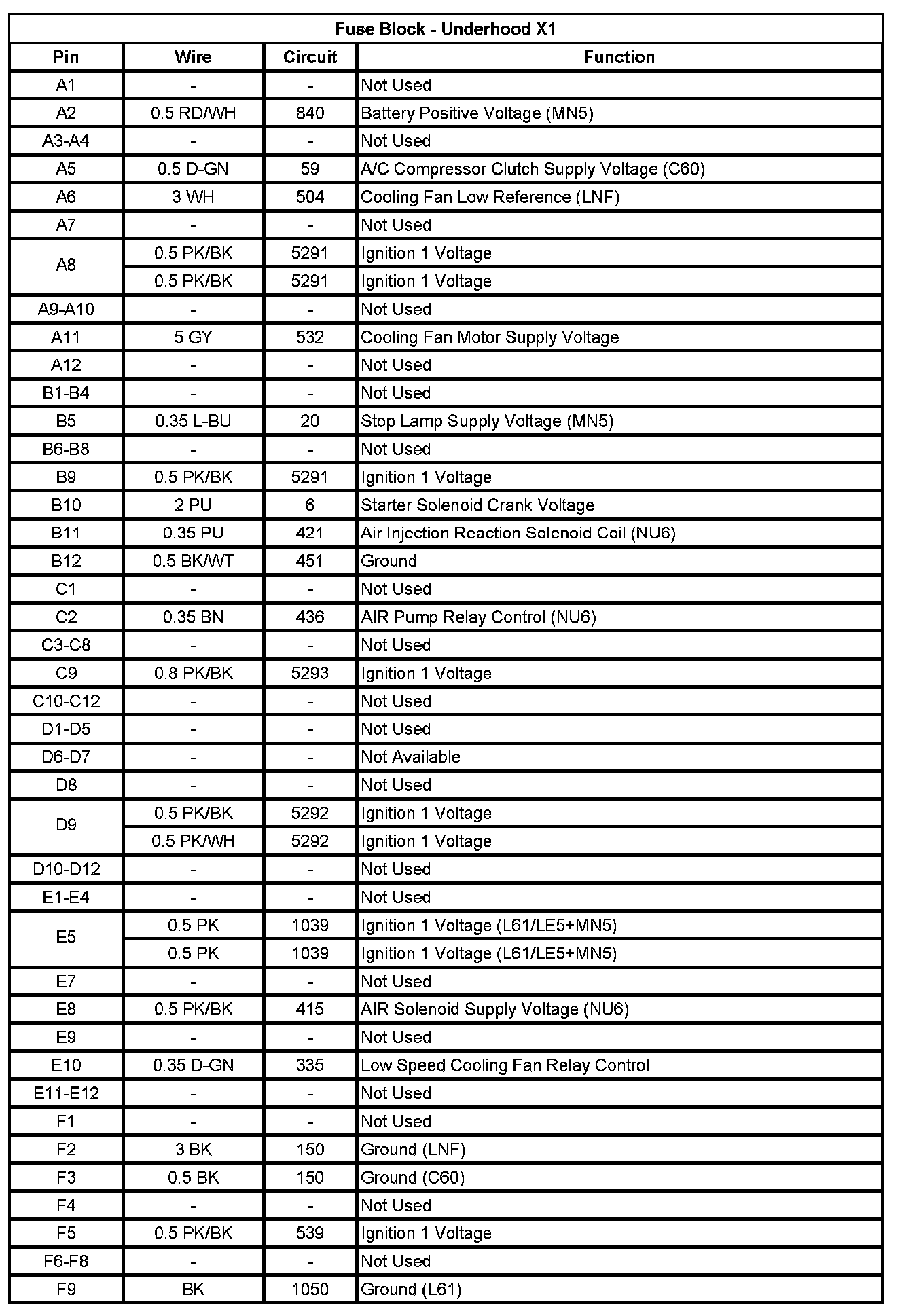

Fuse Block - Underhood X1
Fuse Block - Underhood X1 (Pin A1 To F9):
Fuse Block - Underhood X1 (Pin F10 To F12):

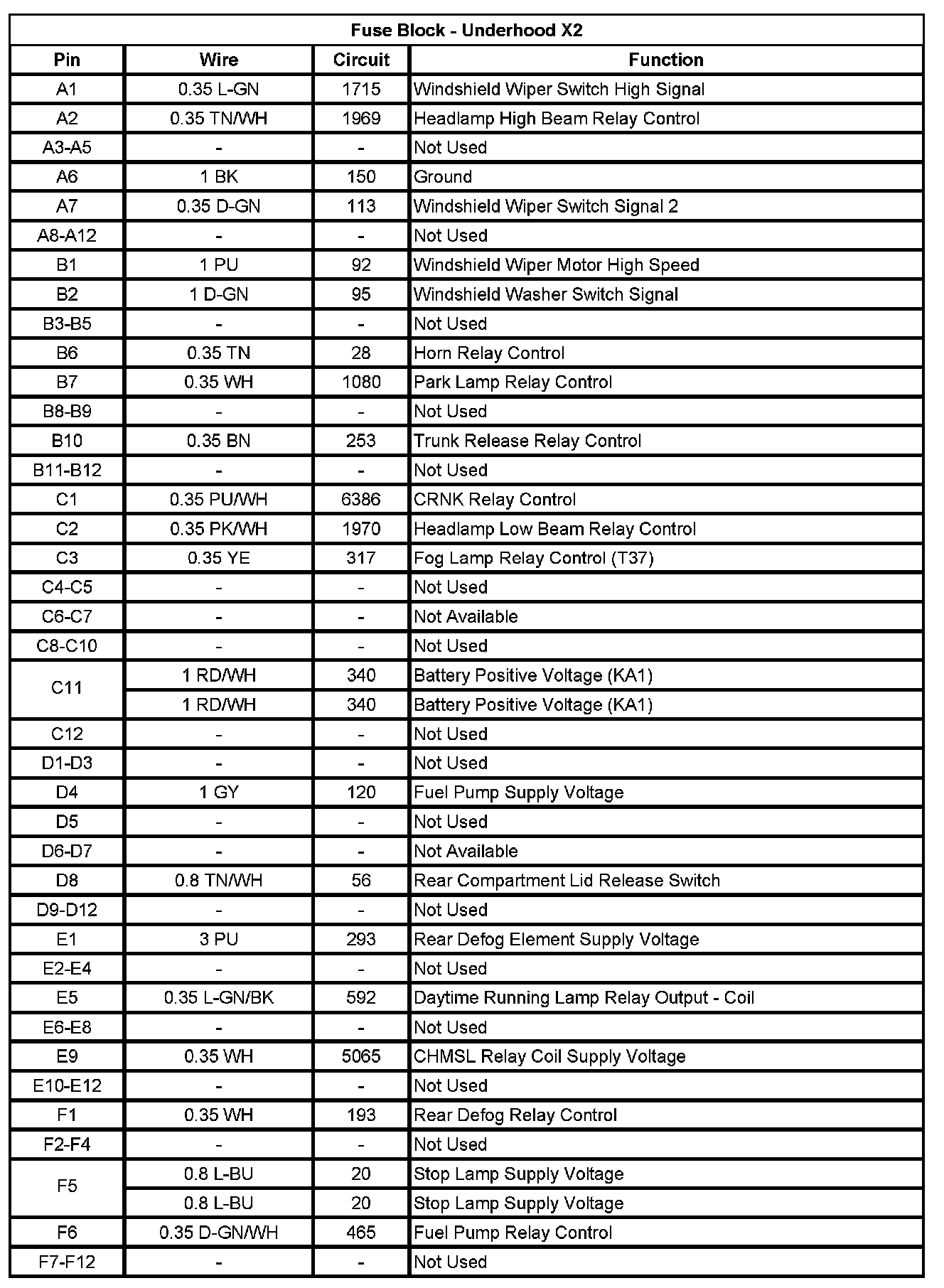

Fuse Block - Underhood X2

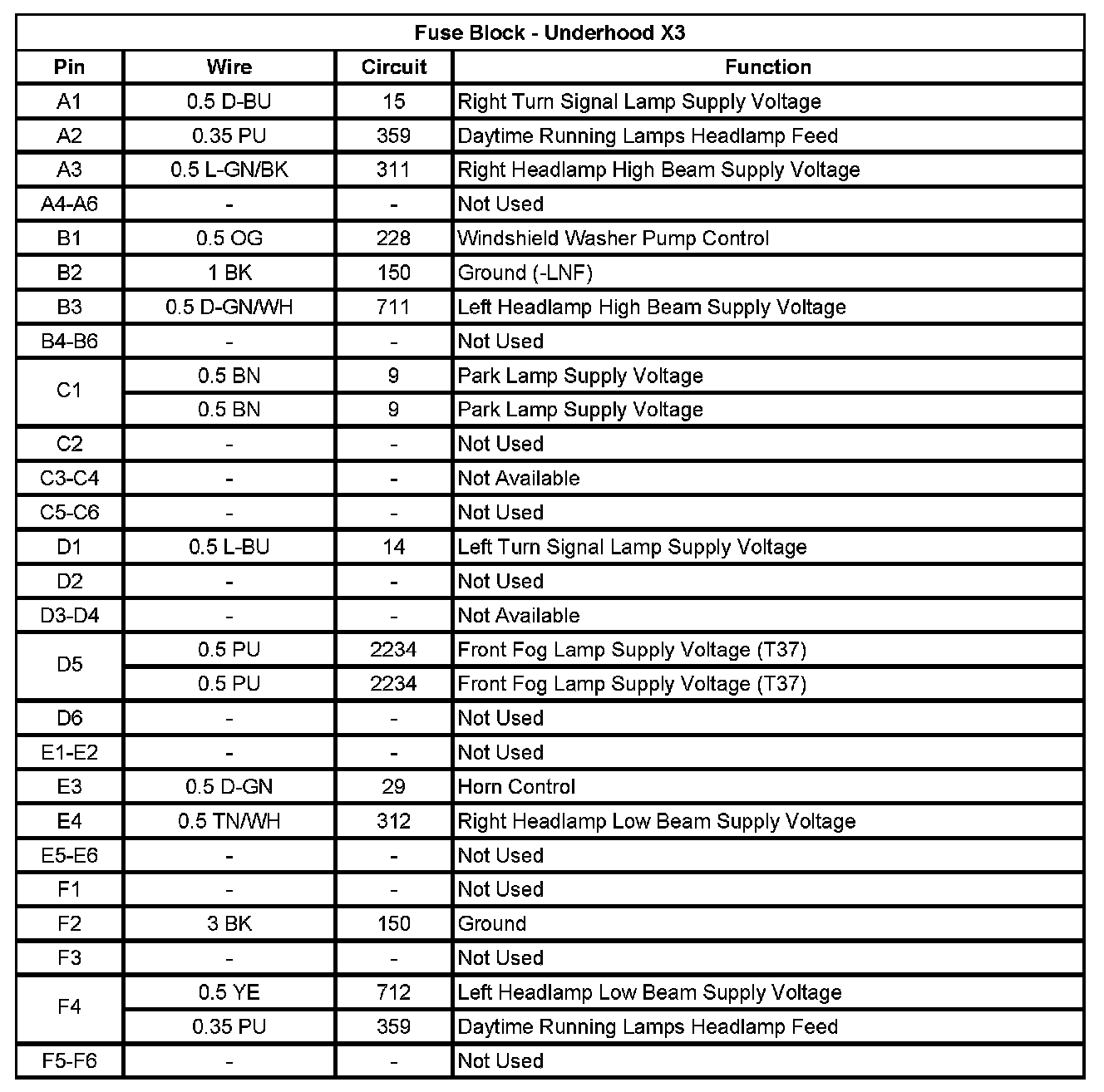

Fuse Block - Underhood X3
Fuse Block - Underhood X4

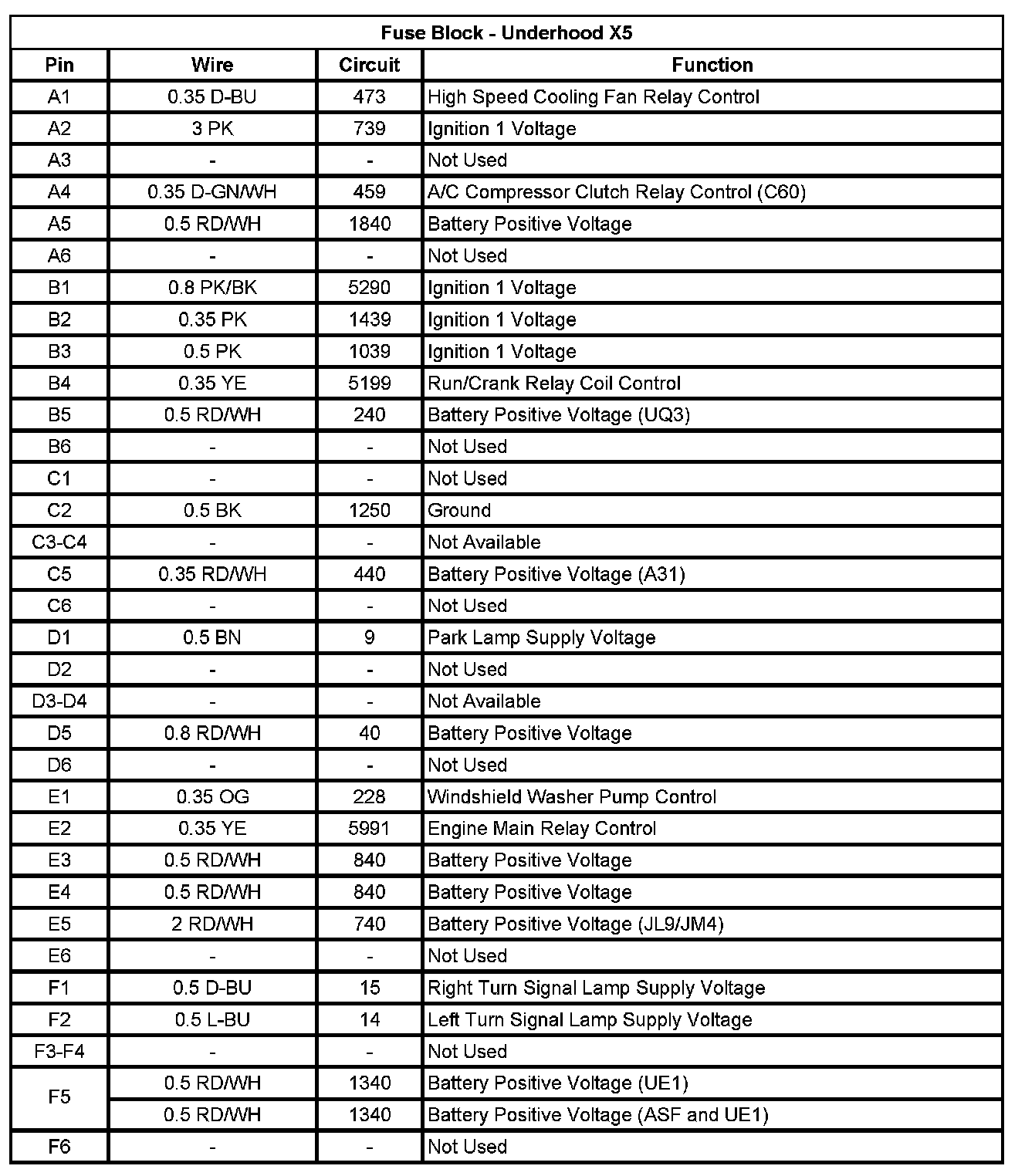

Fuse Block - Underhood X5
Fuse Block - Underhood X6
Fuse Block - Underhood X7 (L61+NU6)
