System Specifications





Clutch Cover To Flywheel Bolts
MU3 30 N.m (22 lb ft)*
M86 24 N.m (18 lb ft)*

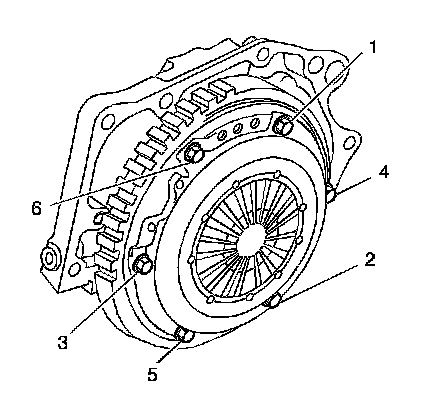

*Tighten the clutch cover to flywheel bolts in the sequence shown.
