Alternator



Component Connector End Views

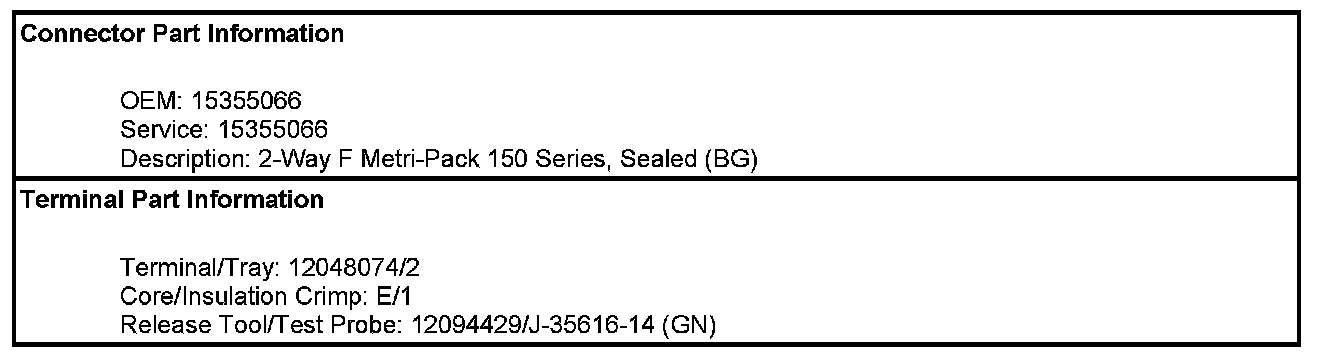

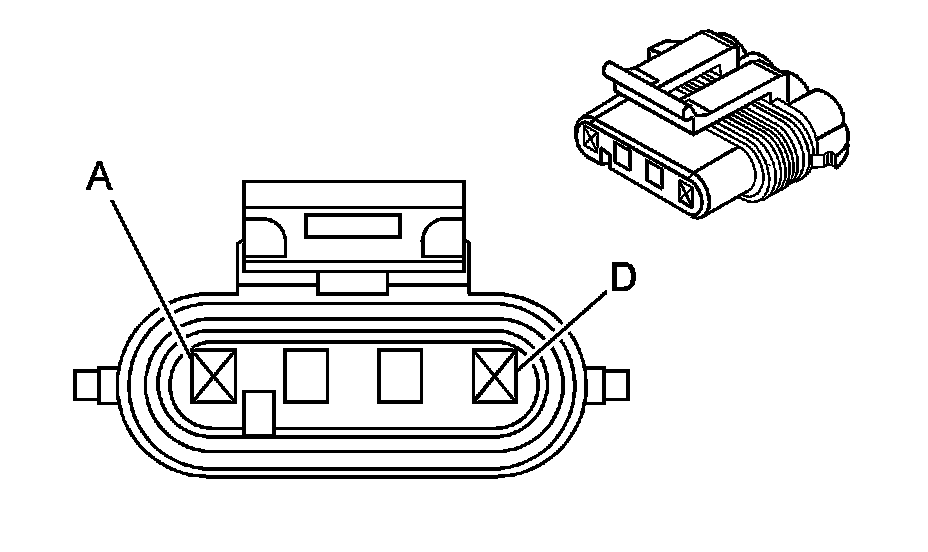

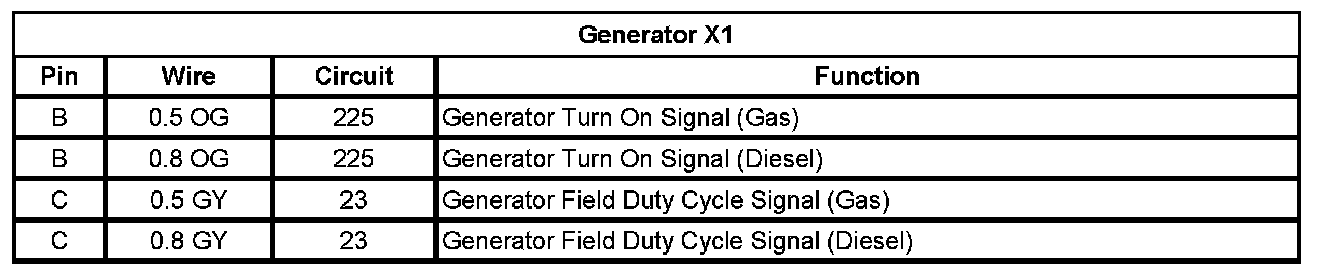

Generator X1

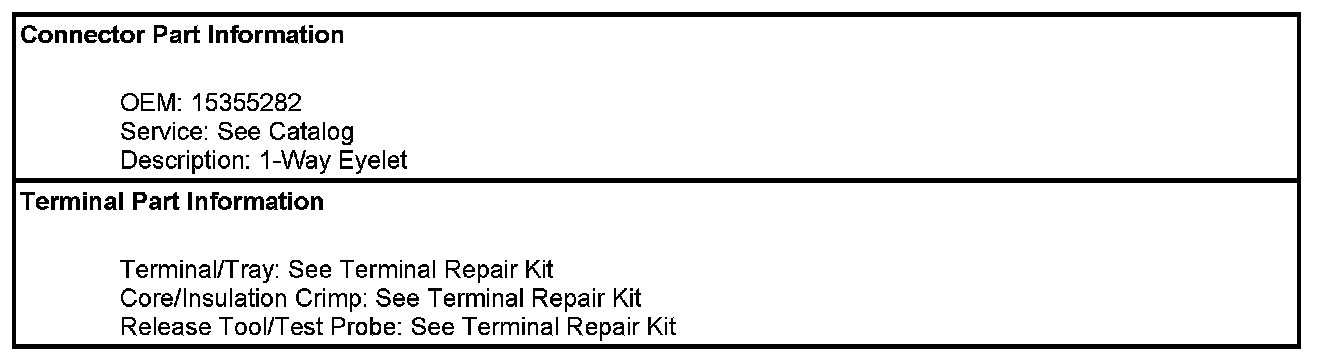

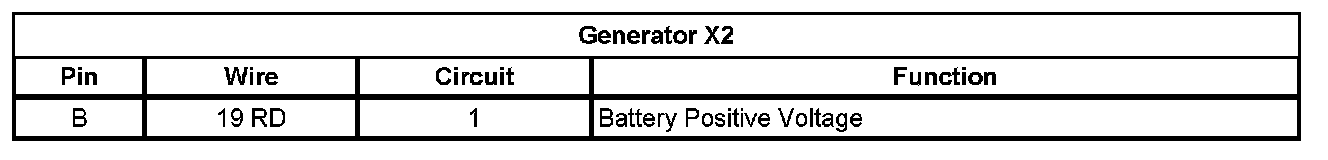

Generator X2

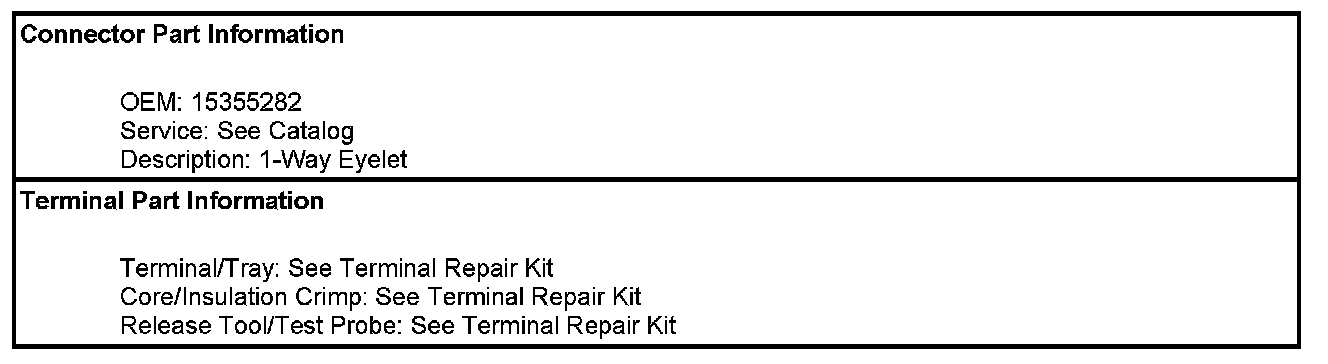

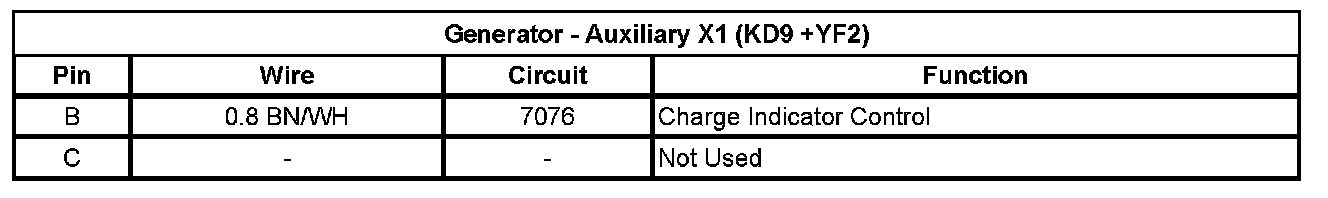

Generator - Auxiliary X1 (KD9 +YF2)

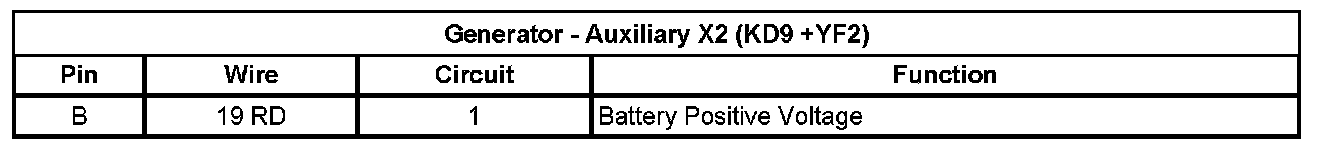

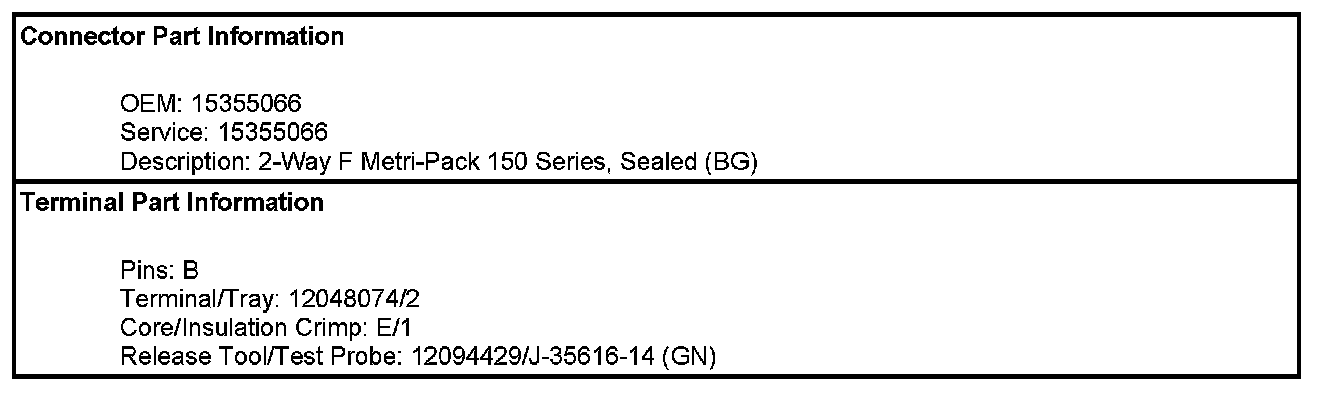

Generator - Auxiliary X2 (KD9 +YF2)
