Control Assembly, HVAC

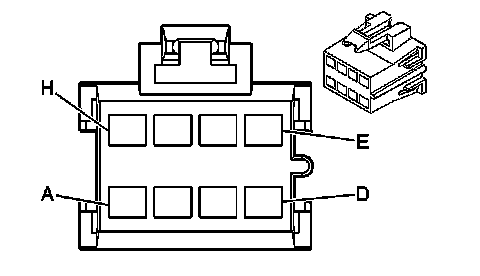

Component Connector End Views

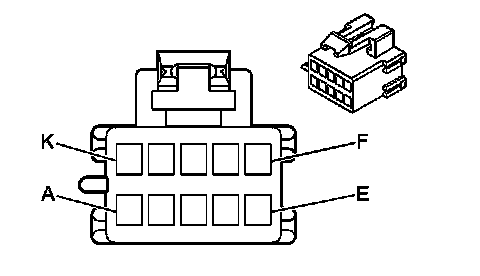

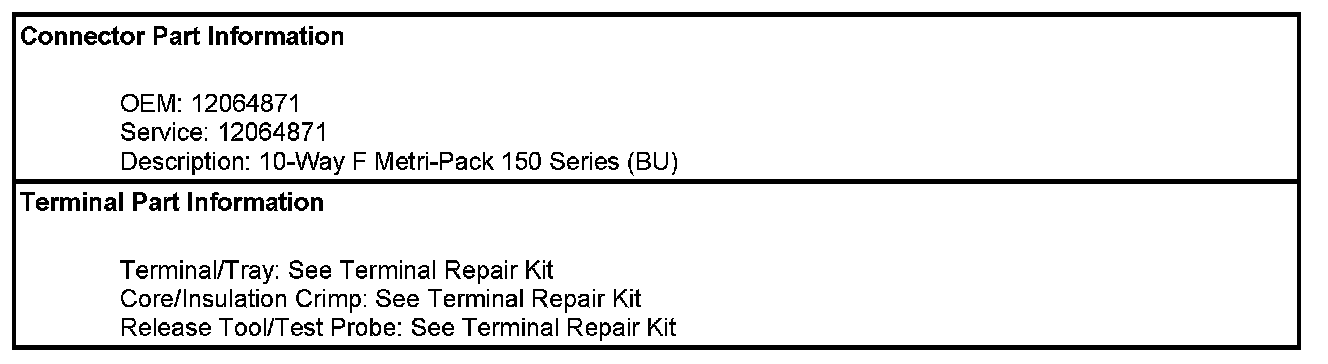

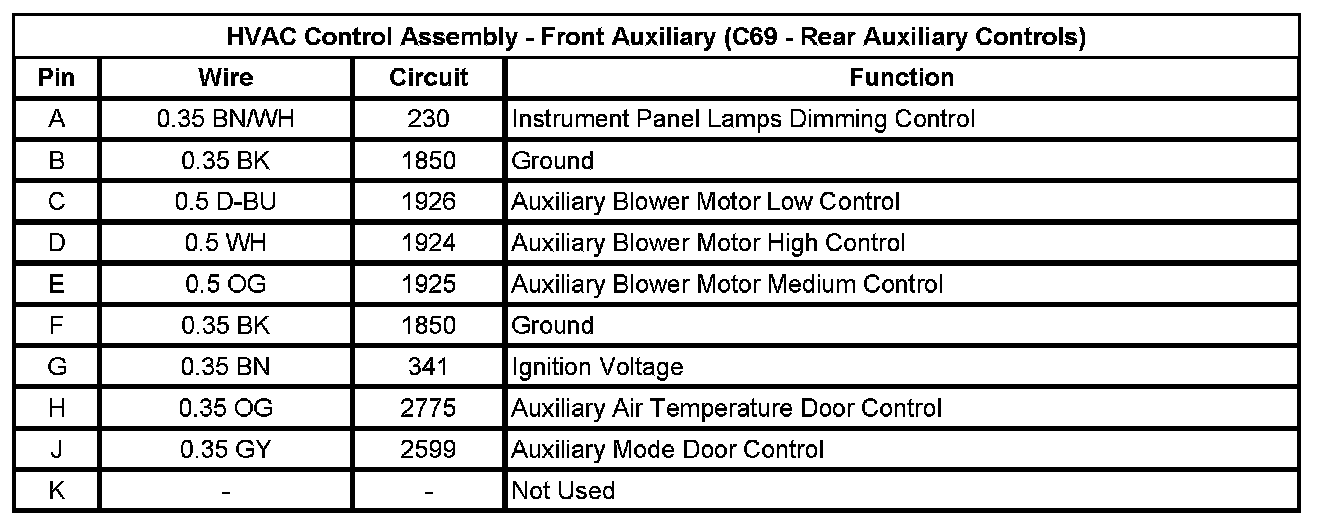

HVAC Control Assembly - Front Auxiliary (C69 - Rear Auxiliary Controls)

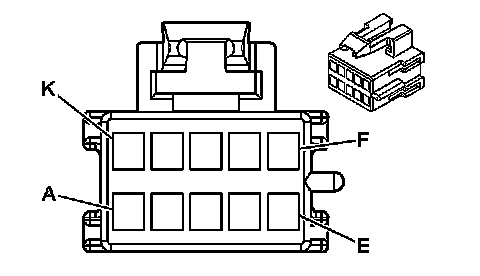

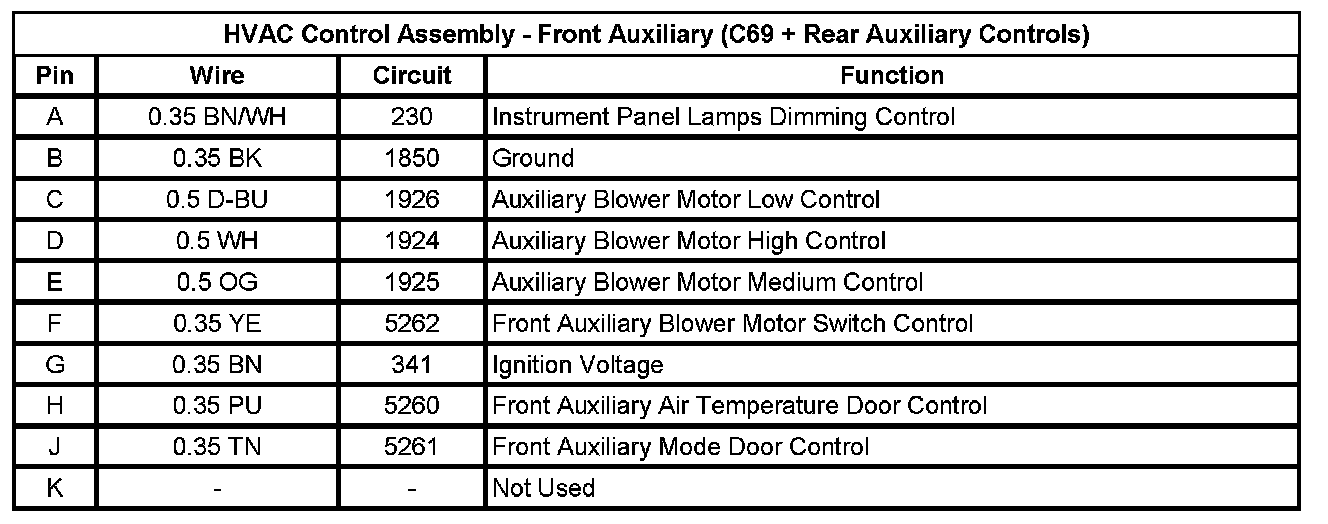

HVAC Control Assembly - Front Auxiliary (C69 + Rear Auxiliary Controls)

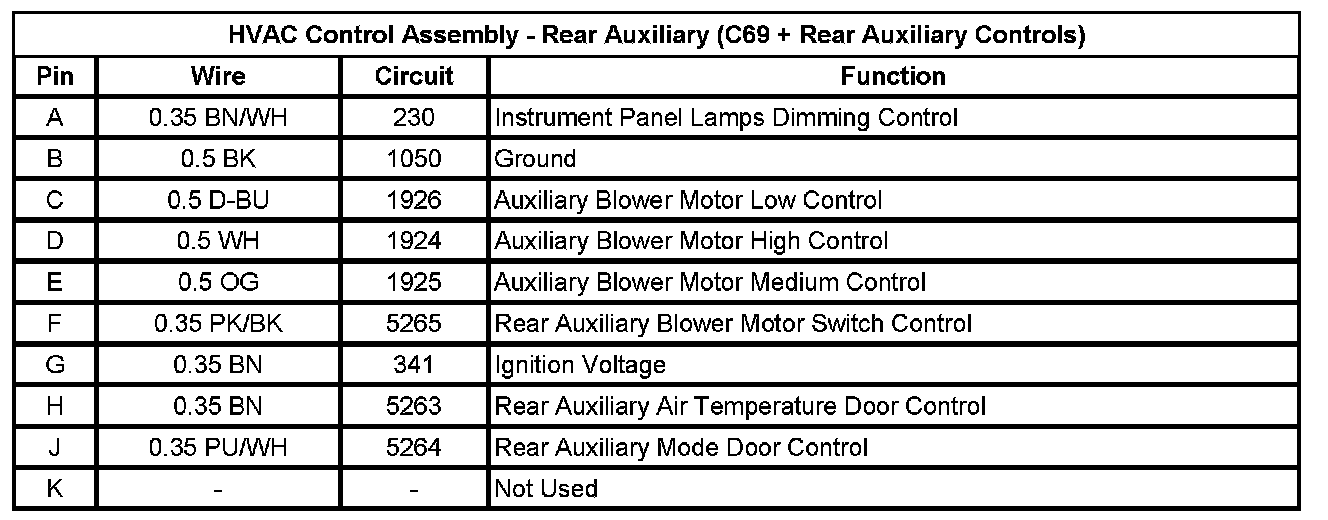

HVAC Control Assembly - Rear Auxiliary (C69 + Rear Auxiliary Controls)

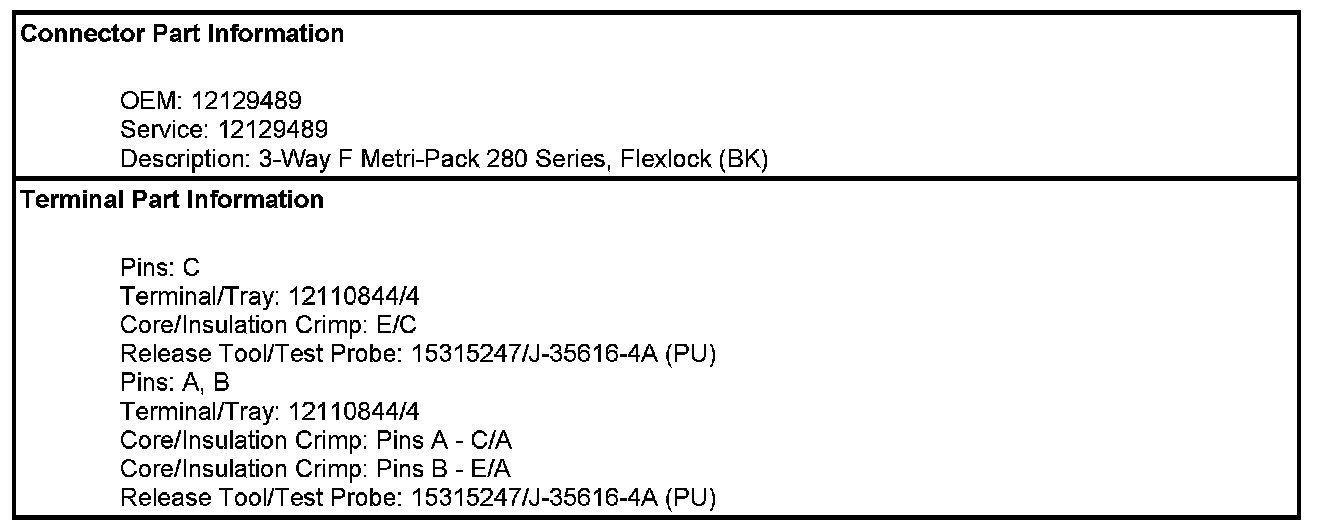

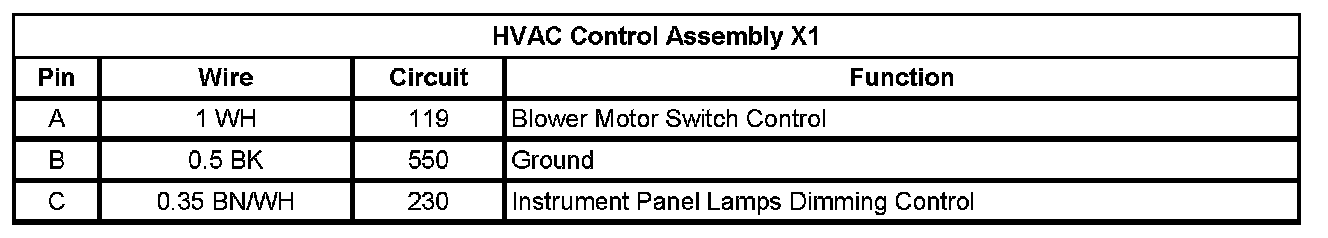

HVAC Control Assembly X1

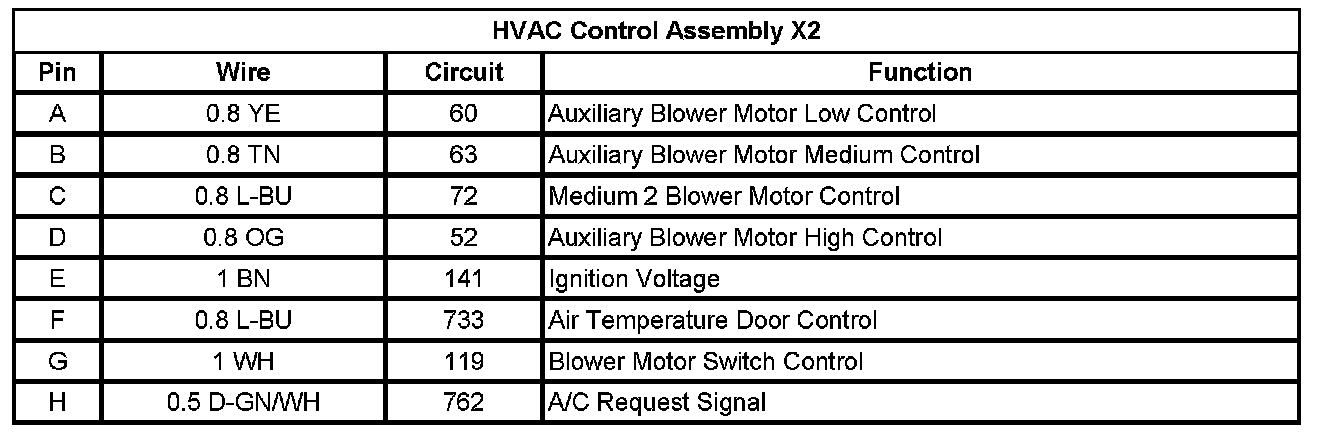

HVAC Control Assembly X2

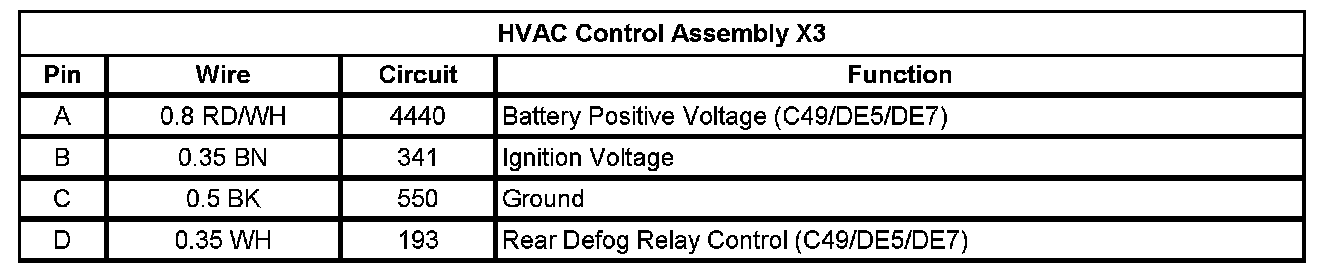

HVAC Control Assembly X3
Transfer Case Shift Control Module - C3:

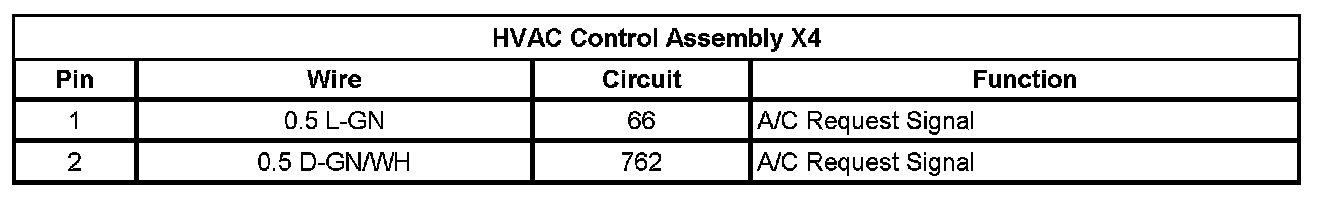

HVAC Control Assembly X4
