Control Module, A/T



Component Connector End Views - Continued

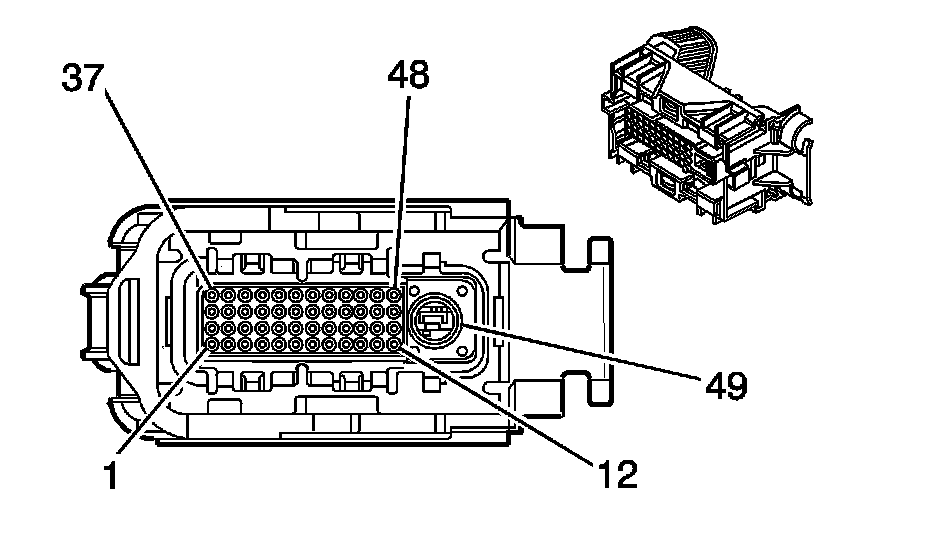

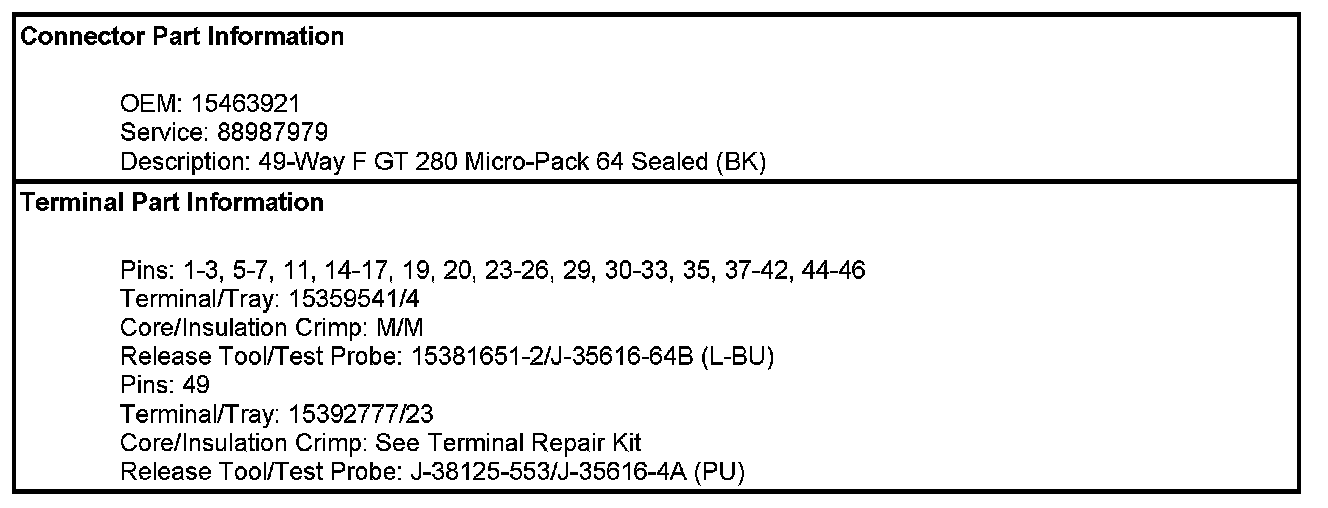

Transmission Control Module (TCM) (Gas)

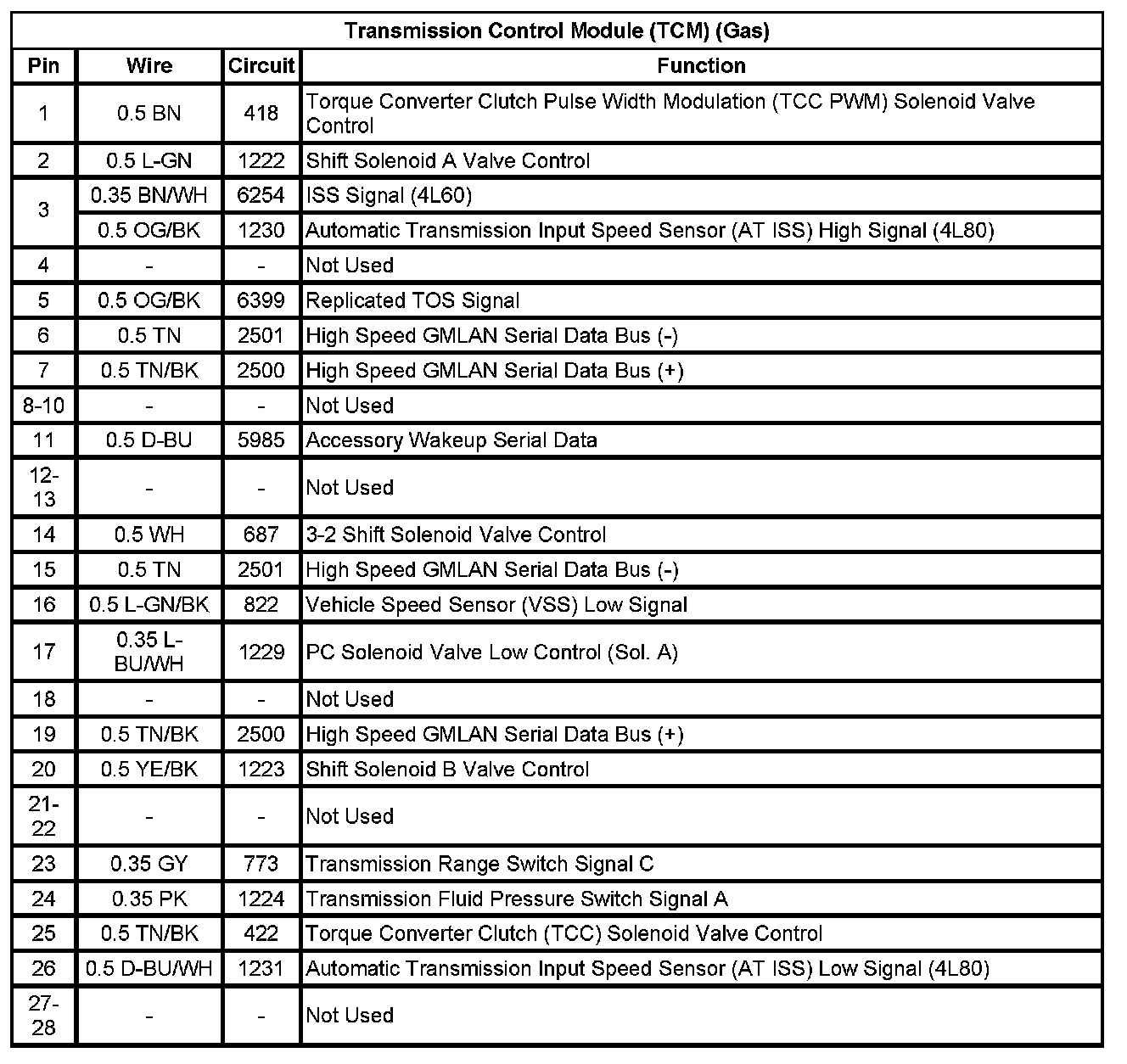

Transmission Control Module (TCM) (Gas) (Pin 1 To 28):

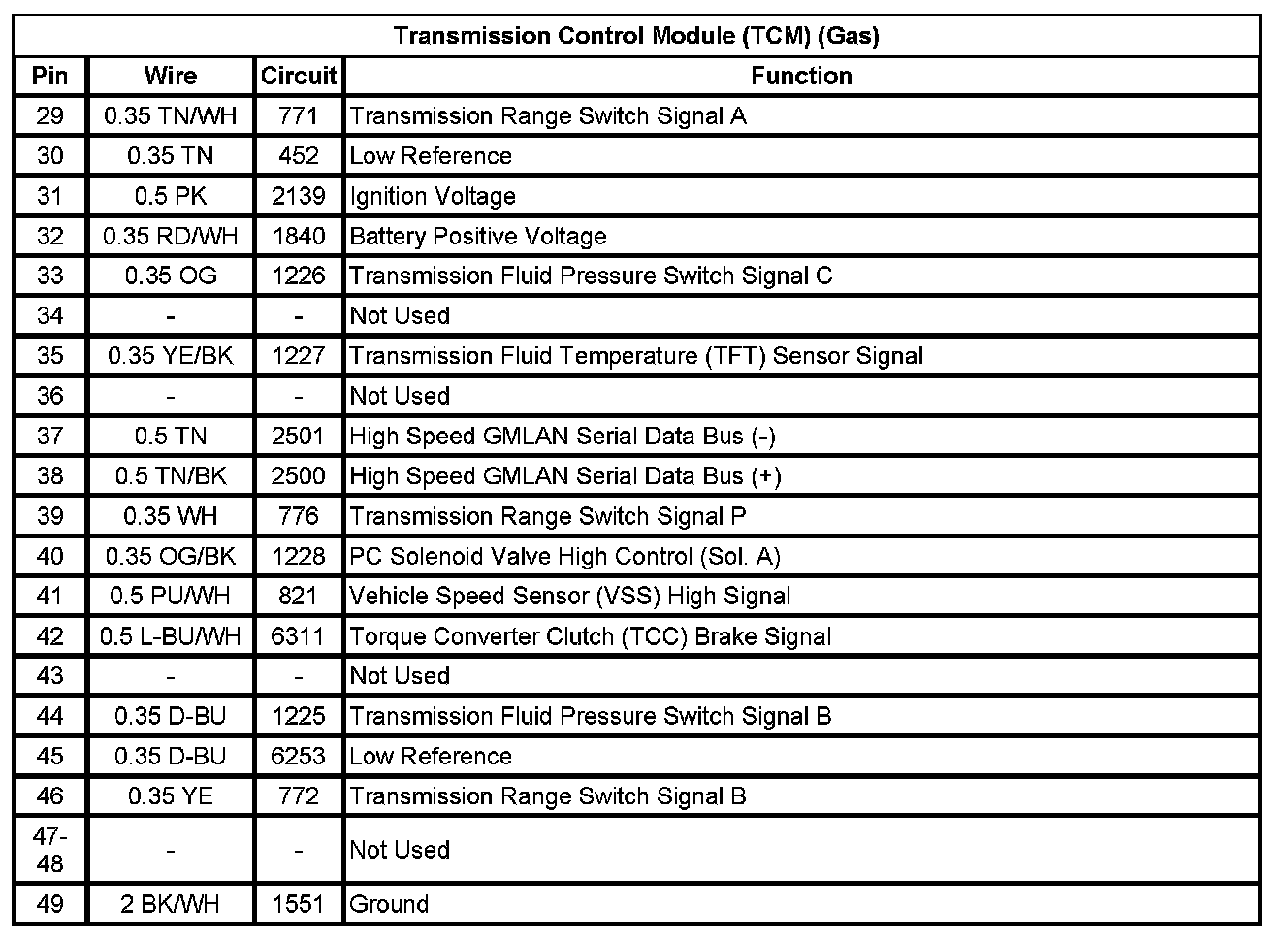

Transmission Control Module (TCM) (Gas) (Pin 29 To 49):
