Engine Control Module
Component Connector End Views

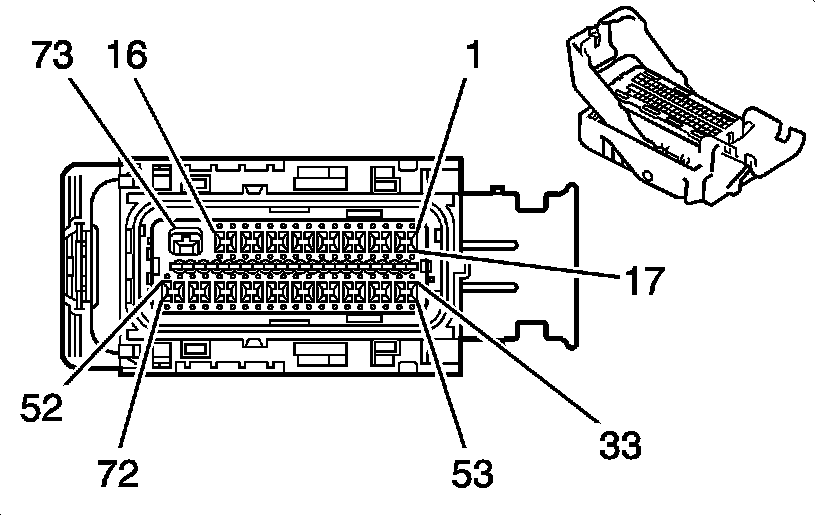

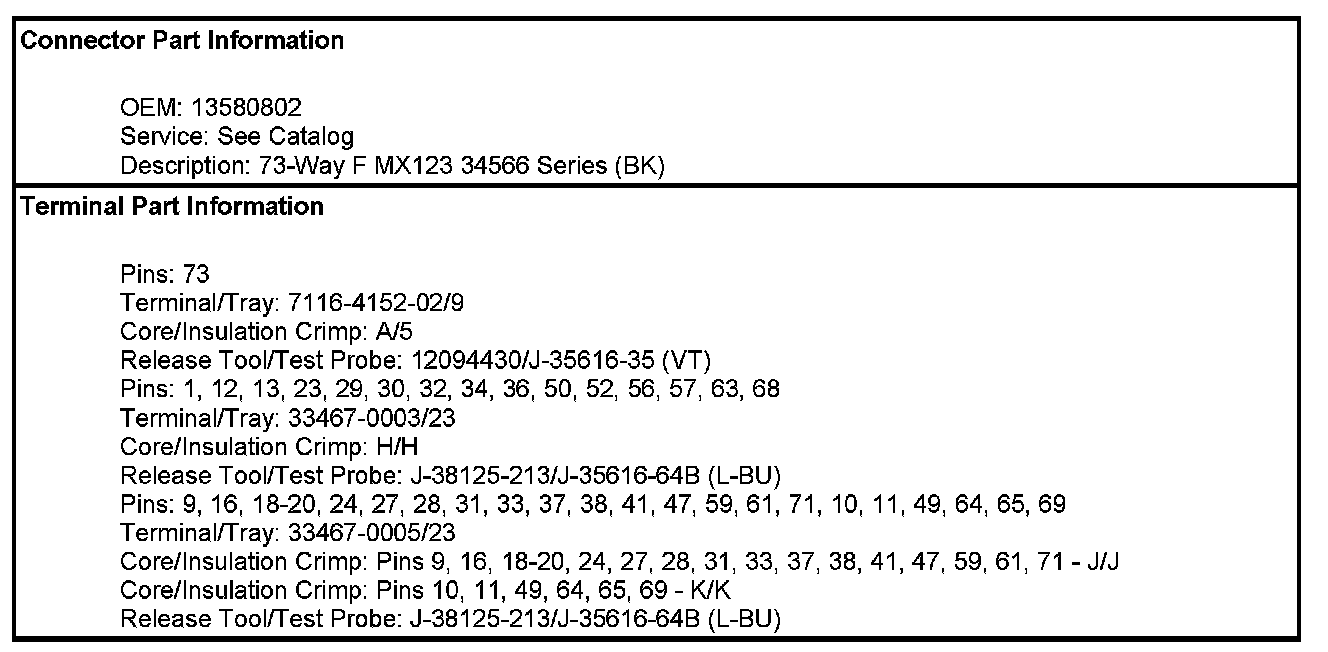

Engine Control Module (ECM) X1 (4.8L/5.3L/6.0L)

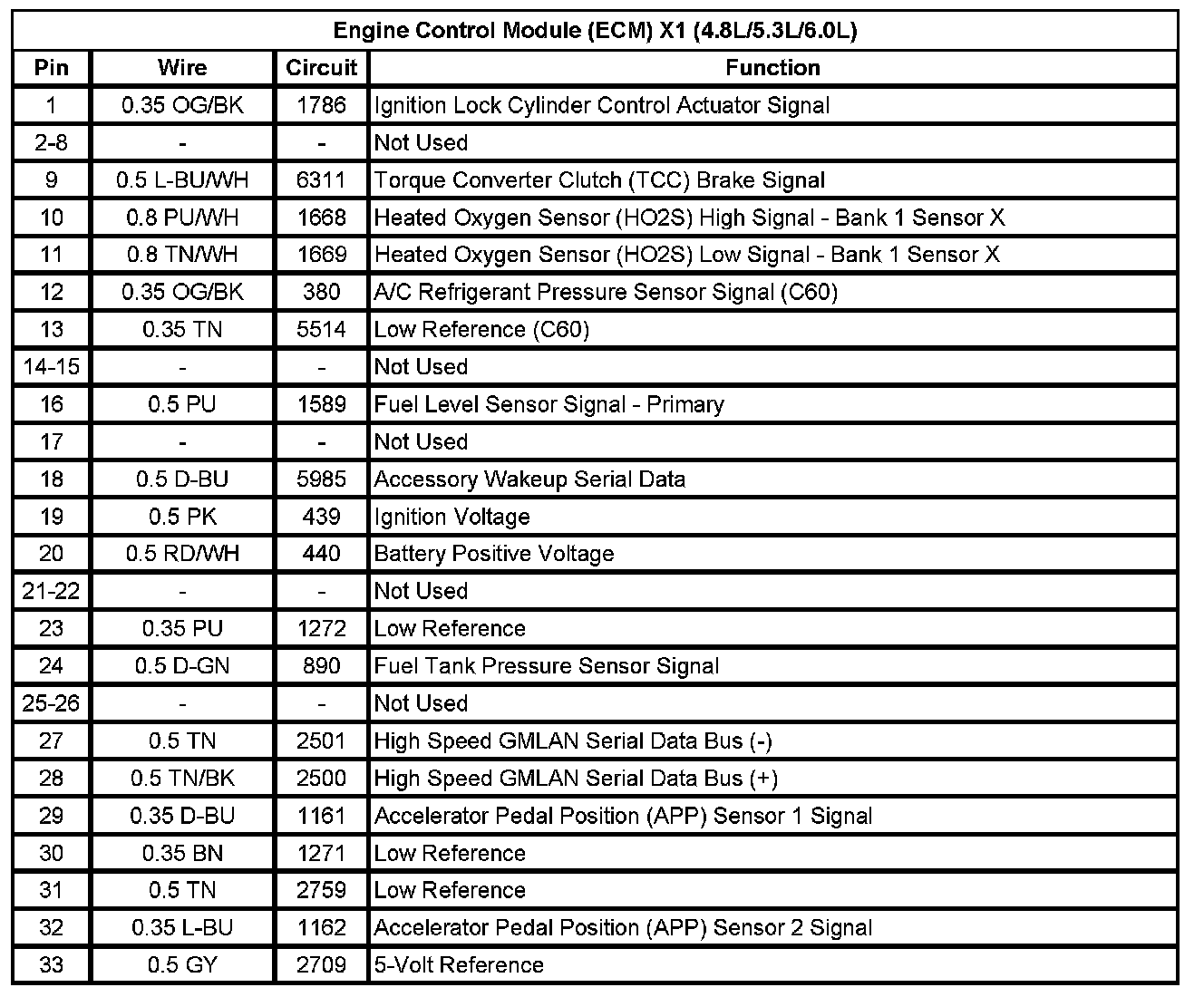

Engine Control Module (ECM) X1 (4.8L/5.3L/6.0L) (Pin 1 To 33):

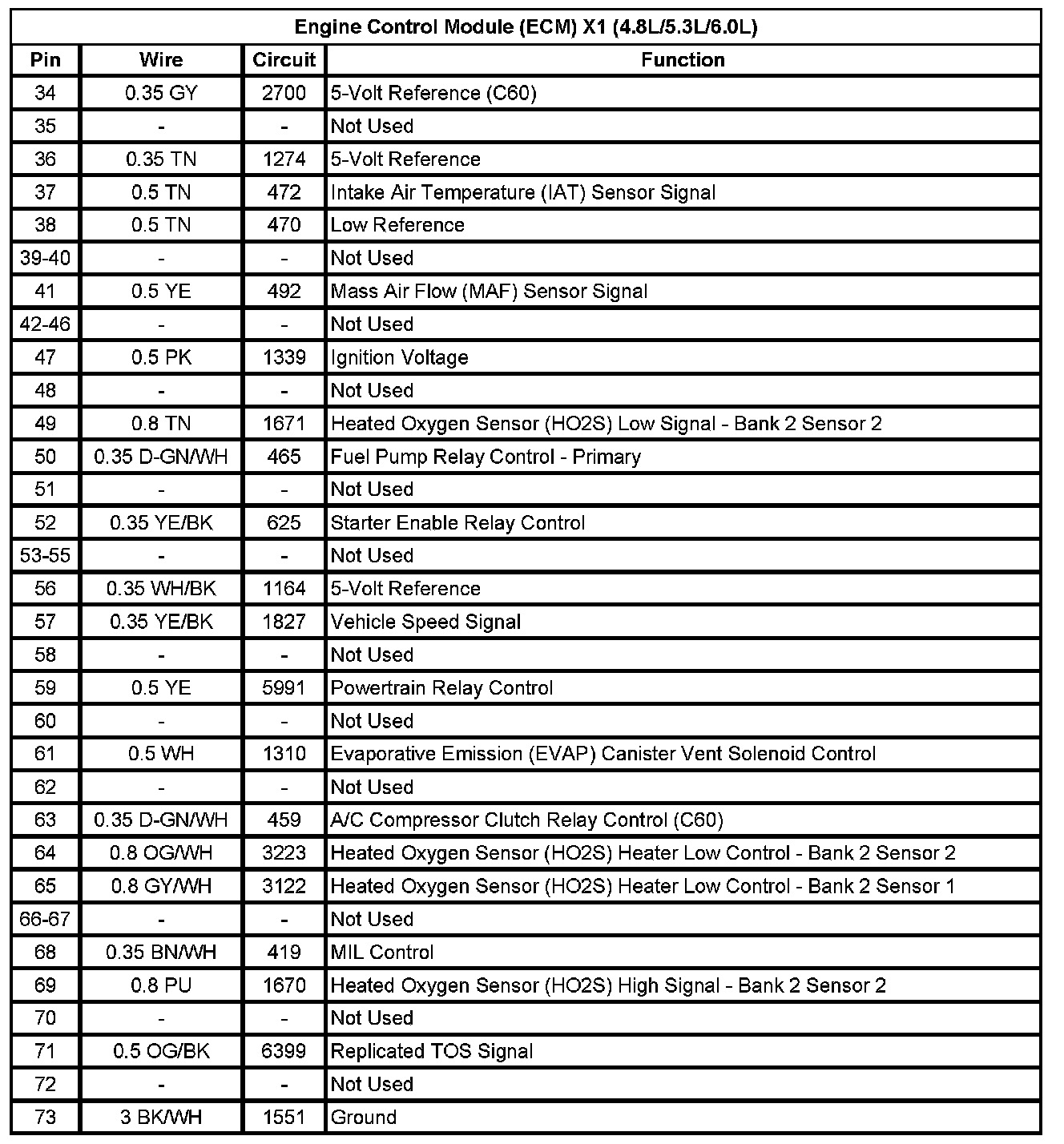

Engine Control Module (ECM) X1 (4.8L/5.3L/6.0L) (Pin 34 To 73):

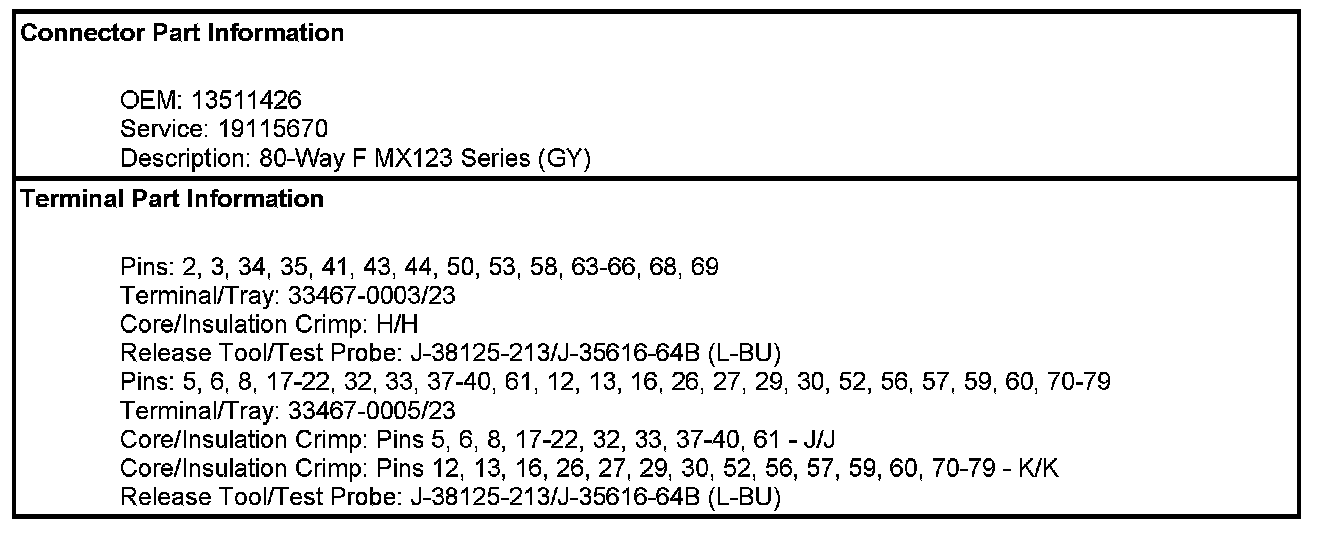

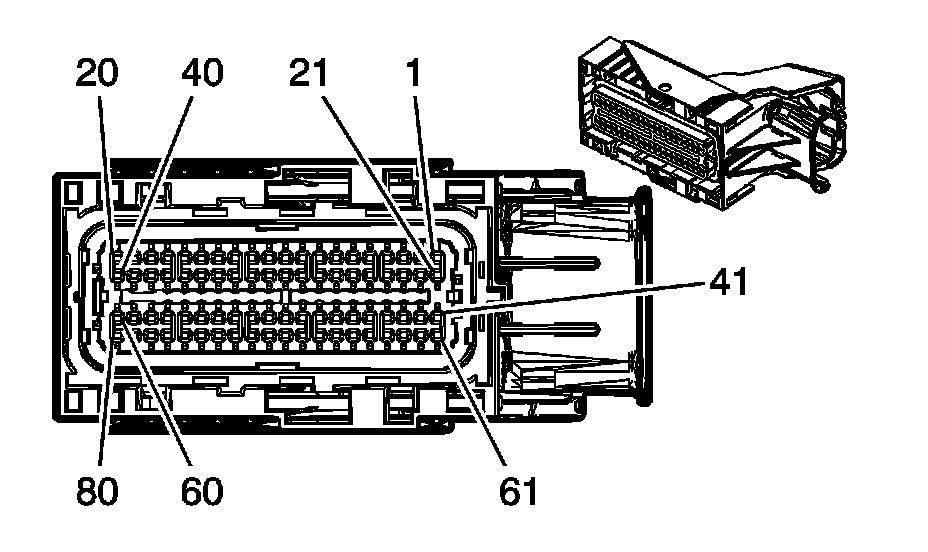

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L)

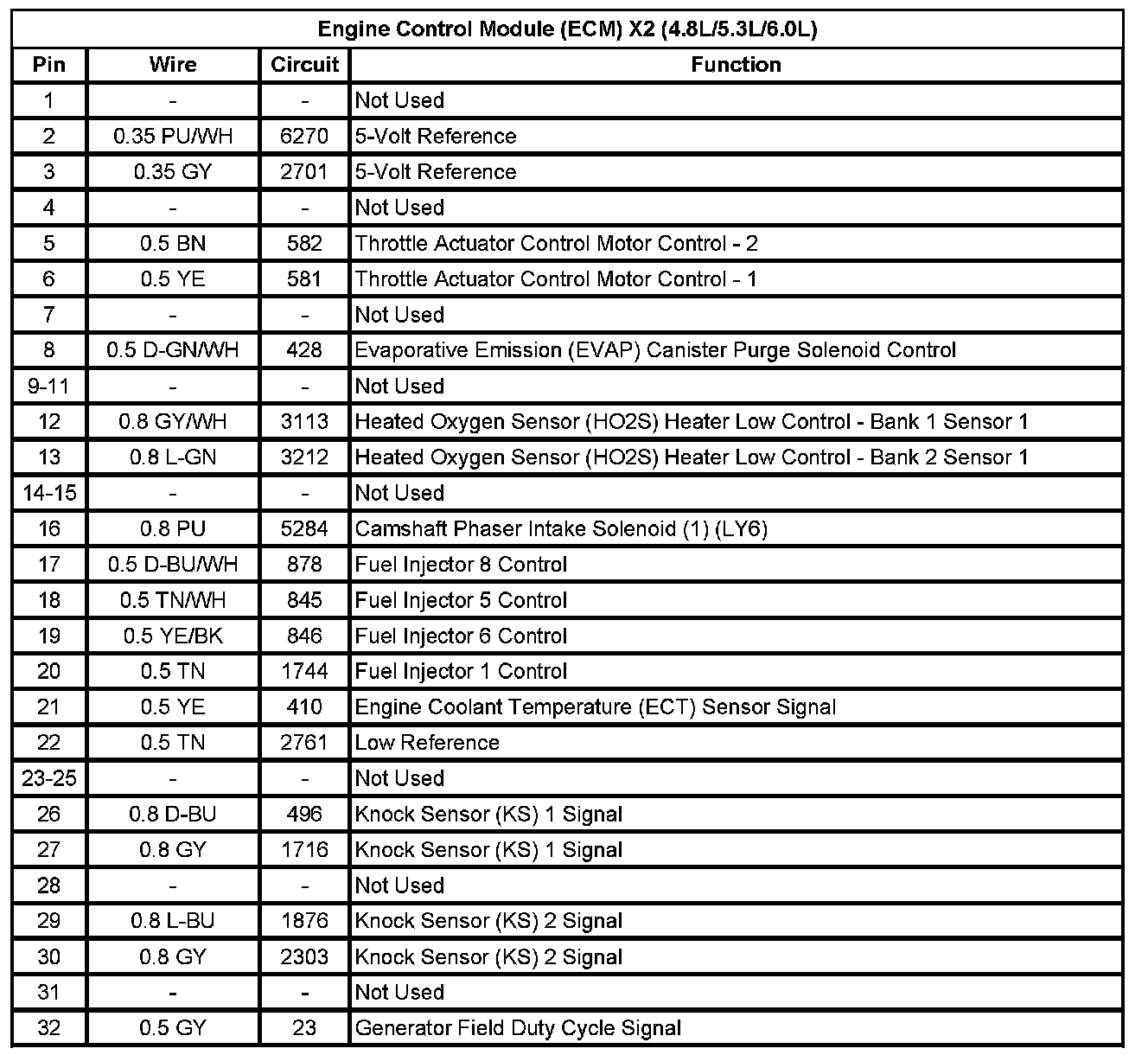

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L) (Pin 1 To 32):

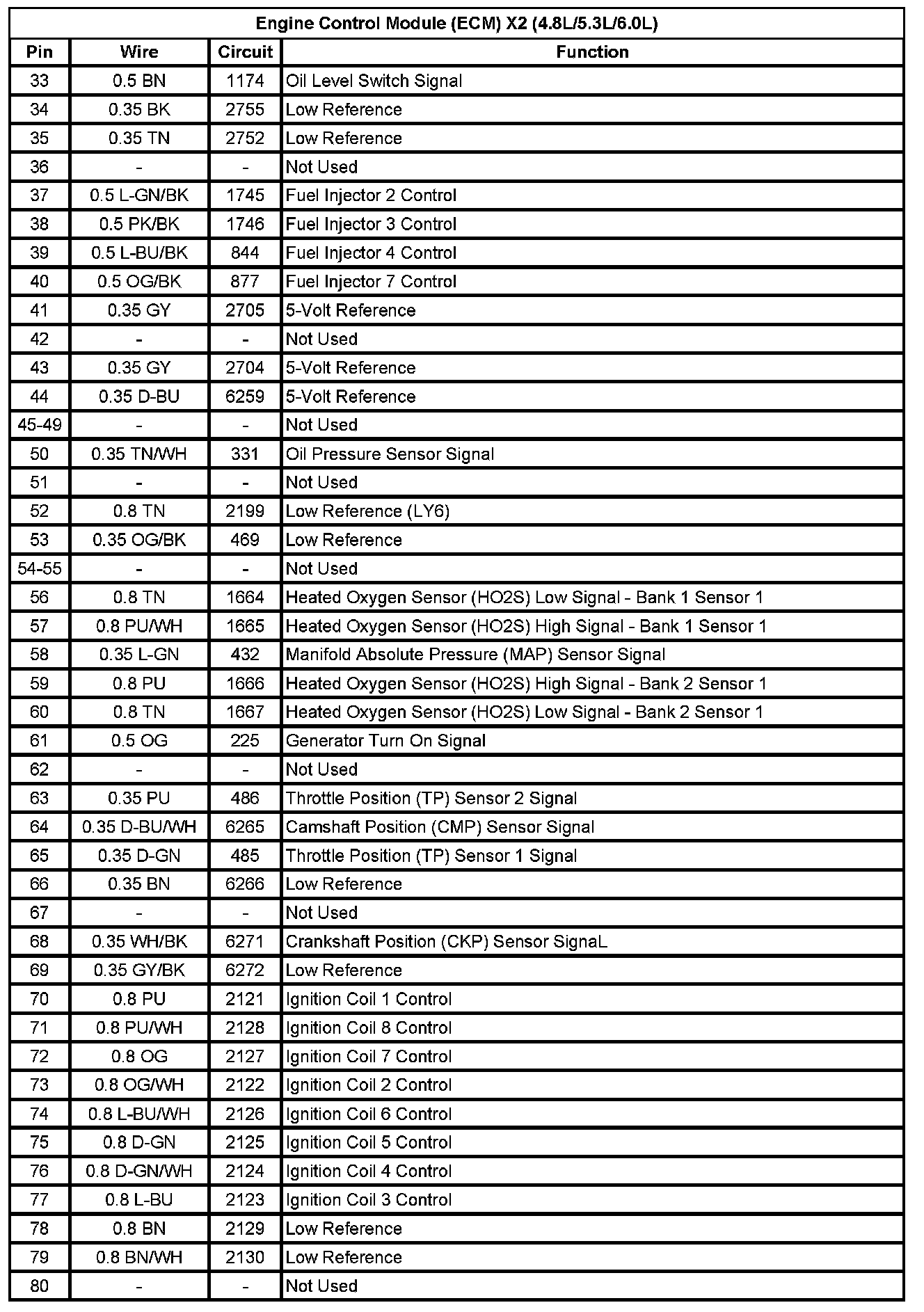

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L) (Pin 33 To 80):
