Power Window Switch



Component Connector End Views - Continued

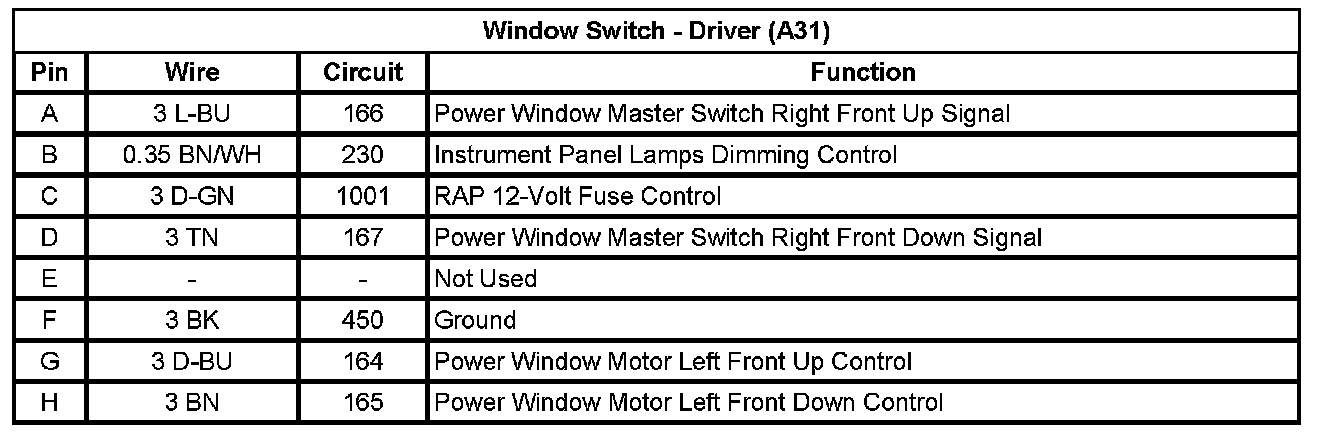

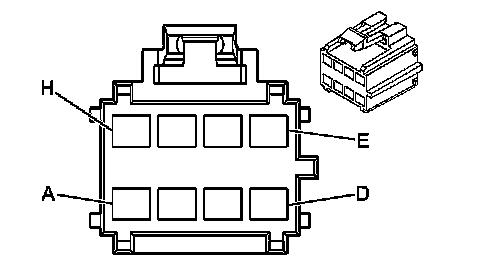

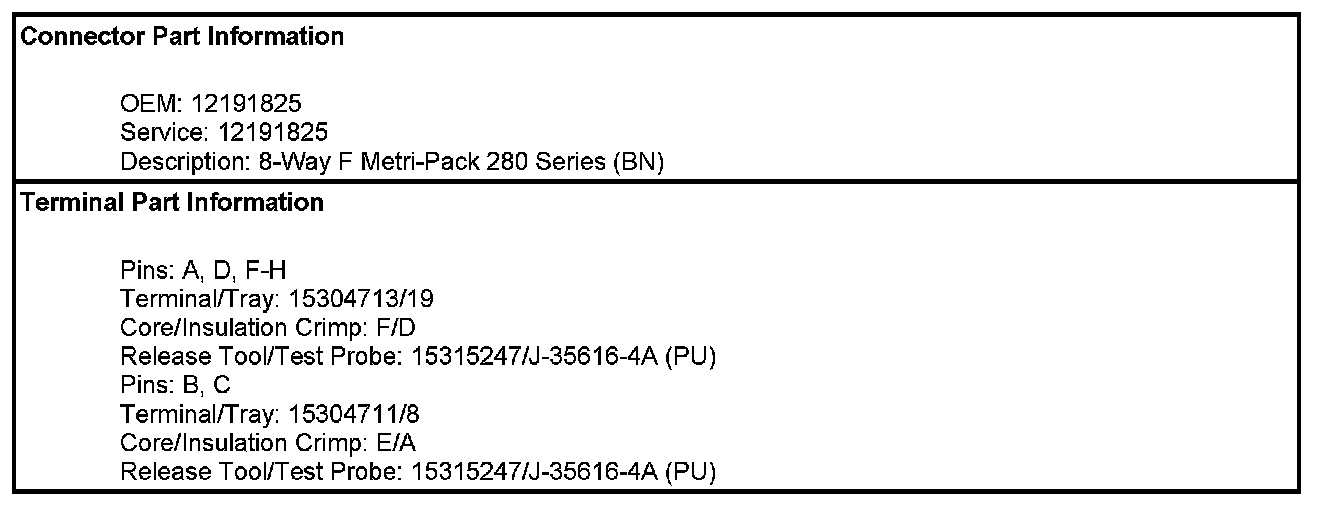

Window Switch - Driver (A31)

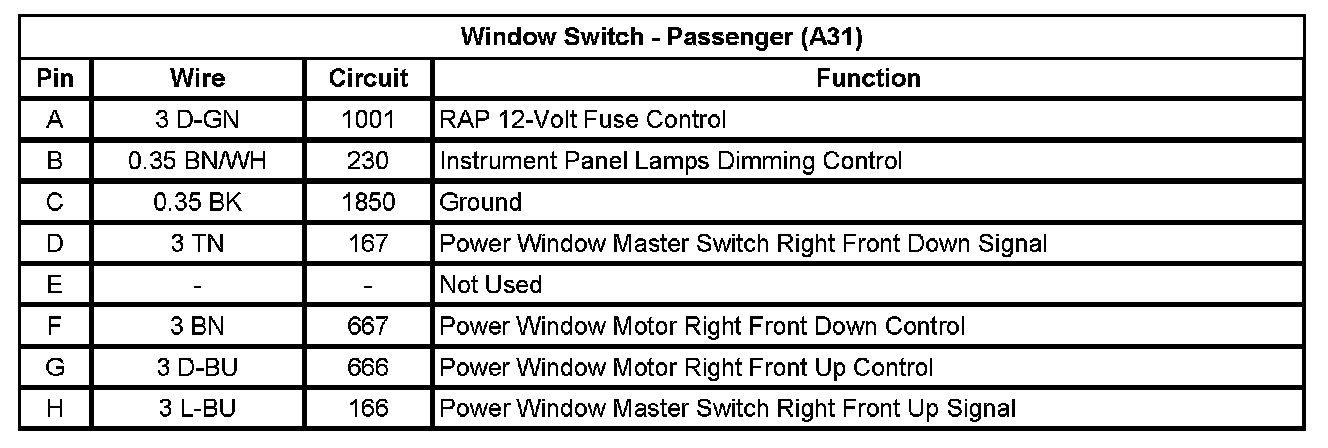

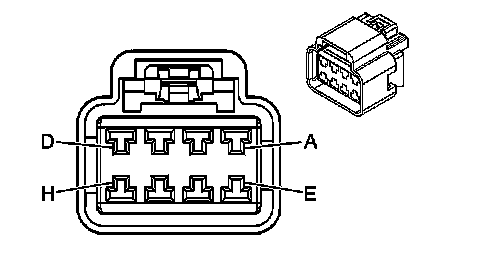

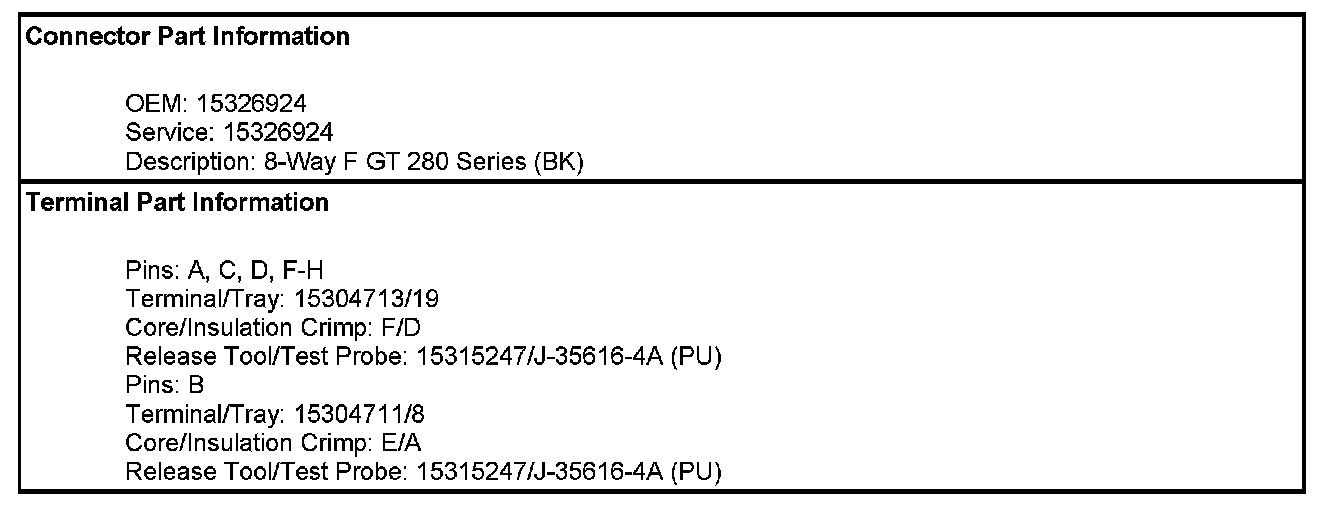

Window Switch - Passenger (A31)
