Steering Mounted Controls Transmitter



Component Connector End Views - Continued

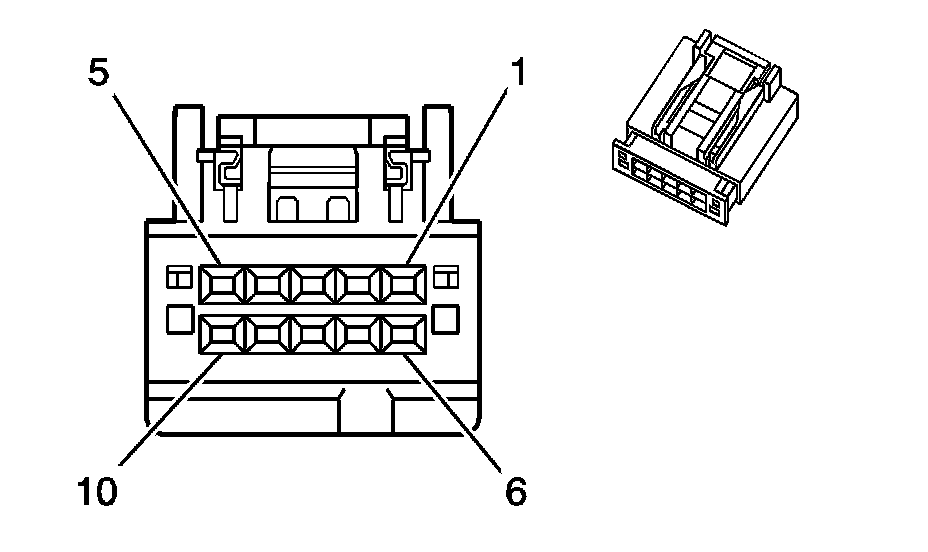

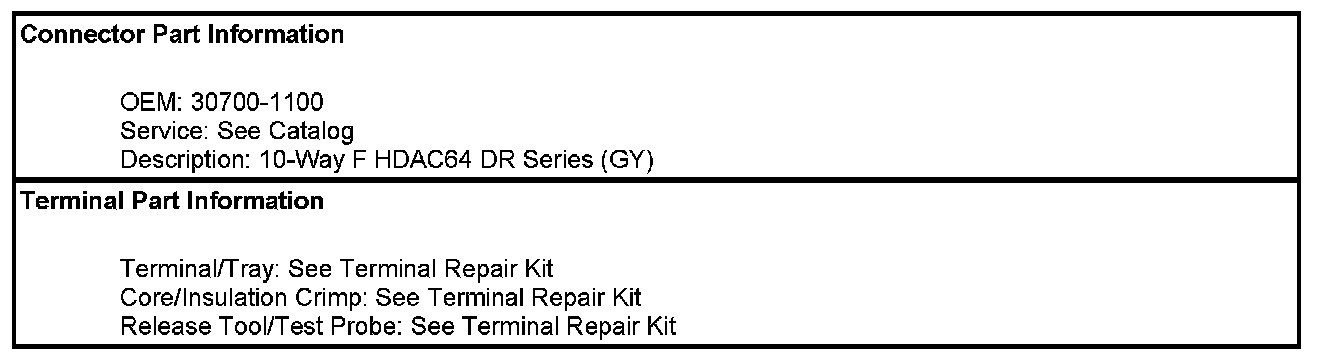

Steering Wheel Controls - Left (K34)

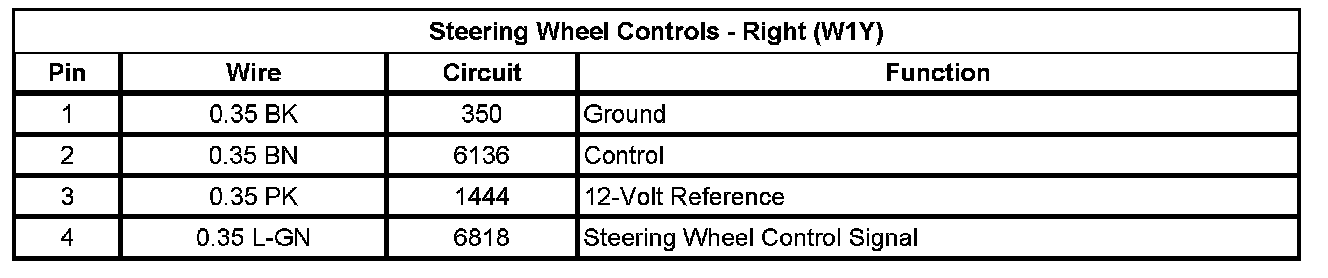

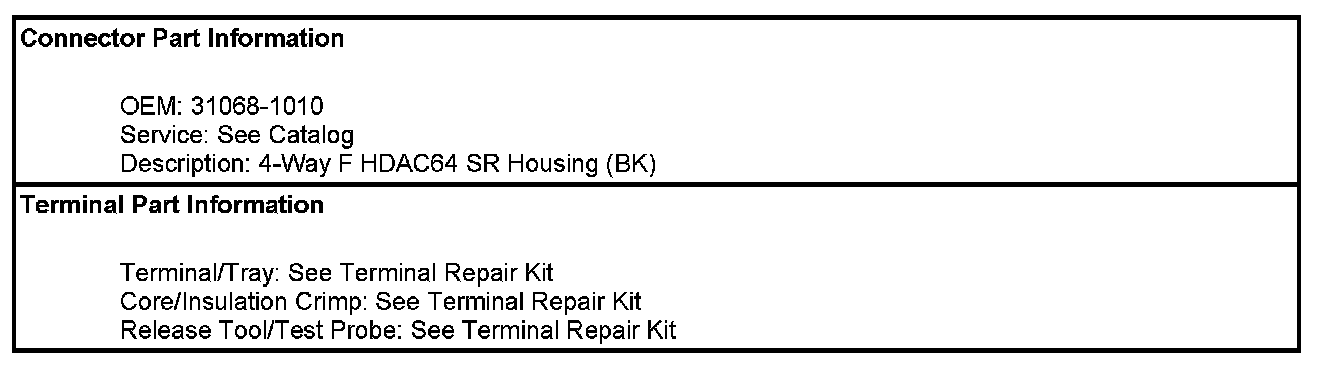

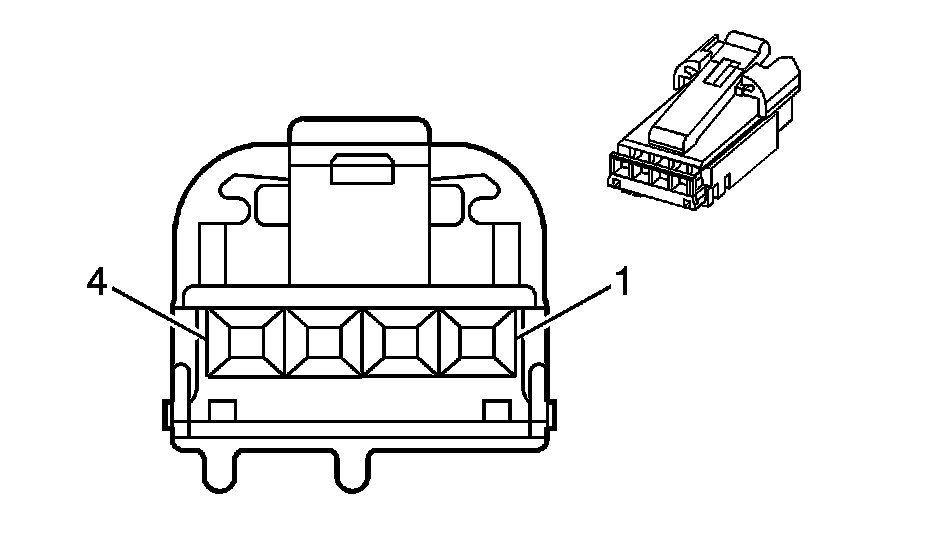

Steering Wheel Controls - Right (W1Y)
