Body Control Systems

Body Control System Schematics

Power, Ground, Serial Data, and Controlled/Monitored Subsystem References

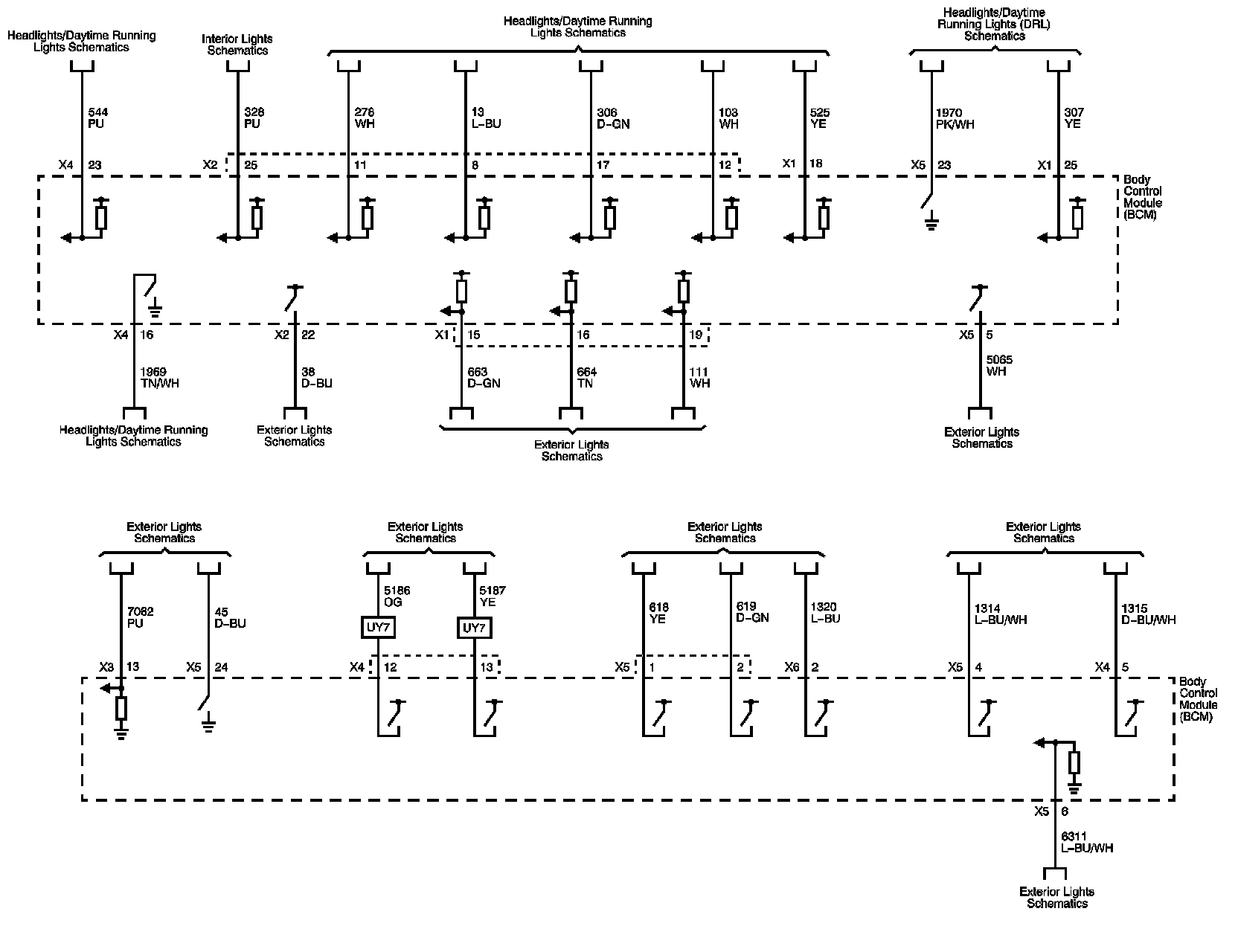

BCM Inputs and Outputs 1 of 4

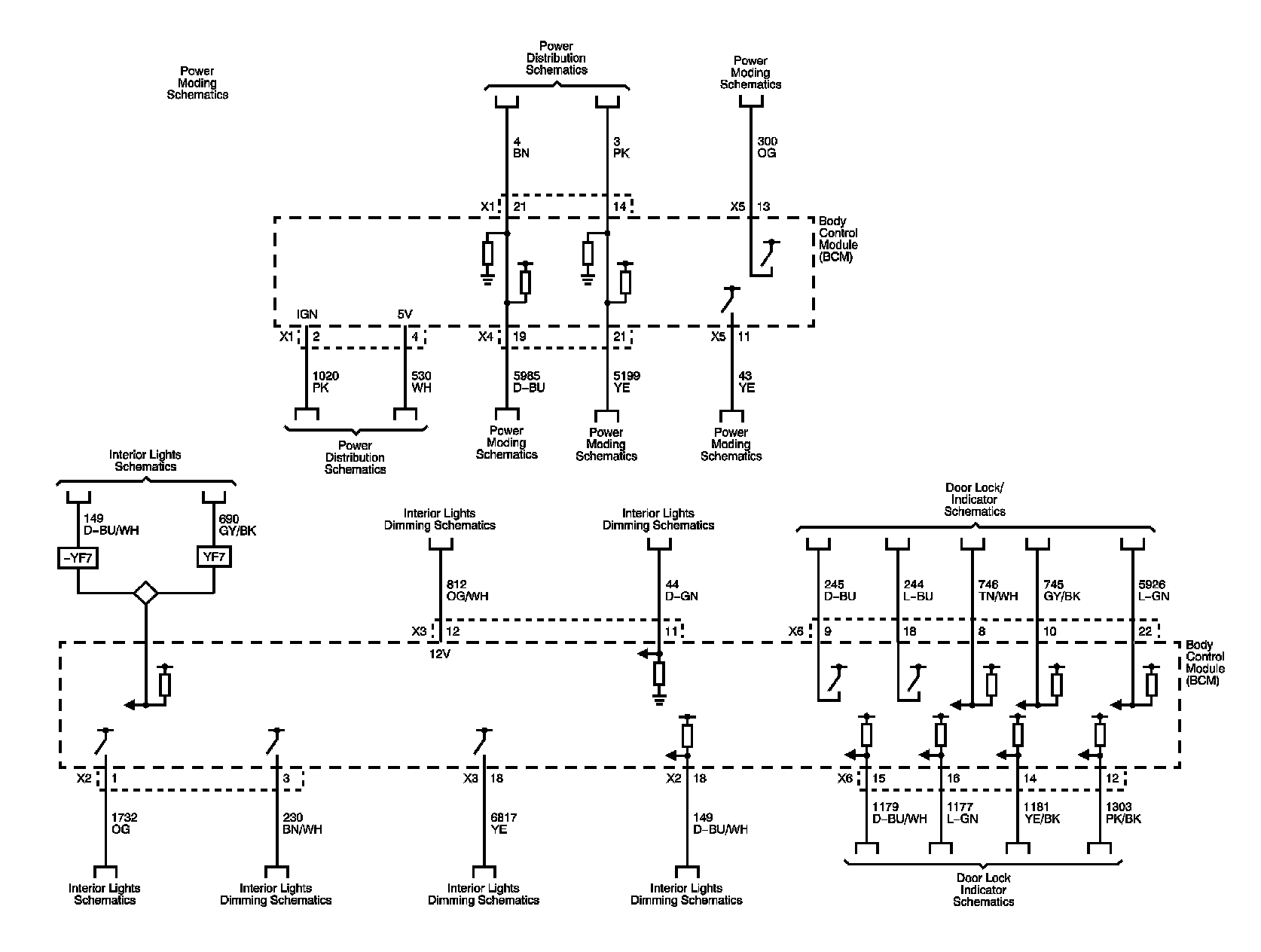

BCM Inputs and Outputs 2 of 4






BCM Inputs and Outputs 3of 4






BCM Inputs and Outputs 4 of 4






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
