Control Module HVAC: Locations

Luggage Compartment/Rear of Vehicle Component Views

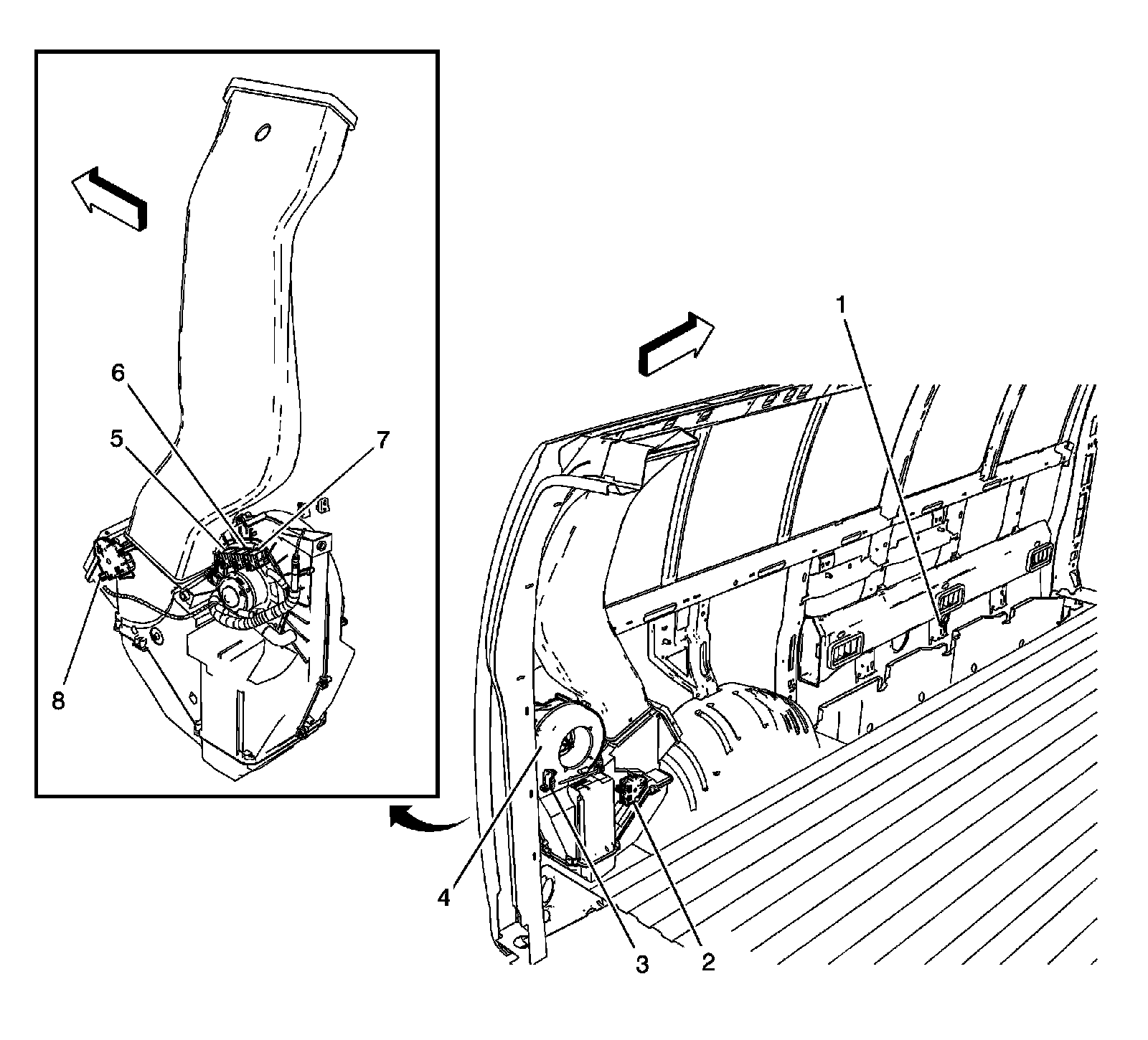

Left Rear of Cargo Compartment




1 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Passenger +ASF)
2 - Air Temperature Actuator - Auxiliary (C69)
3 - Blower Motor Resistor Assembly - Auxiliary (C36/C69)
4 - HVAC Module - Auxiliary (C69)
5 - High Speed Blower Motor Relay
6 - Medium Speed Blower Motor Relay
7 - Low Speed Blower Motor Relay
8 - Mode Actuator - Auxiliary (C69)
