Restraint Systems
Component Connector End Views

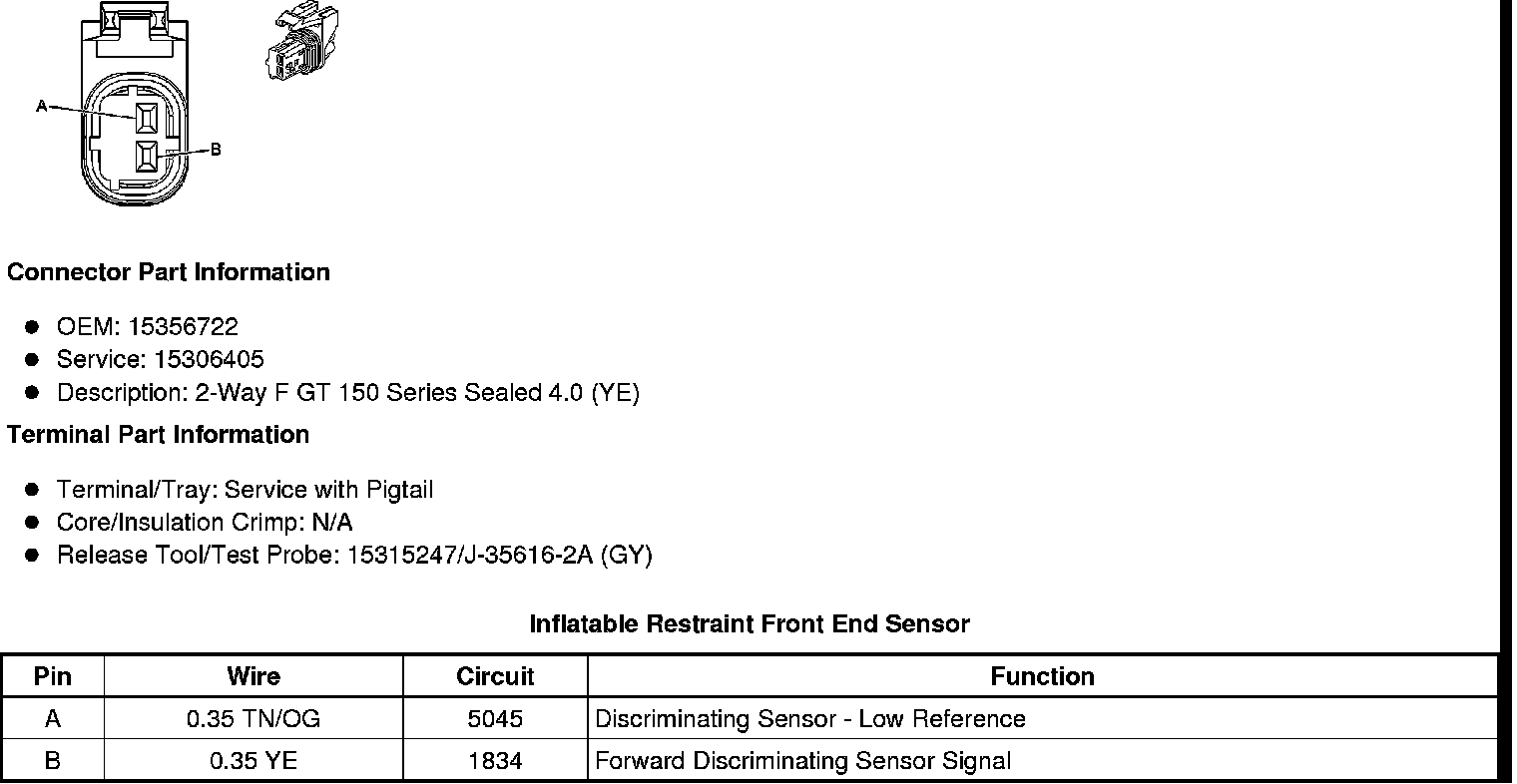

Inflatable Restraint Front End Sensor

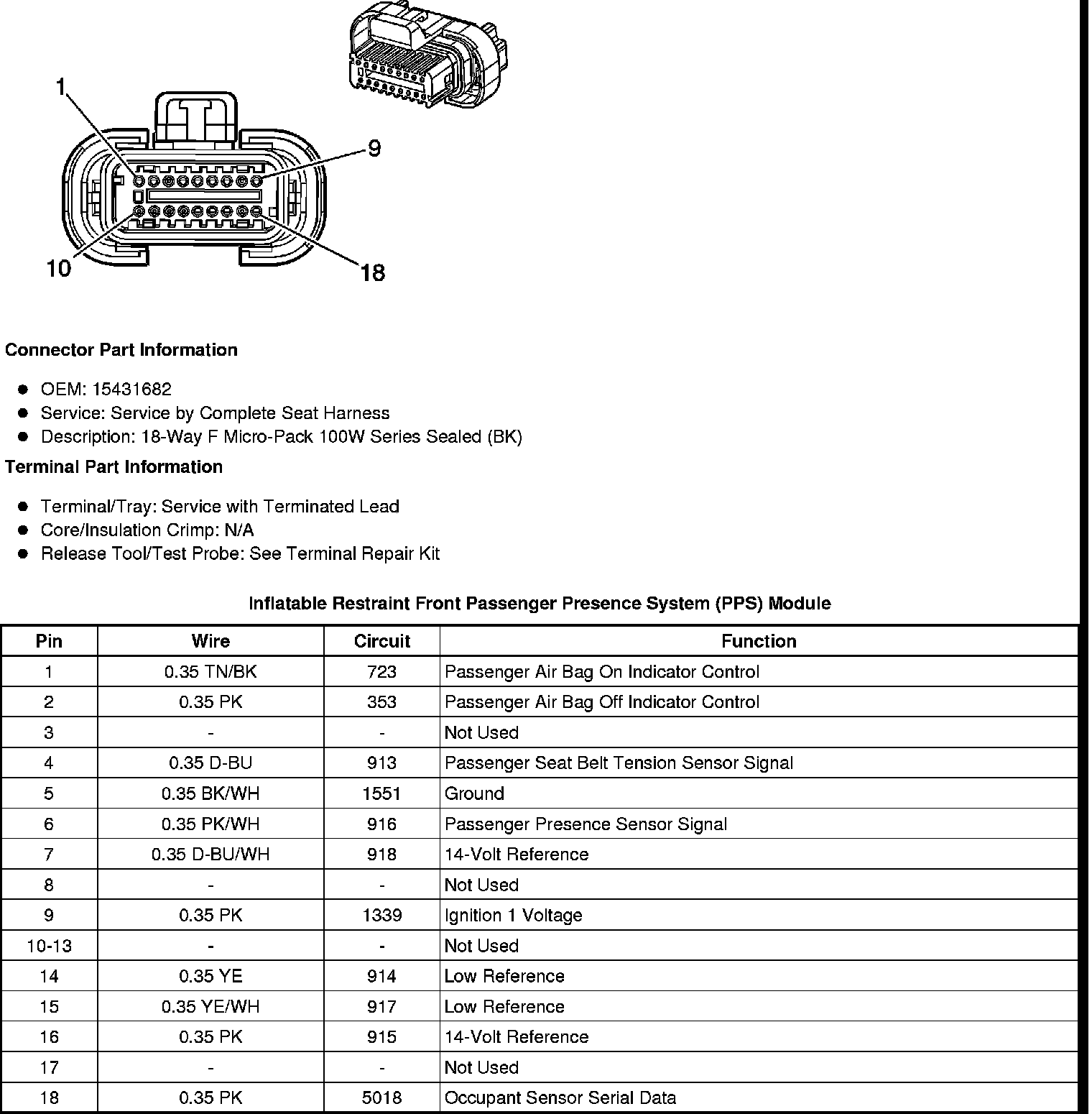

Inflatable Restraint Front Passenger Presence System (PPS) Module

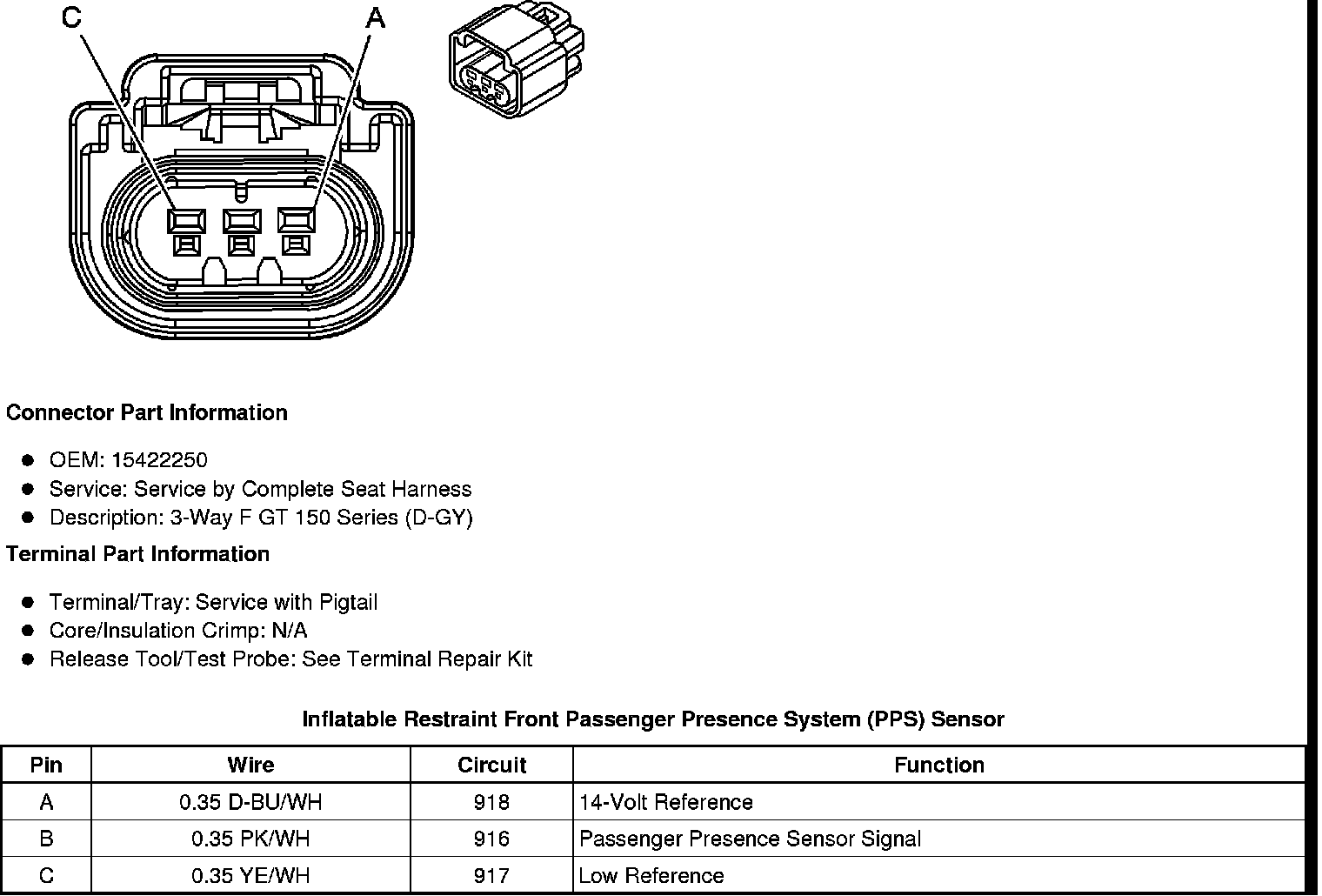

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

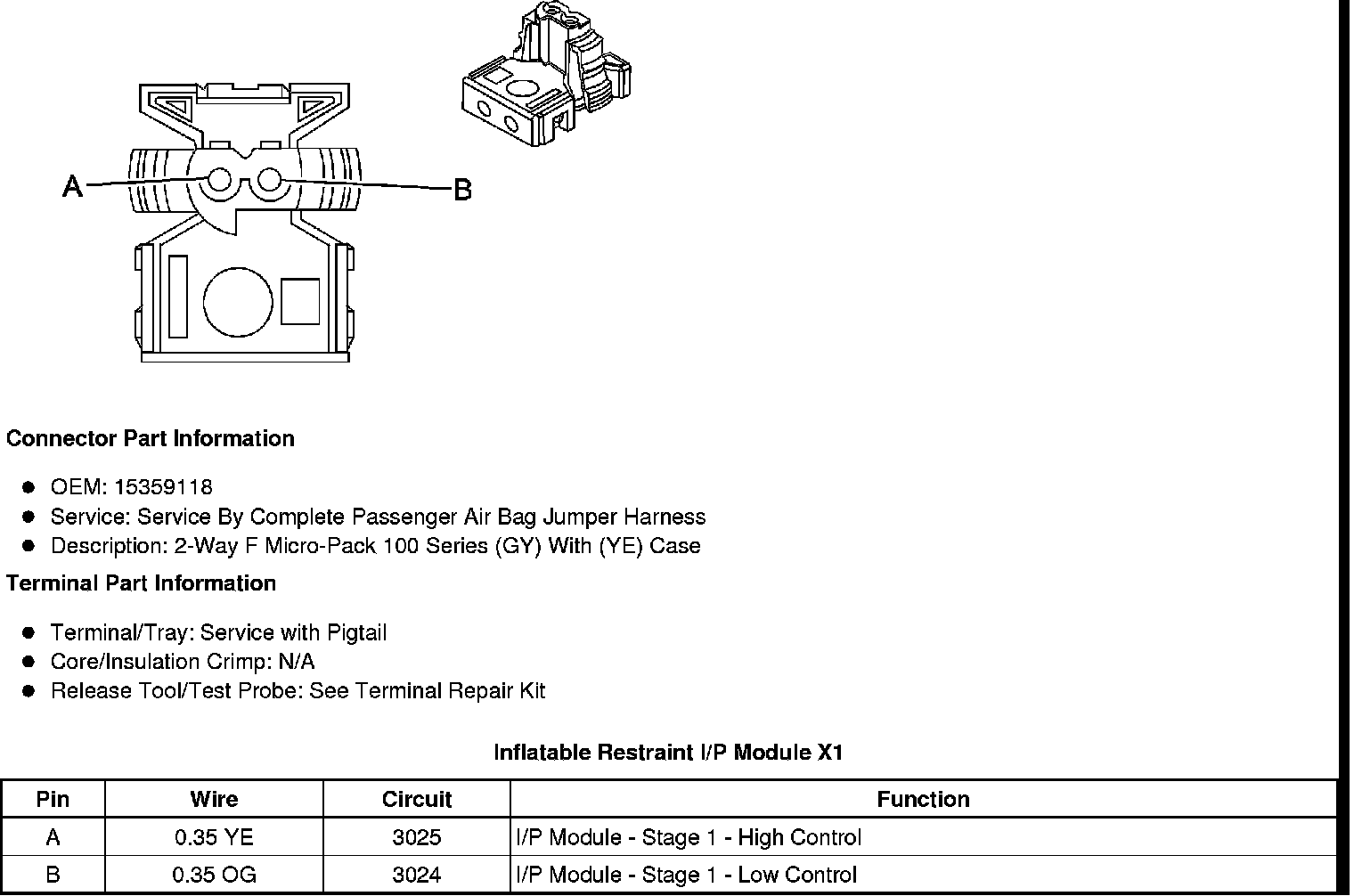

Inflatable Restraint I/P Module X1

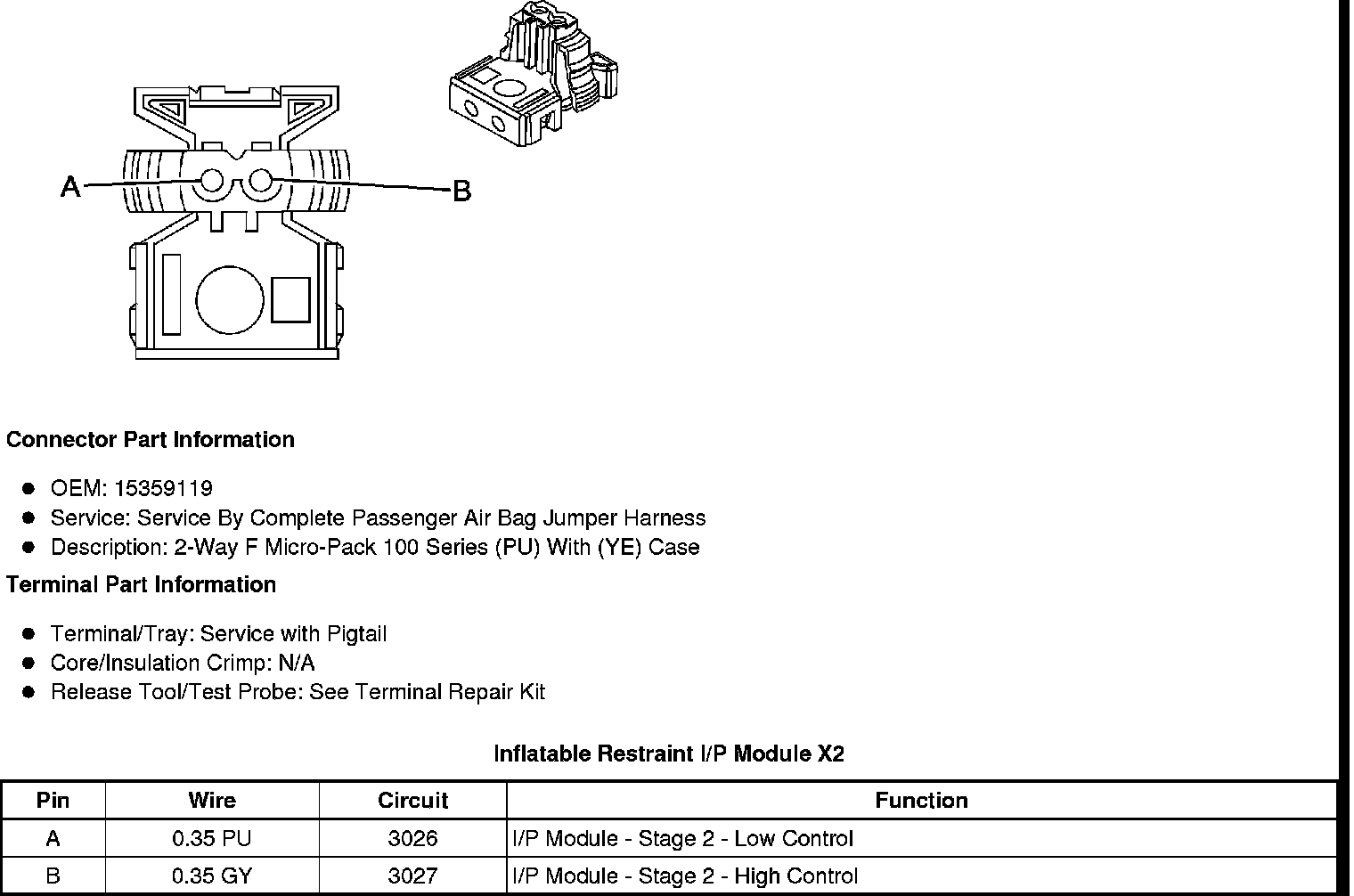

Inflatable Restraint I/P Module X2

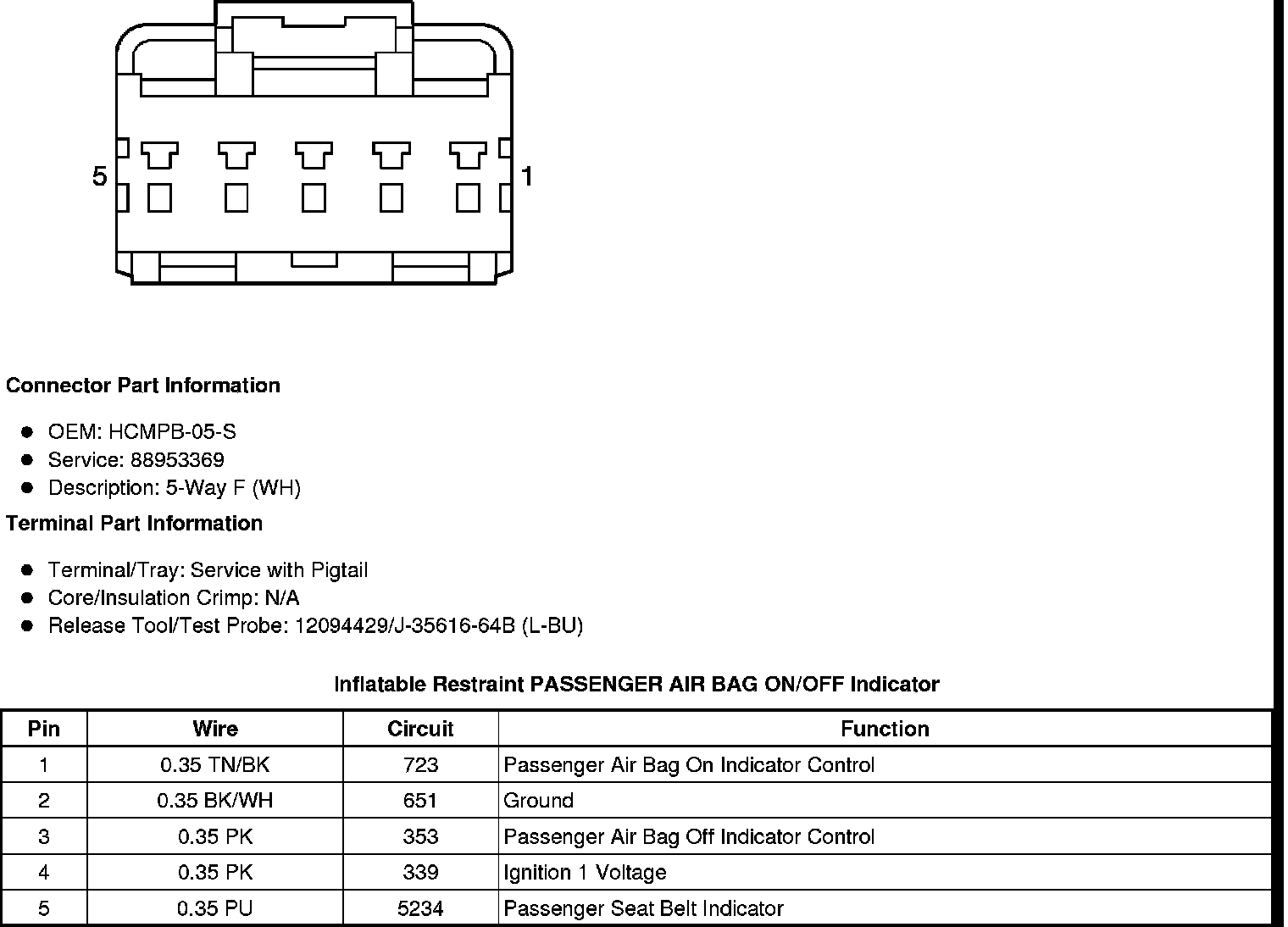

Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator

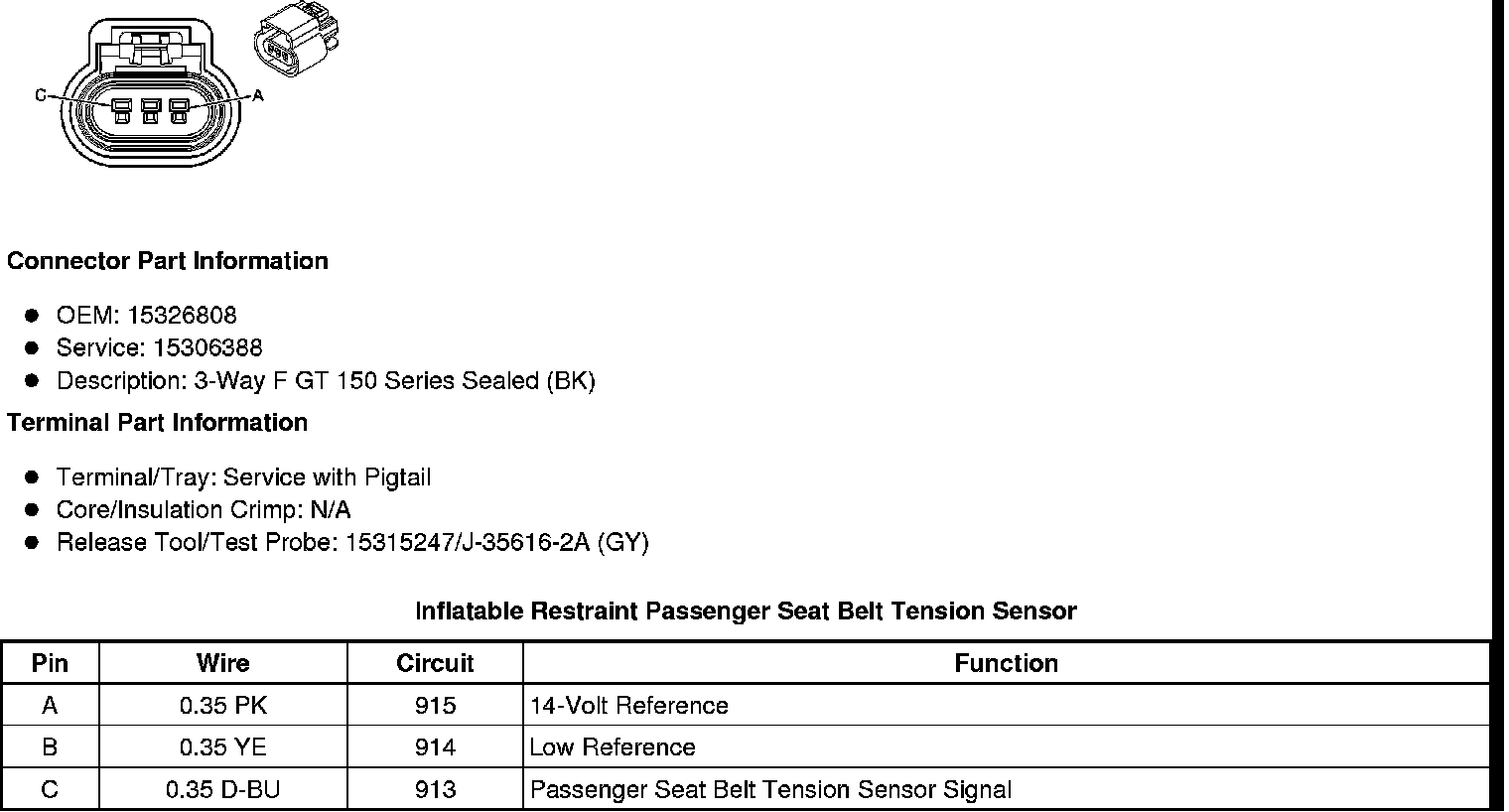

Inflatable Restraint Passenger Seat Belt Tension Sensor

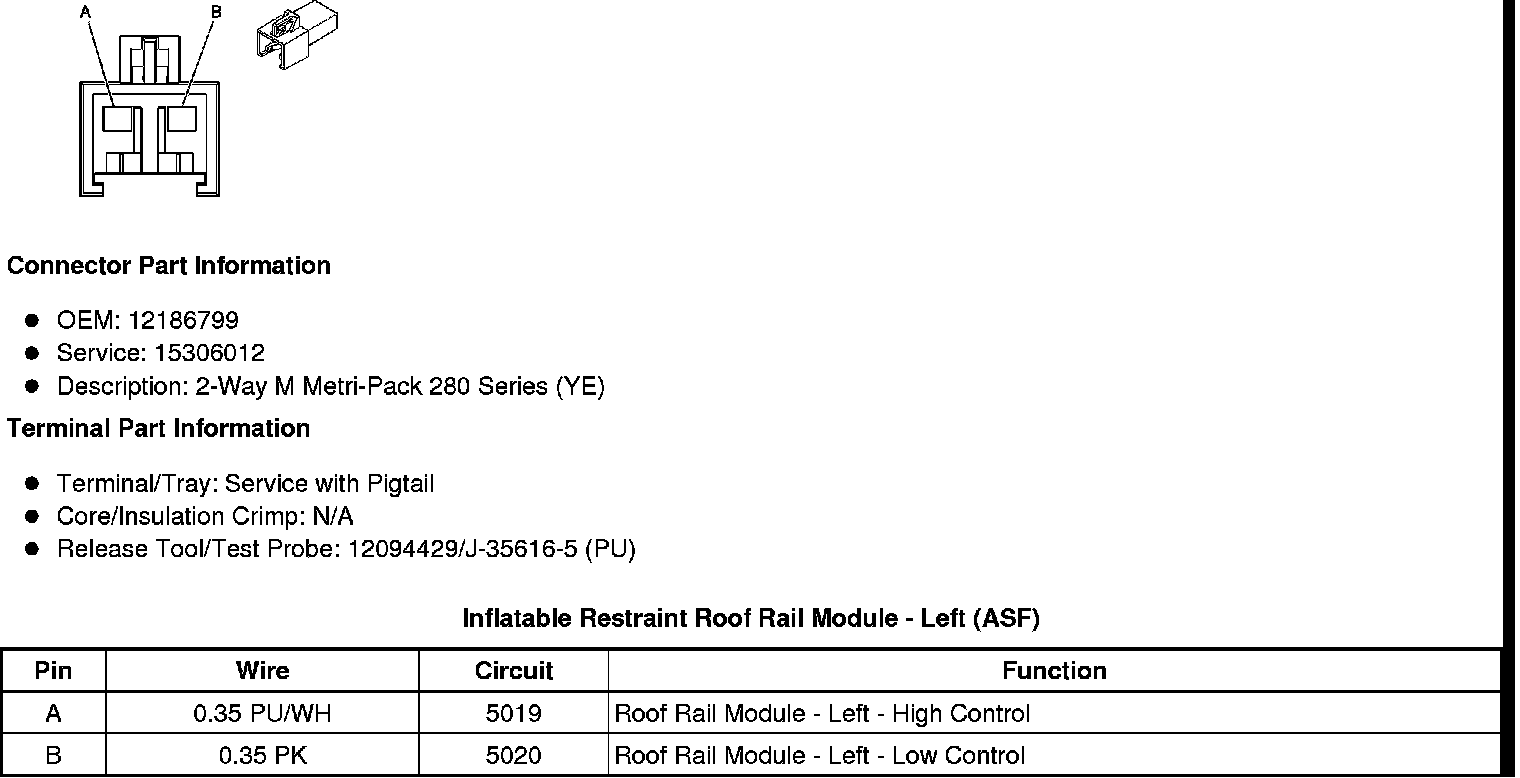

Inflatable Restraint Roof Rail Module - Left (ASF)

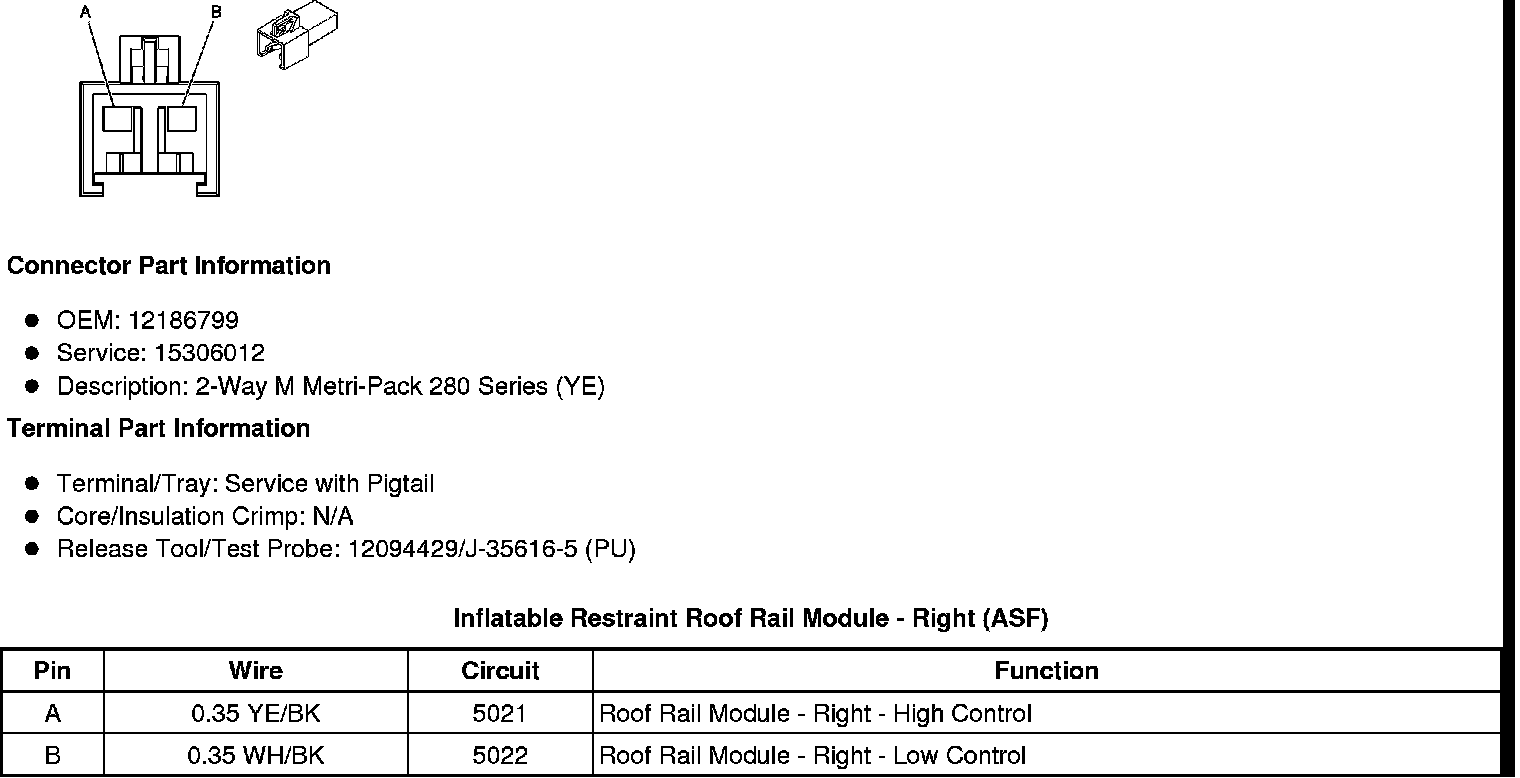

Inflatable Restraint Roof Rail Module - Right (ASF)

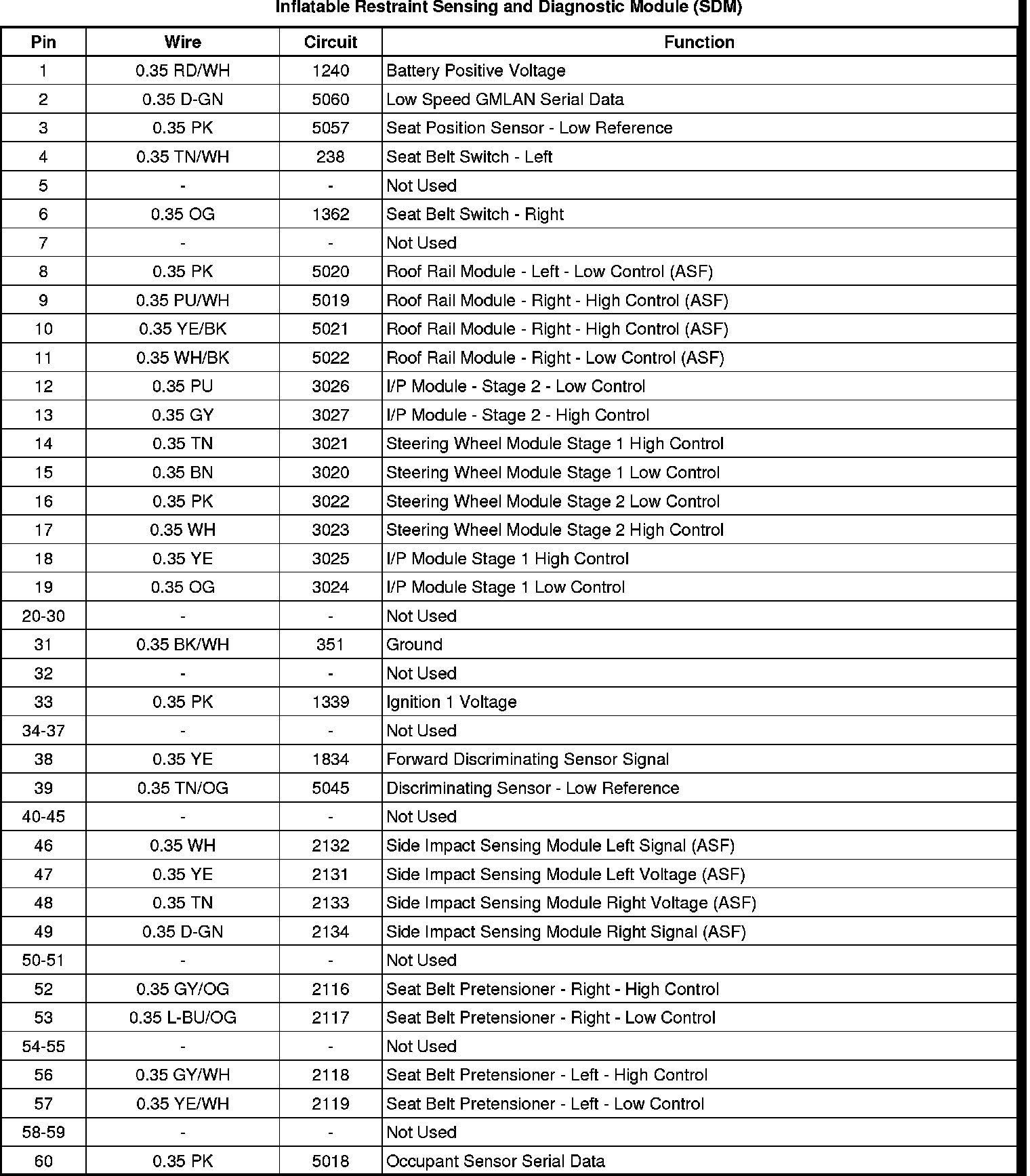

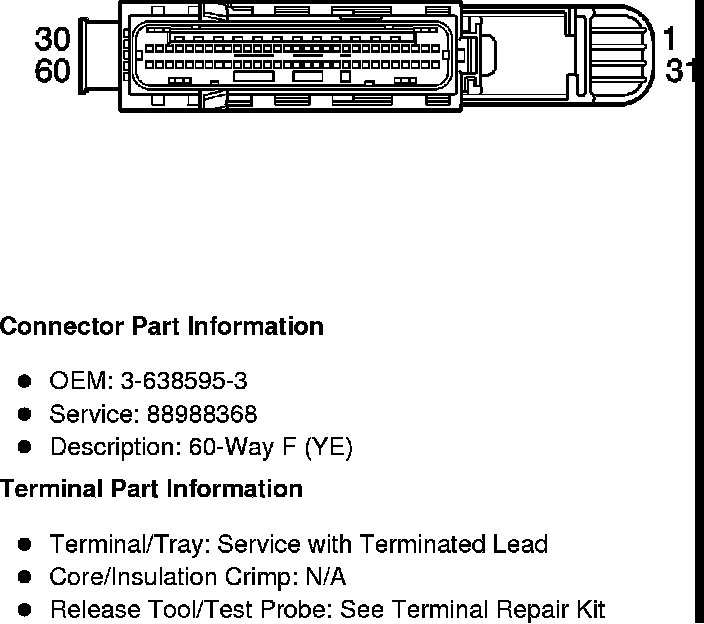

Inflatable Restraint Sensing and Diagnostic Module (SDM)
Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

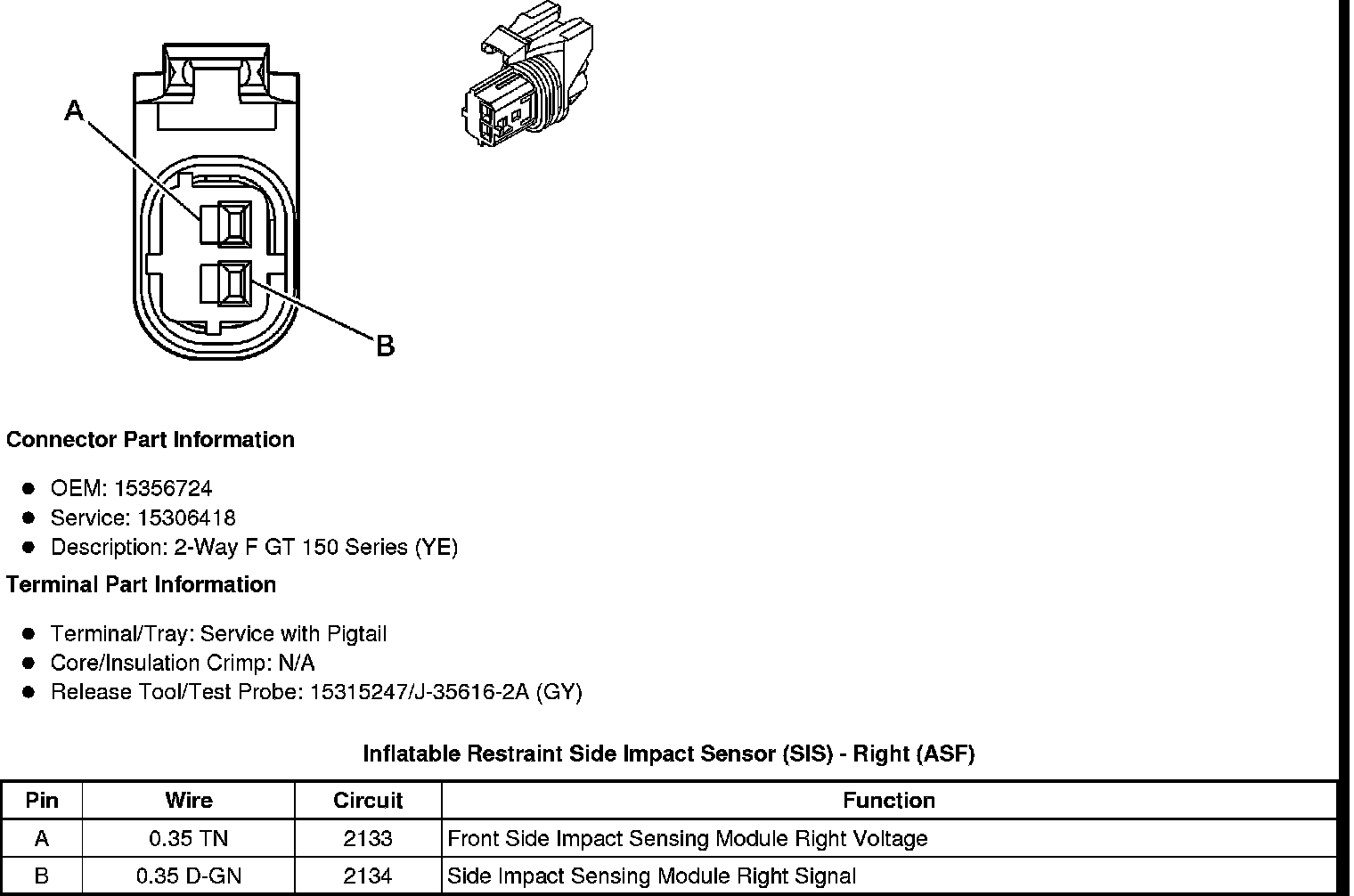

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)

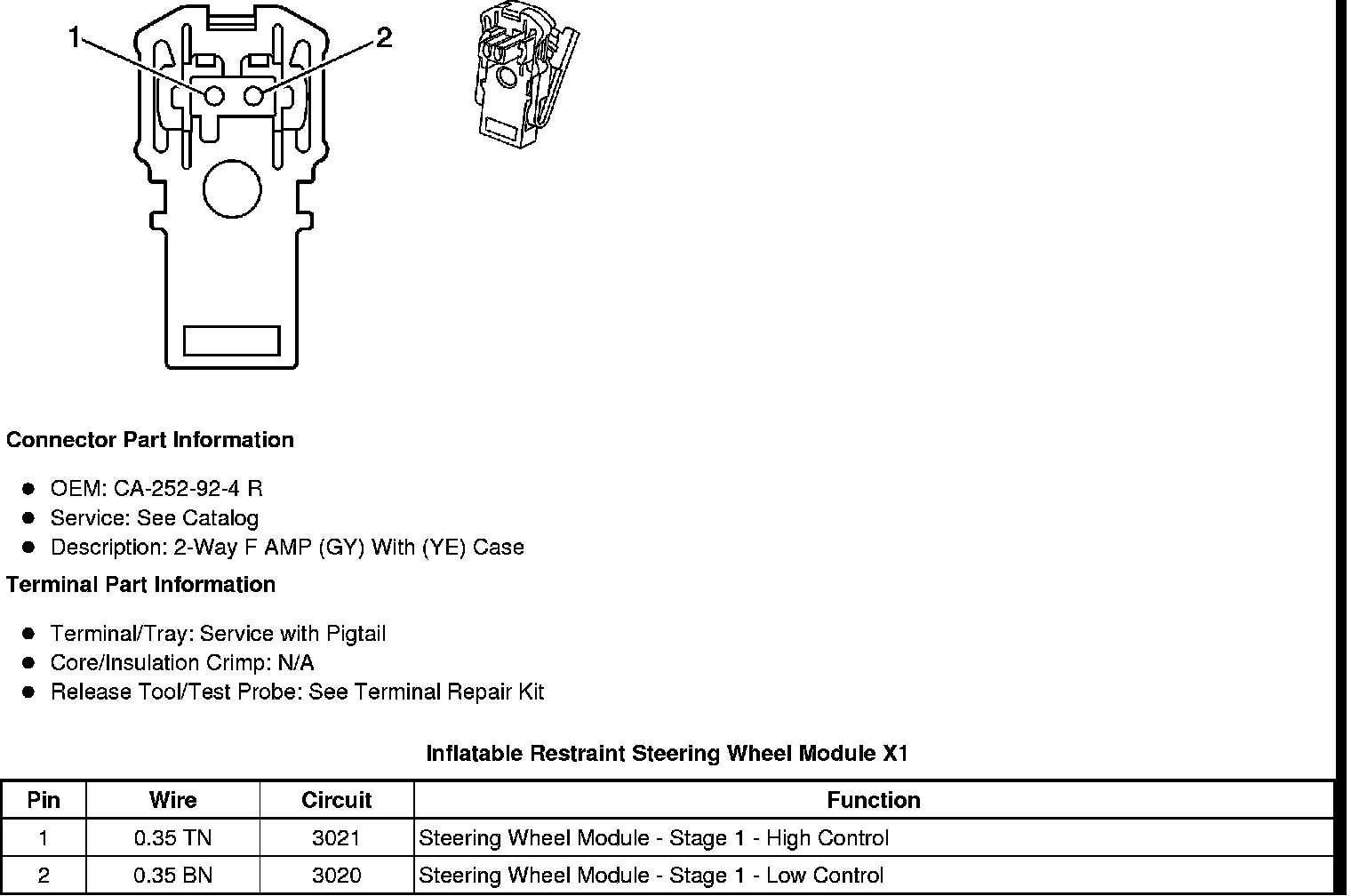

Inflatable Restraint Steering Wheel Module X1
Inflatable Restraint Steering Wheel Module X2

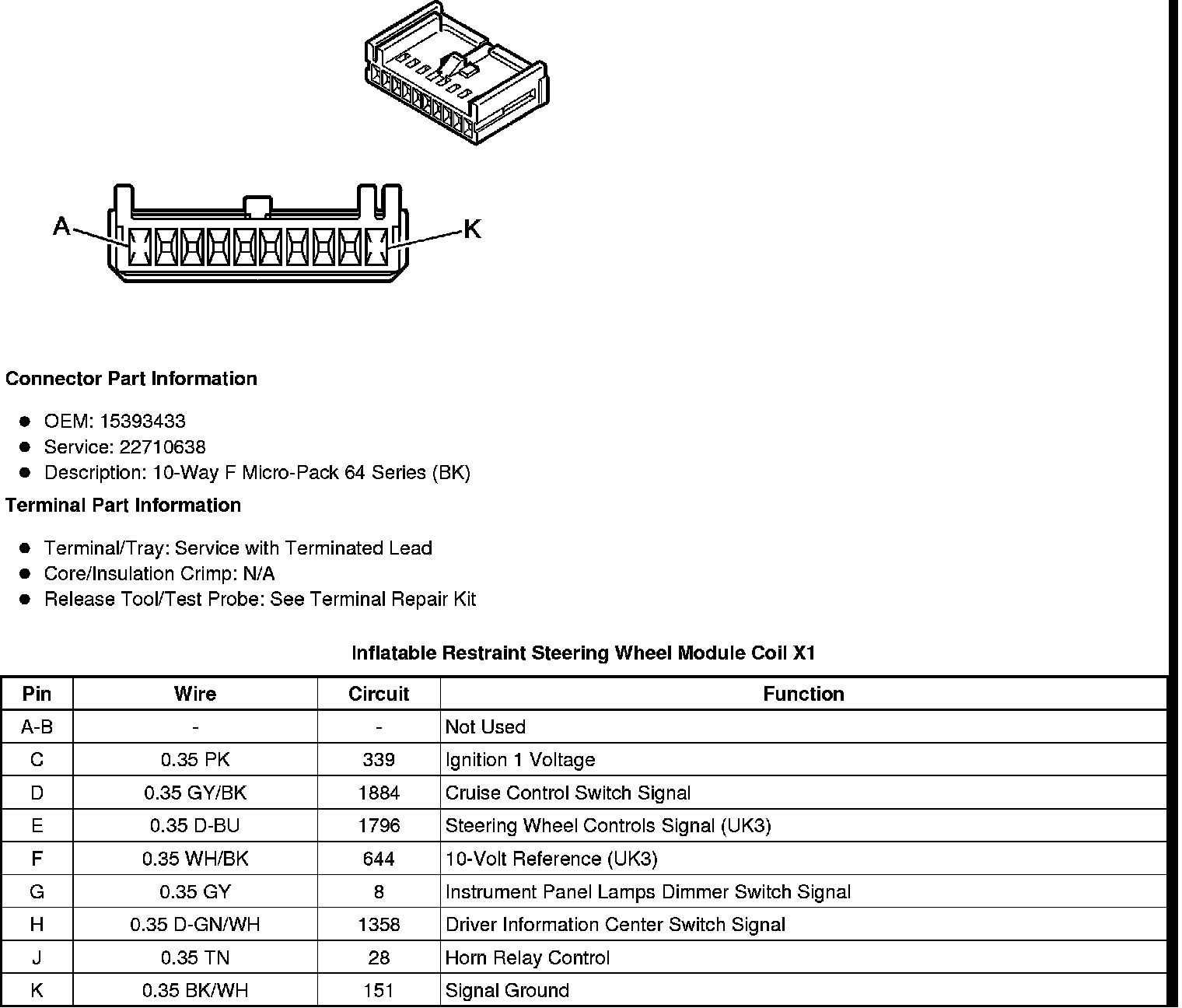

Inflatable Restraint Steering Wheel Module Coil X1

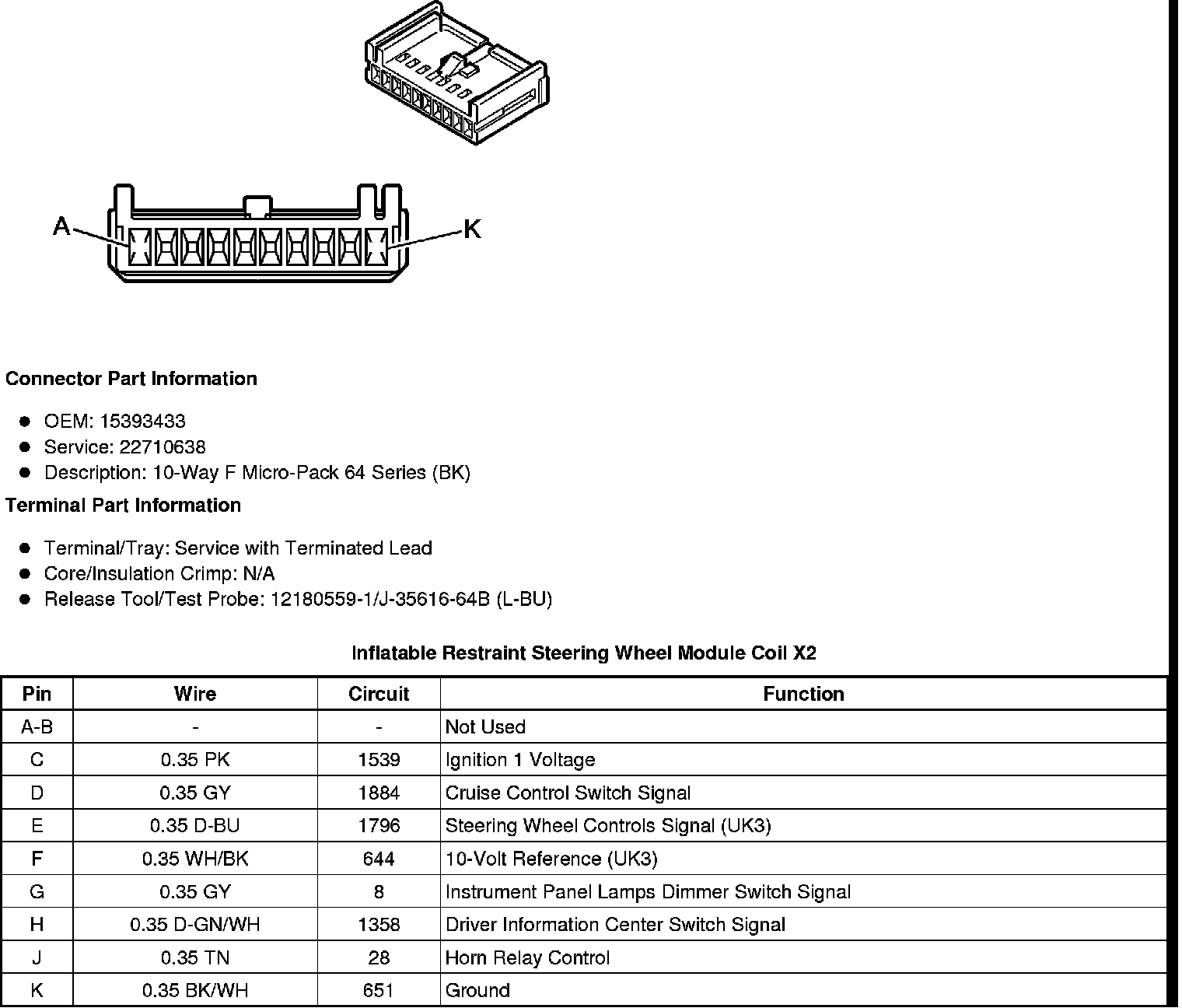

Inflatable Restraint Steering Wheel Module Coil X2

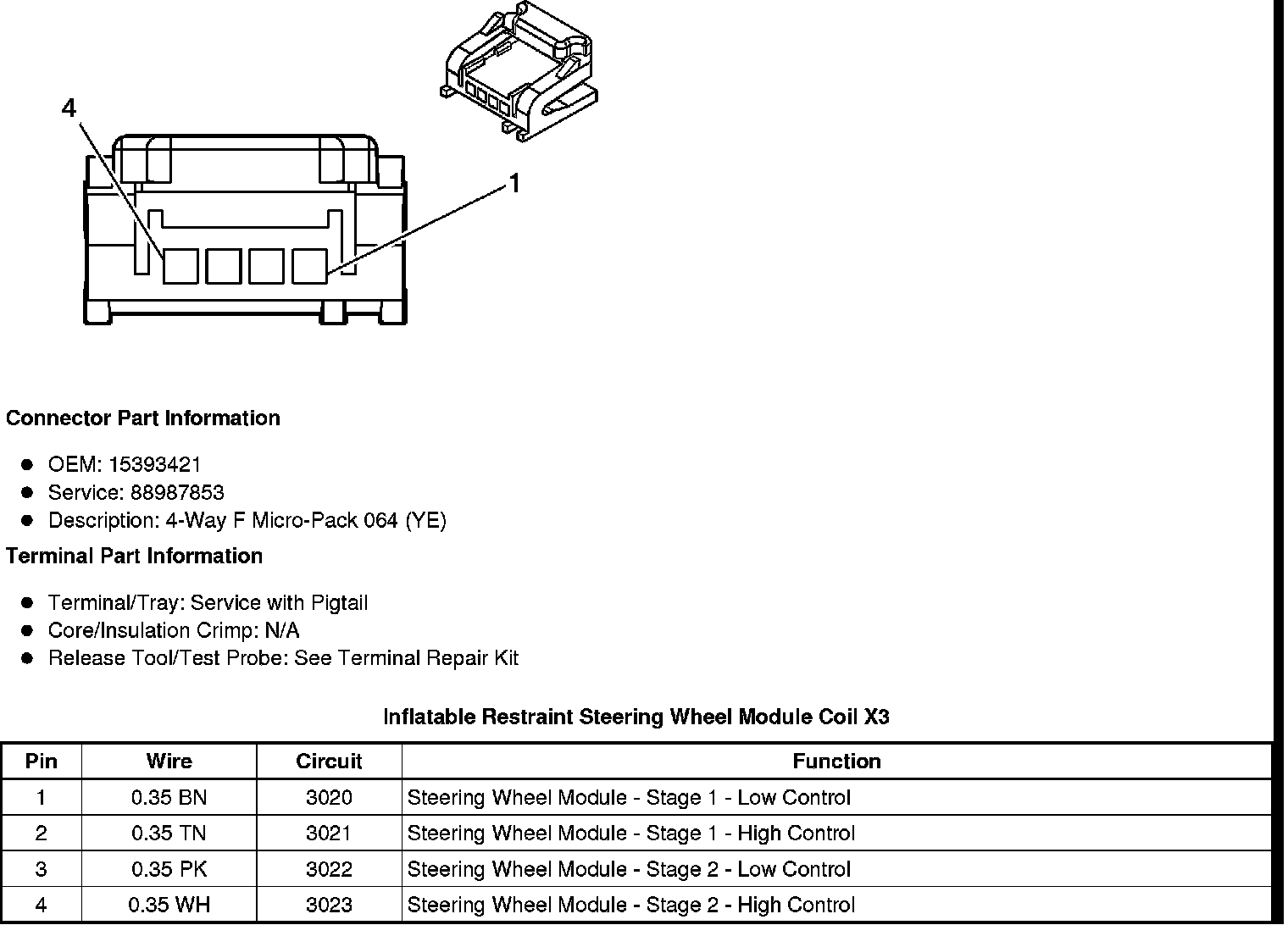

Inflatable Restraint Steering Wheel Module Coil X3

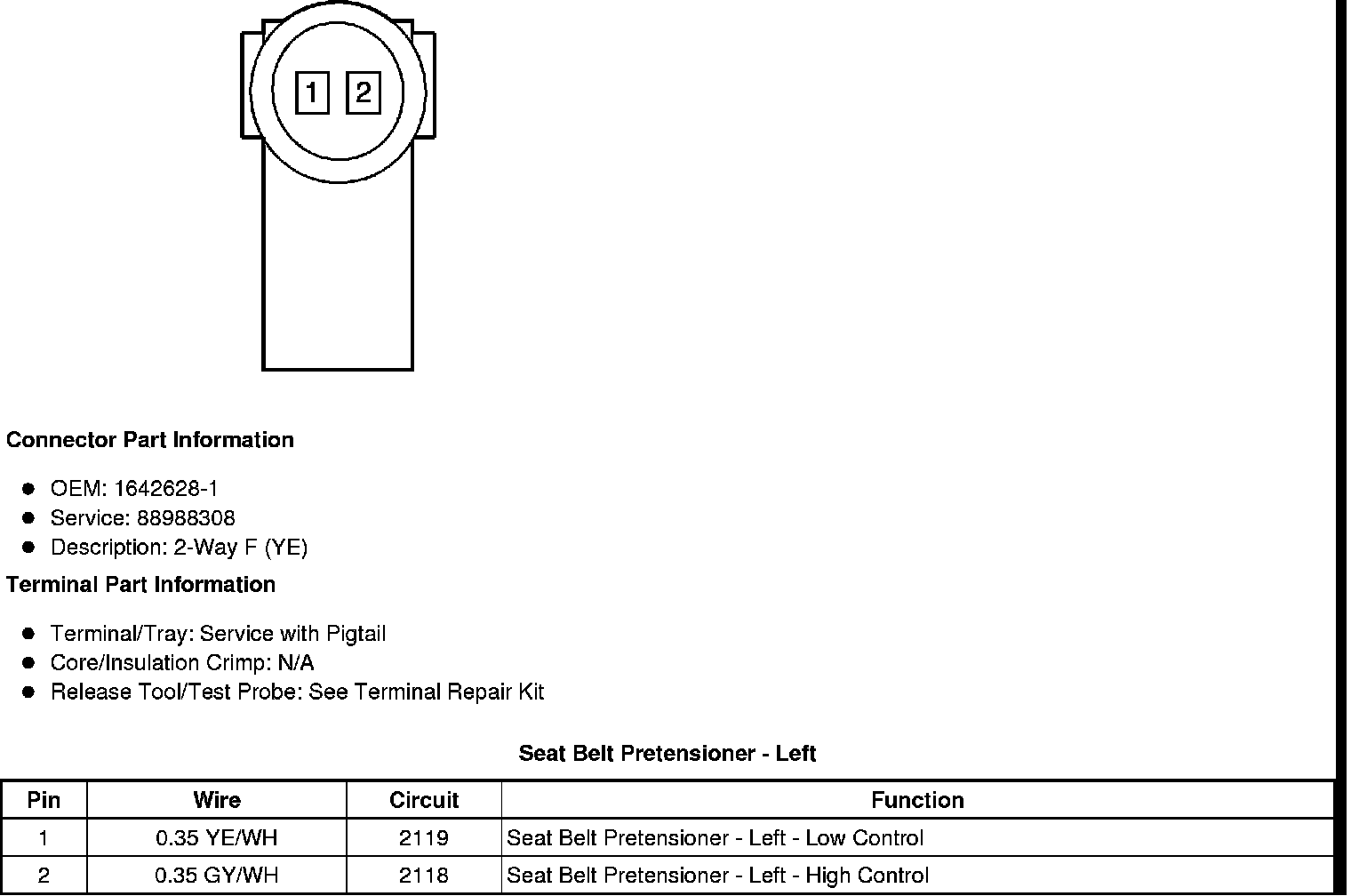

Seat Belt Pretensioner - Left

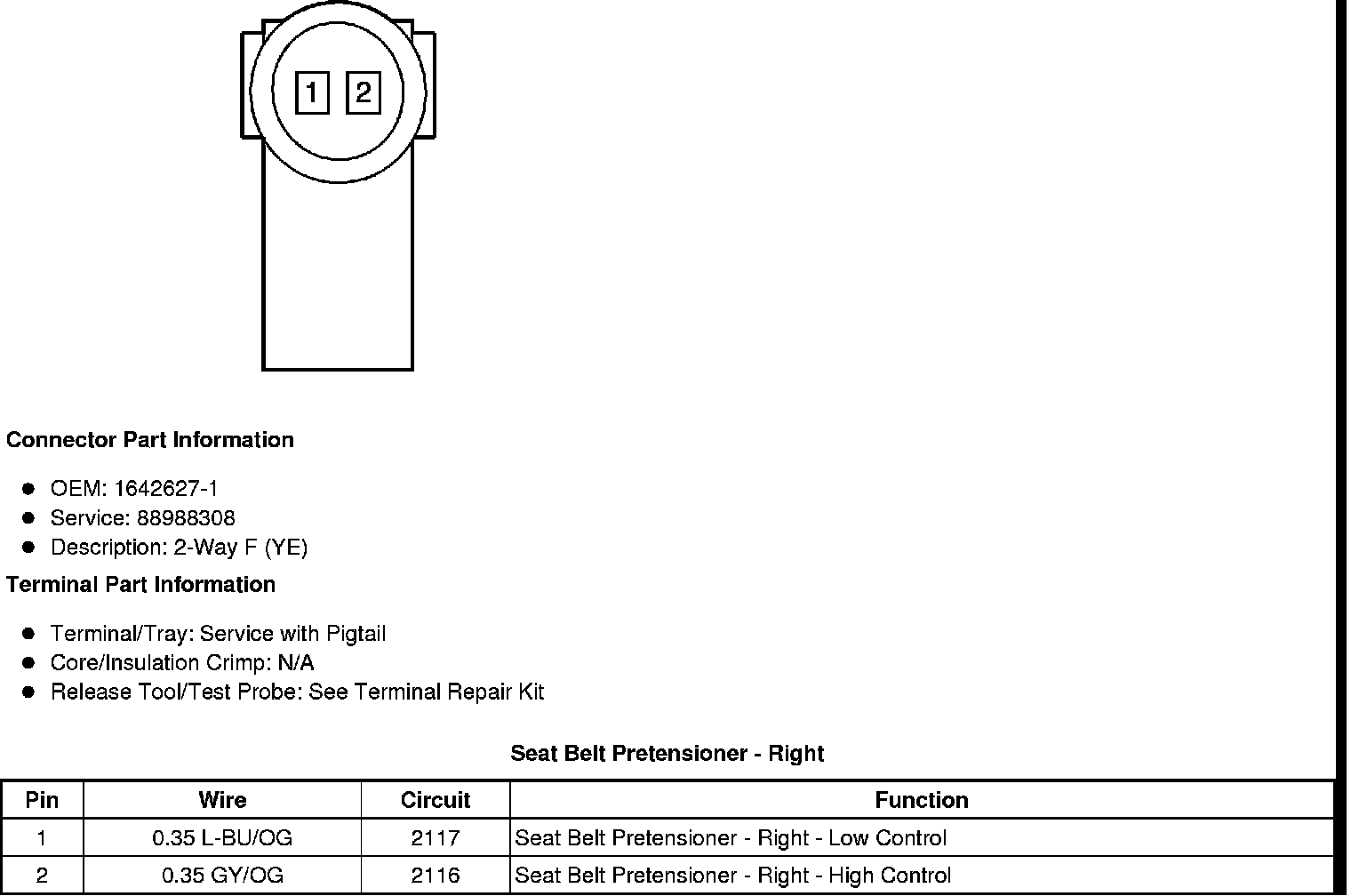

Seat Belt Pretensioner - Right
