Doors

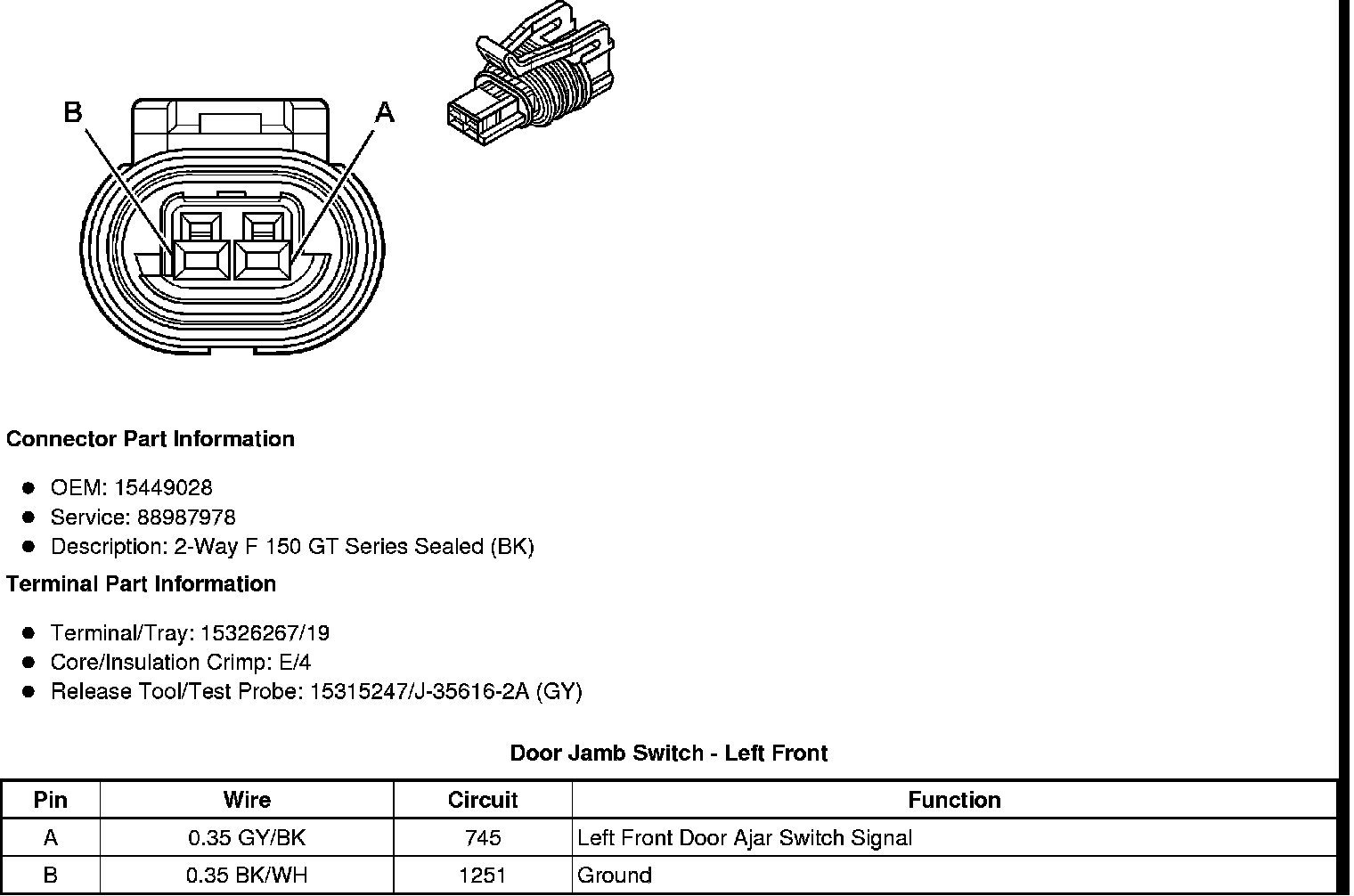

Door Jamb Switch - Left Front






Door Jamb Switch - Left Rear (without Panel Van)

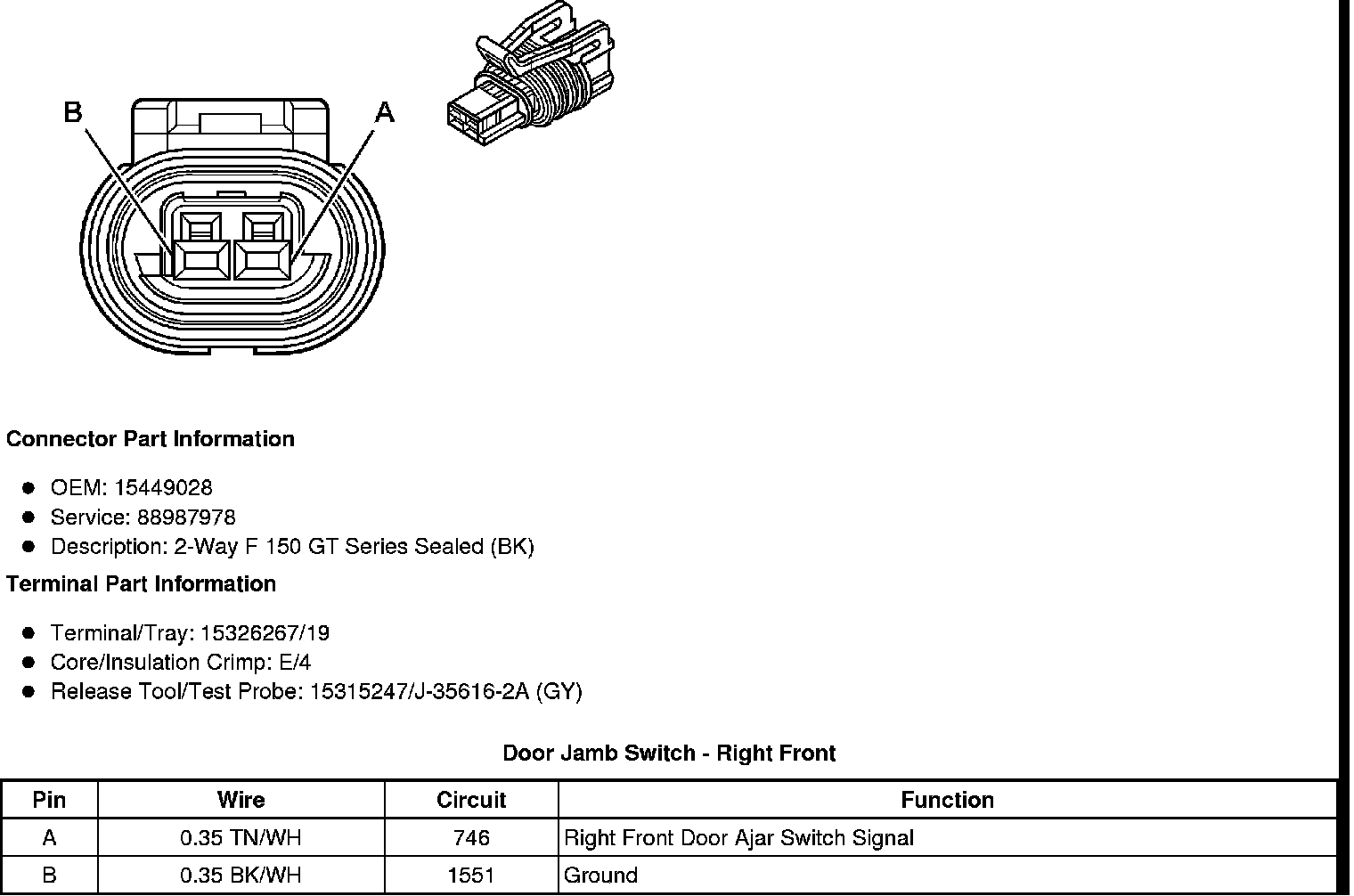

Door Jamb Switch - Right Front

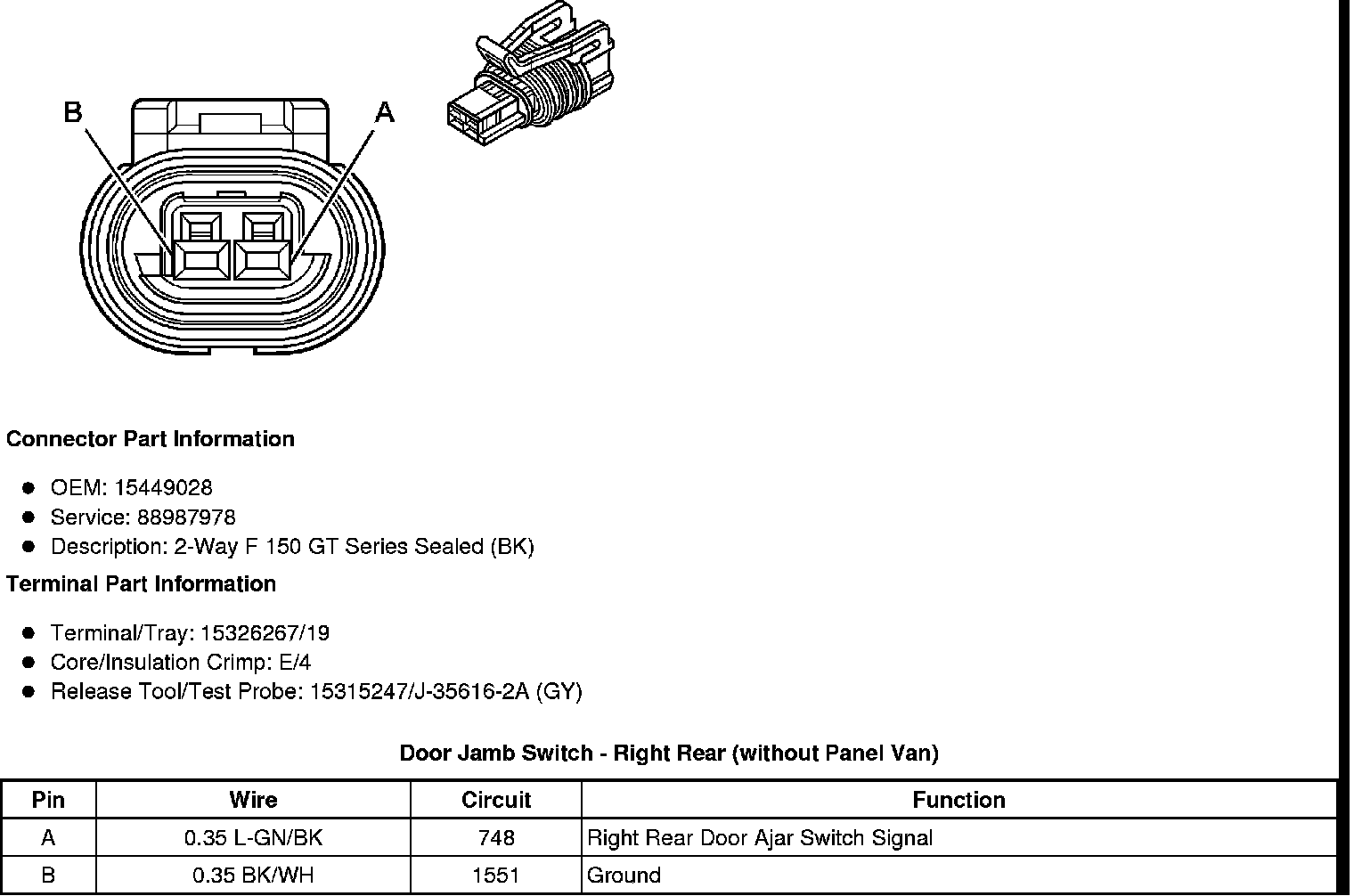

Door Jamb Switch - Right Rear (without Panel Van)

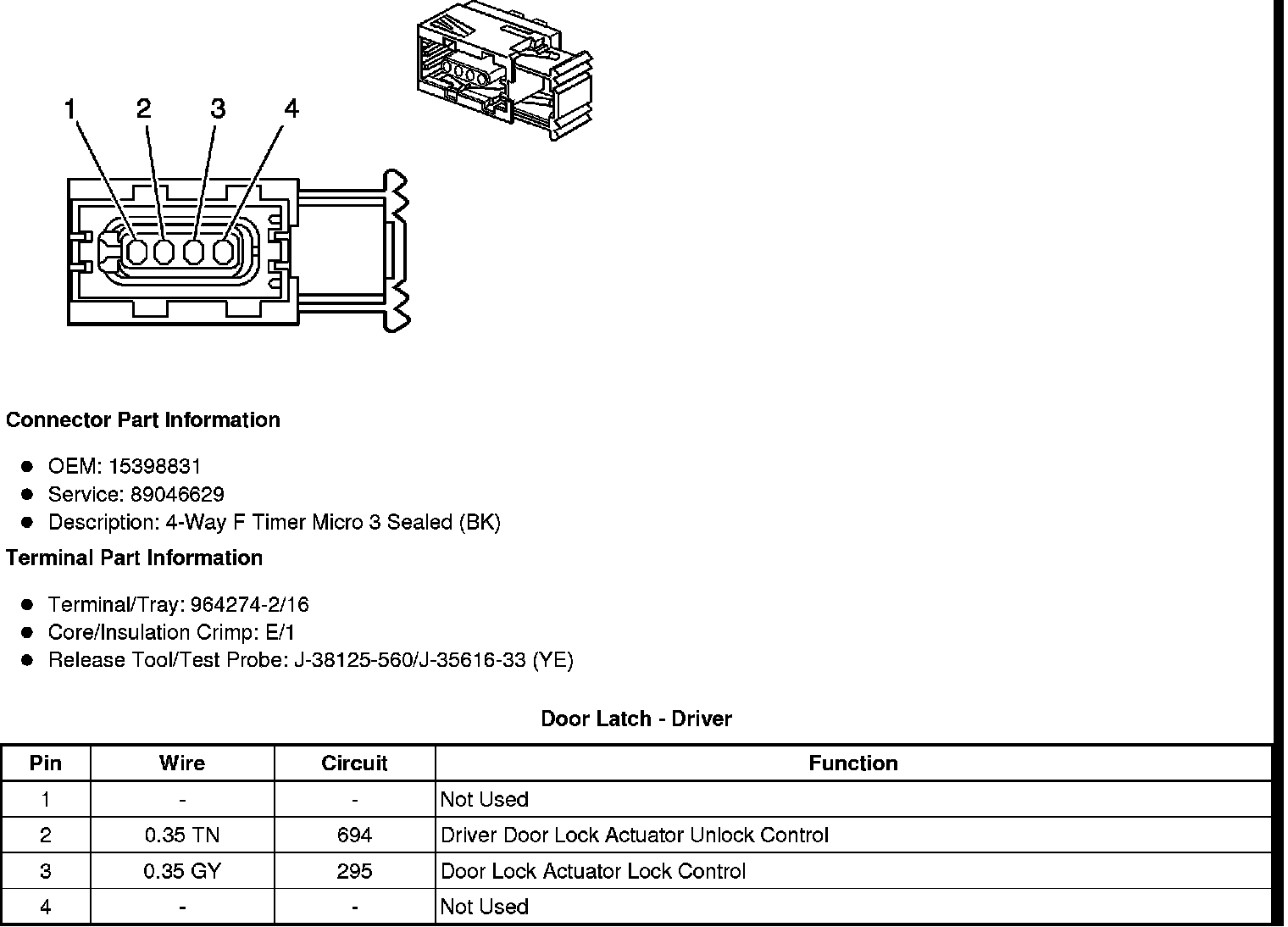

Door Latch - Driver






Door Latch - Left Rear (without Panel Van)

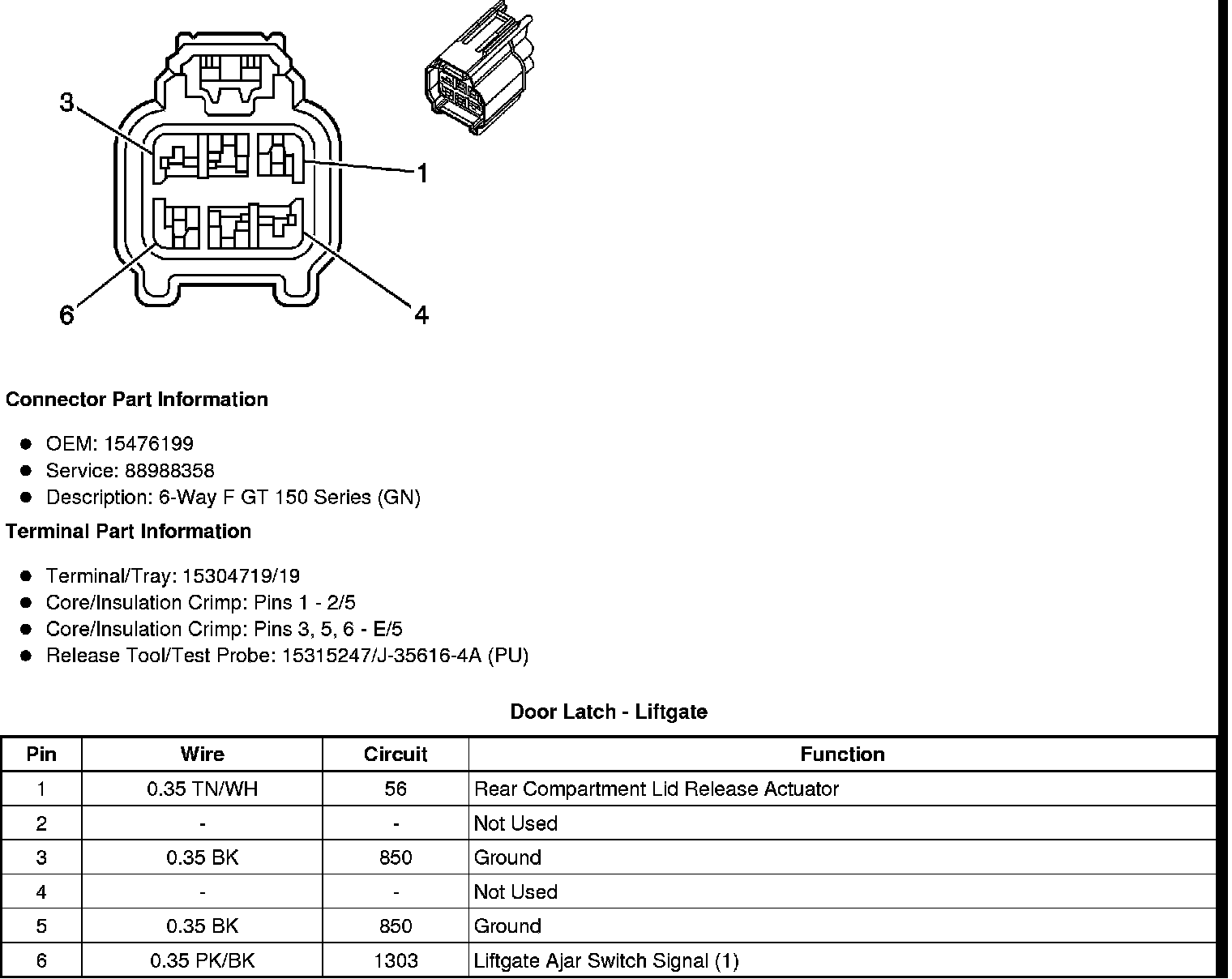

Door Latch - Liftgate

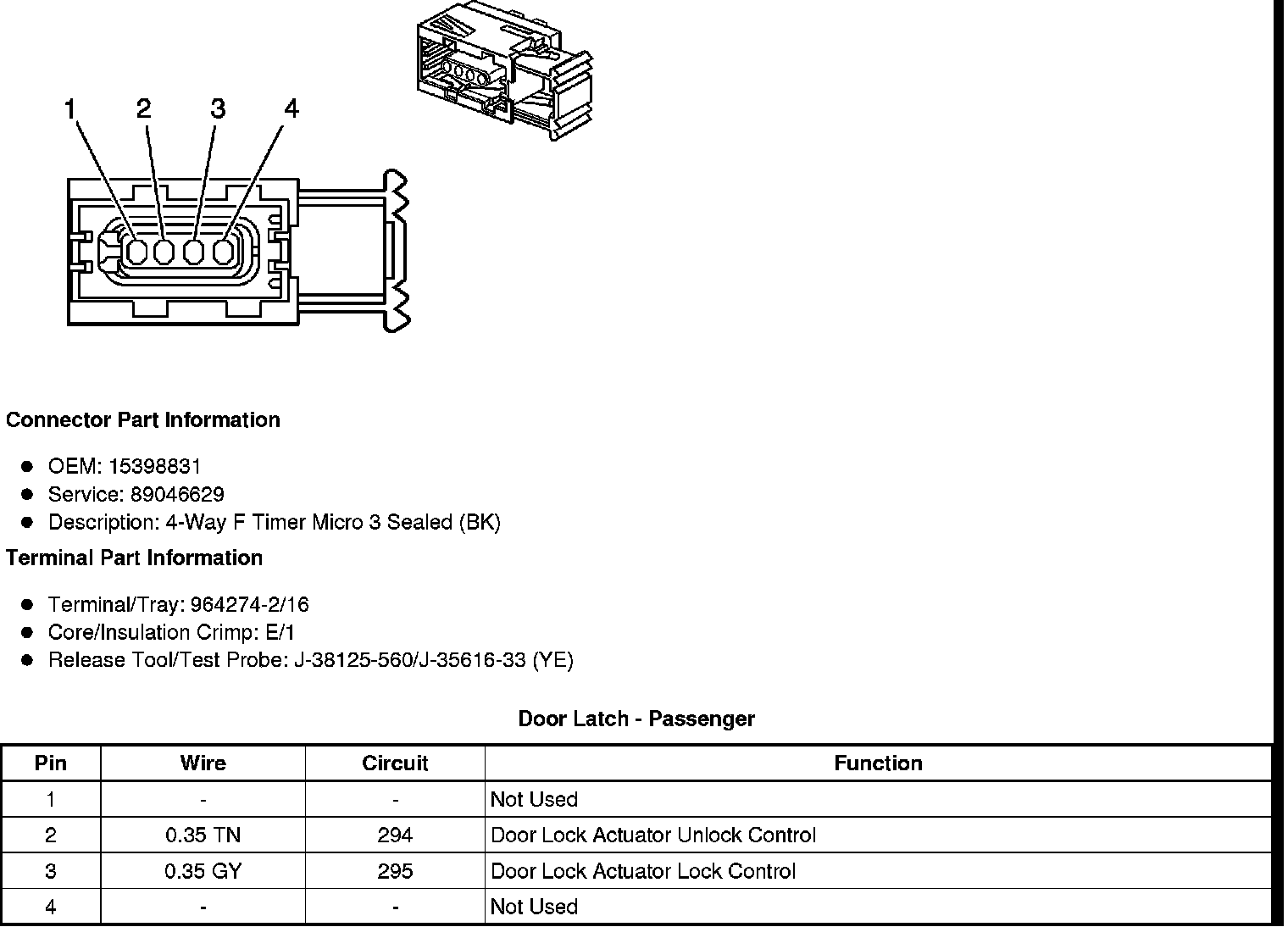

Door Latch - Passenger






Door Latch - Right Rear (without Panel Van)
